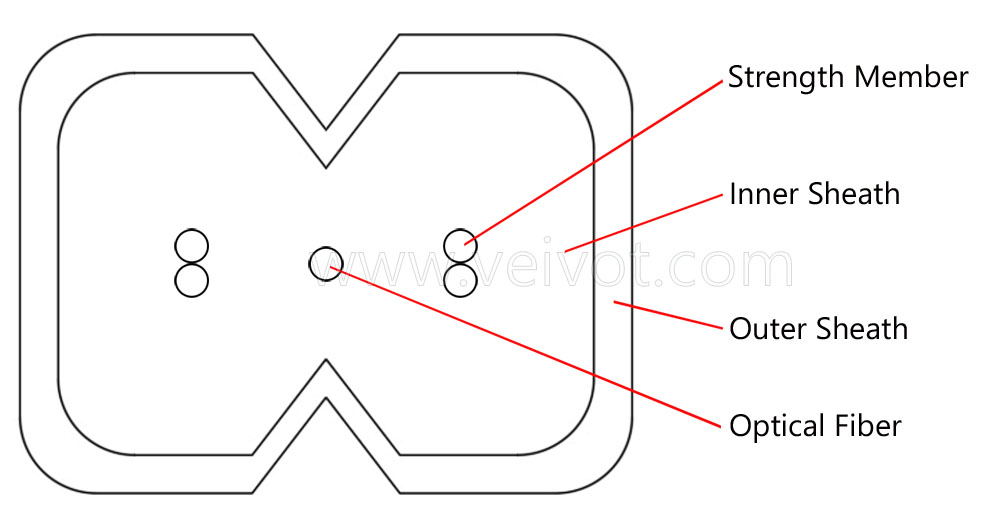

The optical fiber unit is located at the center. Four strength members are laid parallel on both sides of the cable and covered with a super-transparent invisible composite material sheath.
The revolutionary Thermal Adhesive Coating (TAC) fiber optic system provides seamless, fast, and flexible fiber optic cable installation solutions for FTTX applications, including Fiber to Home (FTTH), Fiber to Table (FTTD), and Fiber to Room (FTTR) in homes and businesses.
Features
Special low-bend-sensitivity fibre provides high bandwidth and excellent communication transmission property.
Novel flute design, easily strip and splice, simplify the installation and maintenance.
Simple structure, light weight and high practicability.
Bow-type Drop Cable Series.
Indoor And Outdoor Access Drop Cable.
Bow-type Drop Cable.
Cable Parameter
Item | Content | Value |
Optical Fiber | Core | 1 |
Type | G657A2 (B6a2), G657B3 (B6b3) | |
Diameter | 250um | |
Color | Transparent | |
Strength Member | Material | Transparent Non-metallic |
Diameter | 0.25mm | |
Quantity | 4 | |
Inner Sheath | Material | Nylon Anti-UV |
Color | Transparent | |
Diameter | 1.0(±0.1)*1.4(±0.1) | |
Outer Sheath | Material | Hot-melt adhesive |
Color | Transparent | |
Diameter | 1.2(±0.3)*1.6(±0.3) | |
Weight | ±10% | 2.6 |
