Description

Double Sheathed drop cable is a multi-purpose drop cable enabling simple, dast and reliable outdoor-indoor transitions. With a rugged and watertight construction, the double sheathed drop cable offers high mechanical performances. This optical cable is designed for artial roll-outs(spans up to 70m), but it can also be pulled into ducts, on several hundred meters.

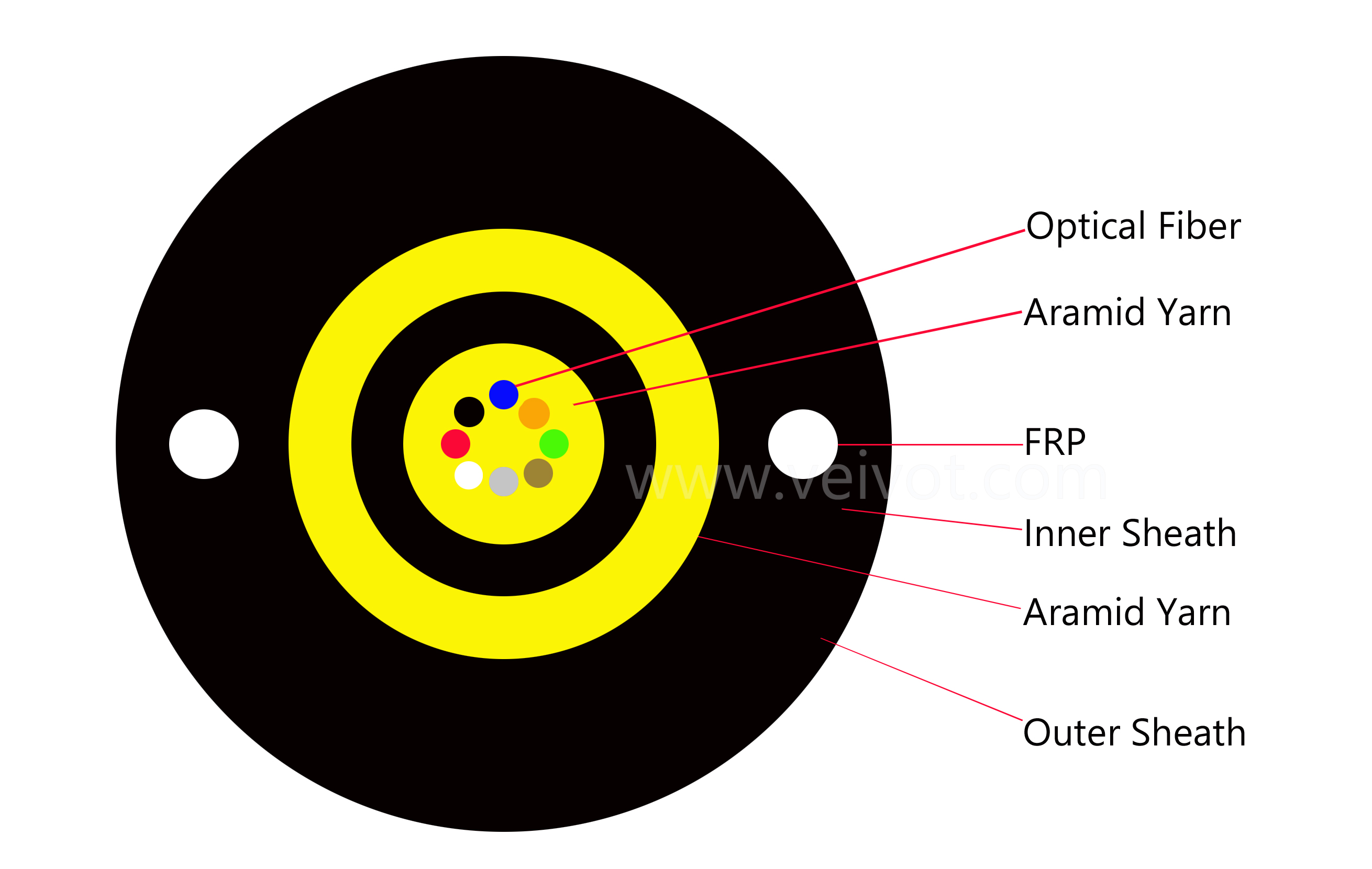

Offering a double sheathed construction, LSZH inner sheath, PE outer sheath. The drop cable presents two optional rip cords enabling to strip off the HDPE outer sheath in a couple of seconds. Thanks to this operation a Low Smoke Zero Halogen Flame Retardant drop cable can be then used for indoor applications.

No splice is thus required to make the transition between the outdoor optical drop and the indoor one. The cable enables the transmission of optical signal from an outdoor distribution point to a telecommunications outlet without weighing down the optical budget.

Application

• Applied in Duct, Aerial FTTx, Access installations;

• Access building cable in premises distribution system, especially Indoor or outdoor aerial access cabling;

• Adopted to core network;

• Access network;

• Fiber to the home;

• Optical communication equipment room;

• Optical distribution frame optical connection;

Optical Fiber Characteristics

Standard ITU-T G.657A

Technical Parameters
