Description

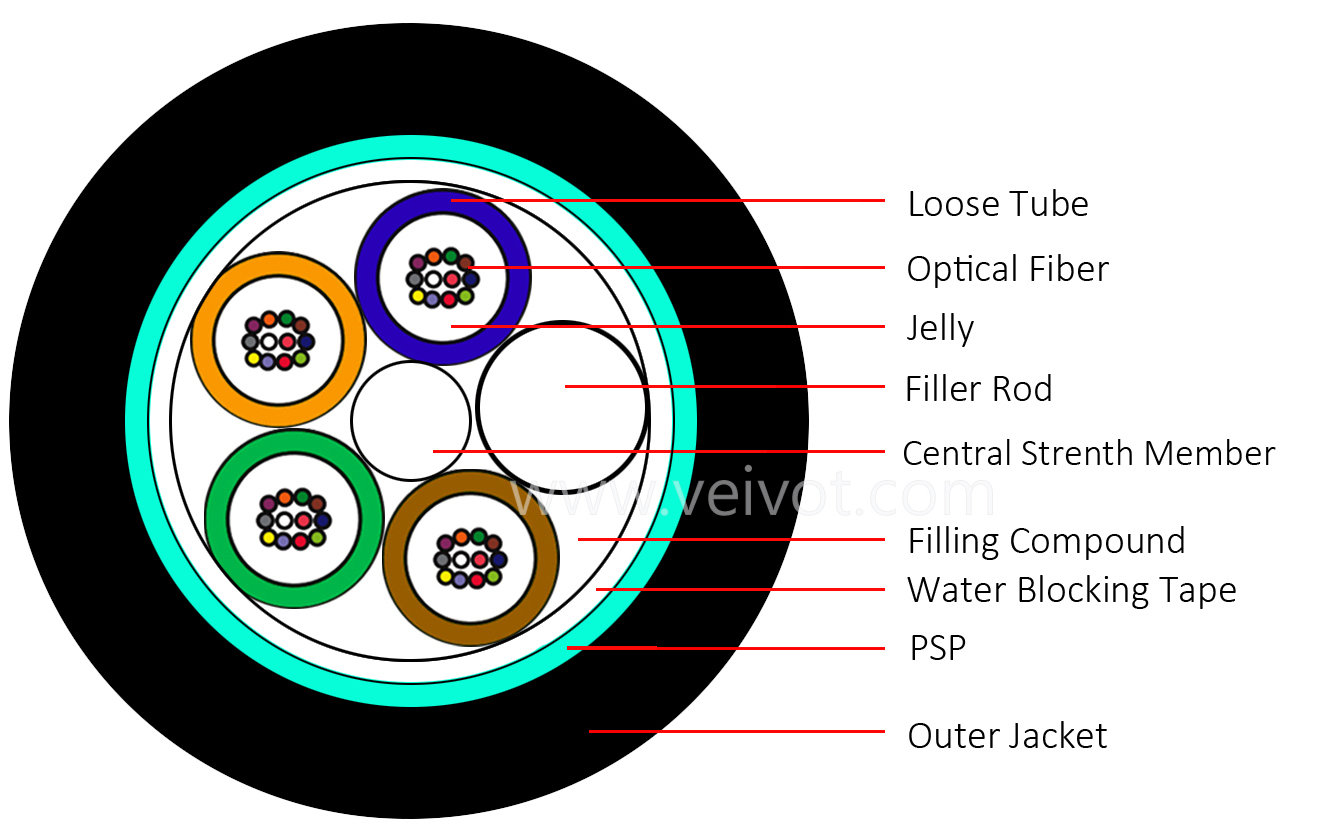

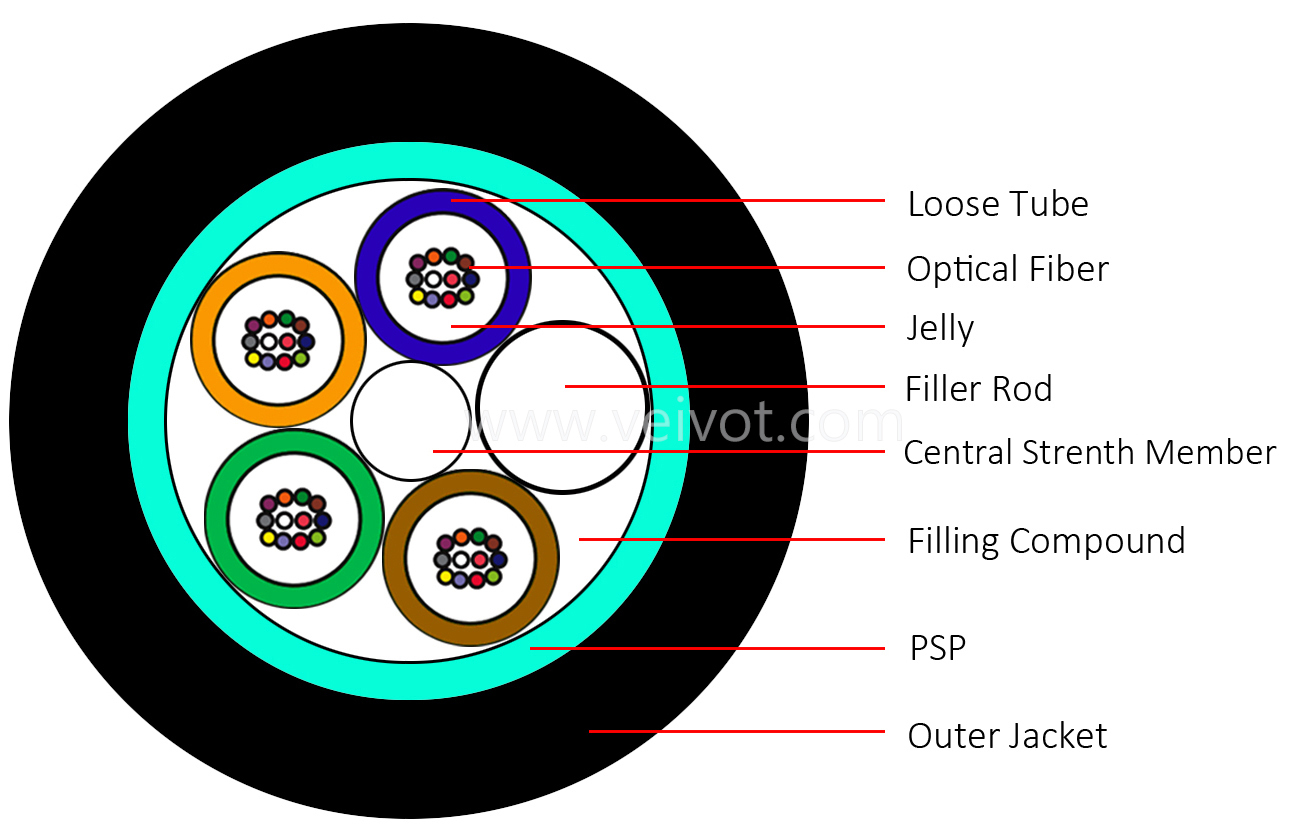

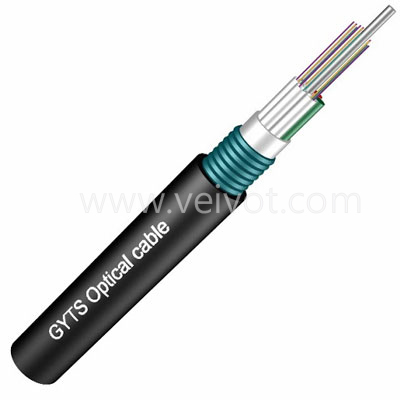

The structure of GY(F)TS optical fiber cable: 250um optical fibers are placed in loose tubes made of high modulus plastic. The loose tube is filled with waterproof filling compound. The center strength member is a steel wire or FRP (Fiber Reinforced Polymer), and for some optical cables with a number of cores, a layer of polyethylene (PE) needs to be extruded outside the steel wire or FRP. The loose tubes (and fillers) are stranded around the central strength component to form a compact circular core, and the gaps inside the cable core are filled with waterproof fillers. Then, a layer of PSP (double-sided plastic coated steel tape) is longitudinally wrapped and extruded into a PE sheath to form a cable.

Features

• Fiber counts: 2-144 fibers

• Fiber Type: G652D; G657A1; G657A2; G657B3; G655C; OM1; OM2; OM3; OM4; OM5

• Outer jacket: MDPE; HDPE

• Excellent mechanical and temperature properties are guaranteed by precise excess fibers

• The key protection of fiber is based on excellent hydrolysis resistance

• It has excellent compression resistance and flexibility

• PSP enhancing misture-proof performance

• It has good UV resistance, PE sheath, and easy installation

Application

• Outdoor duct and aerial

Structure parameters of optical cable

Mechanical & Environmental Performance
