Description

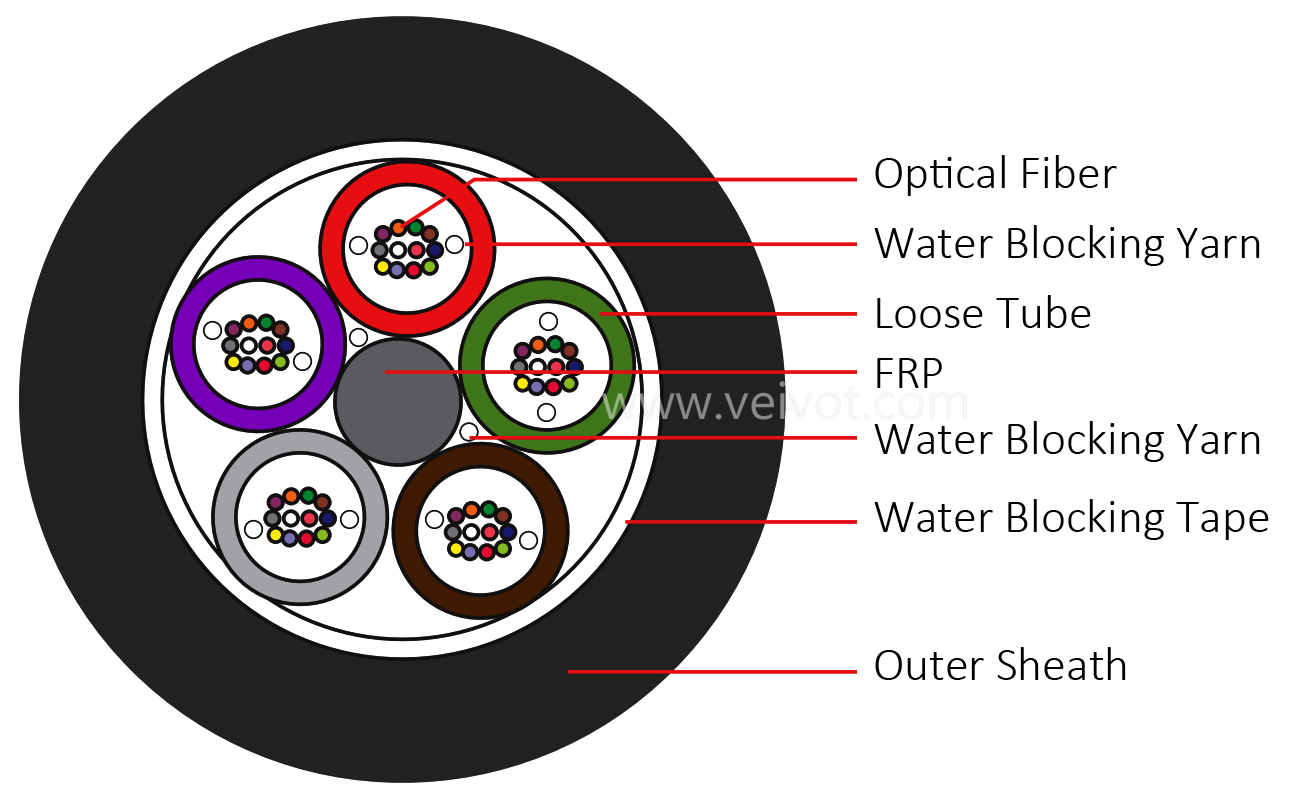

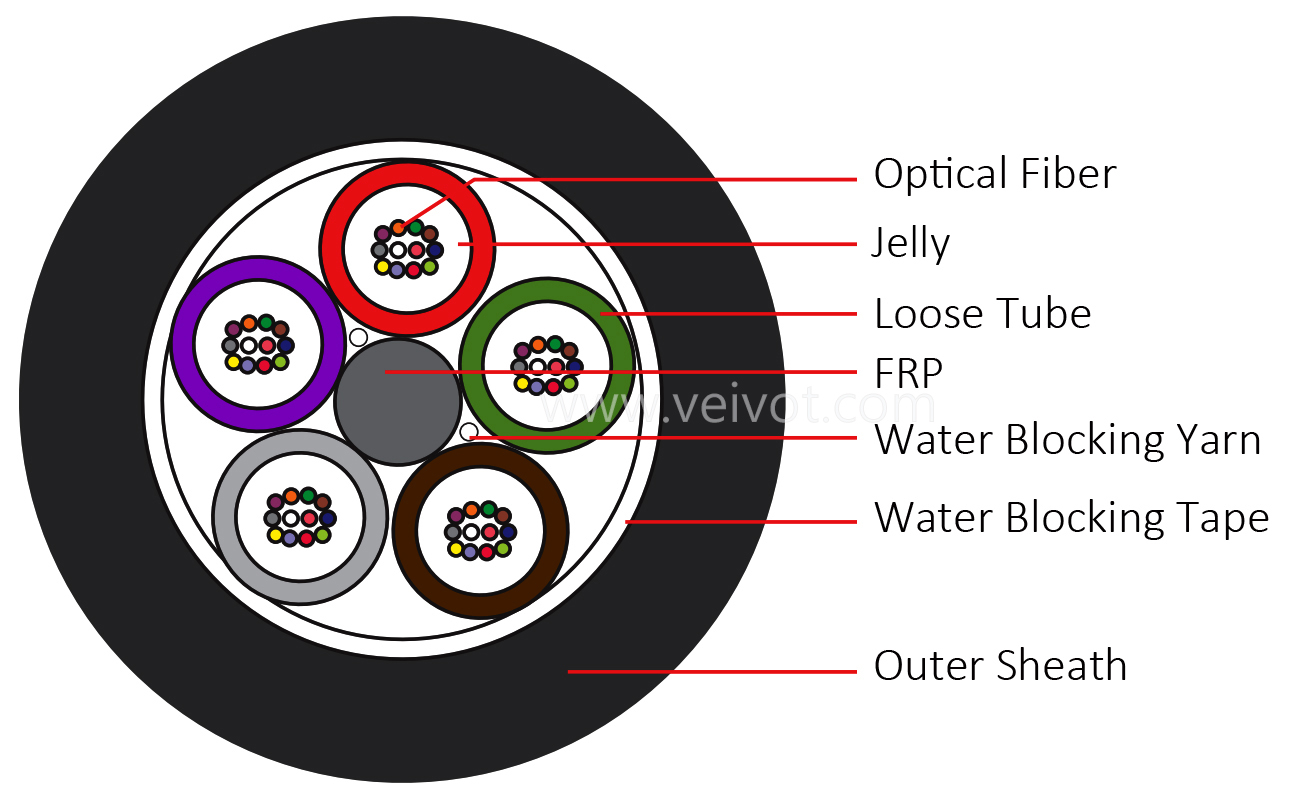

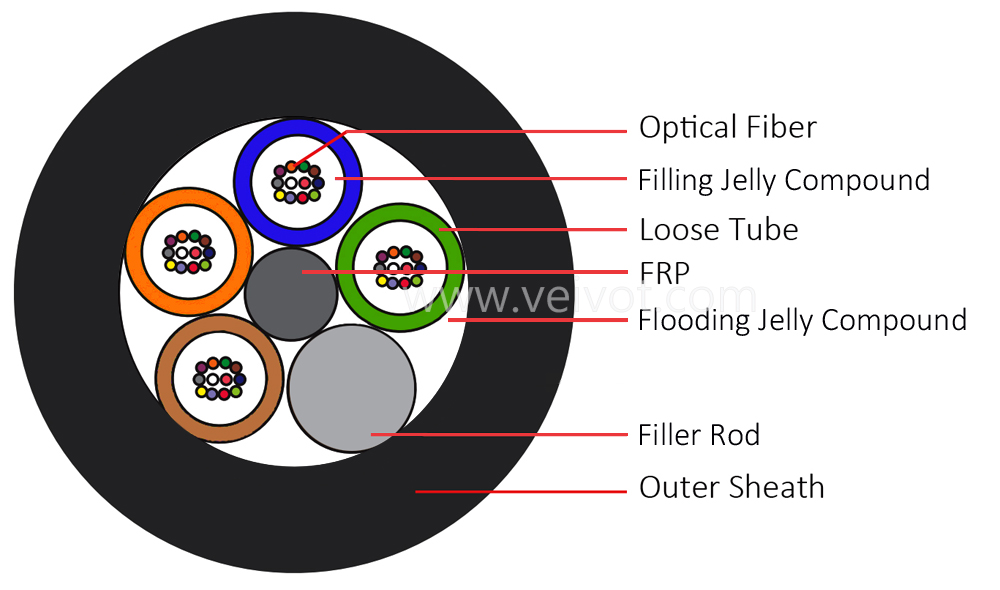

The structure of GYFTY (non-metallic reinforcement, loose tube twisted filling, polyethylene sheathed outdoor communication optical cable) optical cable is to sheath single-mode or multi-mode optical fibers into high modulus plastic, which is filled with loose waterproof compounds. The center of the cable core is a non-metallic reinforced core (FRP). For certain fiber optic cables, a layer of polyethylene (PE) is extruded outside the non-metallic reinforcement core, or non-metallic reinforcement yarn is added to the cable core. The loose tube (and filling rope) is wrapped around the center reinforcement core to form a compact circular cable core. The gaps in the cable core are filled with water blocking compounds and polyethylene sheaths.

Features

• Fiber counts: 2-144 fibers

• Fiber Type: G652D; G657A1; G657A2; G657B3; G655C; OM1; OM2; OM3; OM4; OM5

• Outer jacket: MDPE; HDPE

• Excellent mechanical and temperature properties are guaranteed by precise excess fibers.

• The key protection of fiber is based on excellent hydrolysis resistance.

• It has excellent compression resistance and flexibility.

• It has good UV resistance, PE sheath, and easy installation.

Application

• Outdoor duct and aerial

Structure parameters of optical cable

Mechanical & Environmental Performance
