Description
Multi-tube armored GYTW fiber optical cable is highly praised for its excellent performance in long-distance symmetrical interactions. In fact, this type of fiber optic cable plays an important role in the telecommunications industry and is highly recommended by many technical personnel.
Features
Fiber counts: 4-144 fibers
Fiber Type: G652D; G657A1; G657A2; G655C; OM1; OM2; OM3; OM4; OM5
Outer jacket: MDPE; HDPE
Excellent mechanical and temperature properties are guaranteed by precise excess fibers.
The key protection of fiber is based on excellent hydrolysis resistance.
It has excellent compression resistance and flexibility.
PSP enhances the compression resistance, impact resistance, and moisture resistance of the cable.
Two parallel steel wires ensure tensile strength.
It has good UV resistance, PE sheath, and easy installation.
Application
Outdoor duct, aerial and direct buried

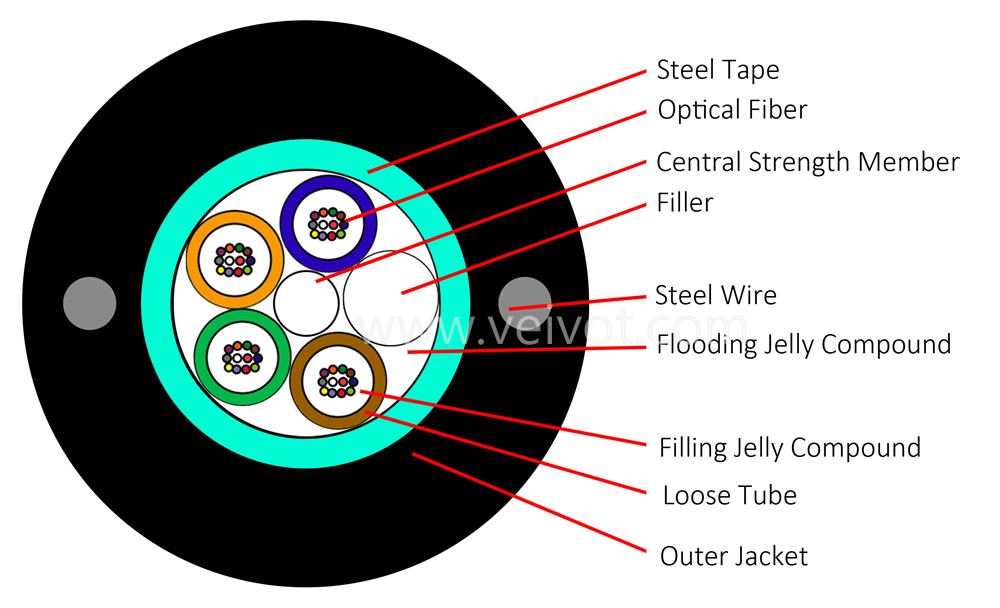

Structure parameters of optical cable
Item | Contents | Unit | Parameters | ||||
Fiber | Count | / | 6 | 12 | 24 | 48 | 72 |
Central Strength Member | Material | / | Steel Wire | ||||
Loose Tube | Material | / | PBT | ||||
Color | blue, orange, green, brown, grey, white | ||||||
Water Blocking | Material | / | Flooding Jelly Compound | ||||
Armor | Material | / | Corrugated Steel Tape | ||||
Strength Member | Material | / | Steel Wire | ||||
Outer Jacket | Material | / | PE | ||||
Color | / | Black | |||||
Cable Diameter | ±0.5 | mm | 9.3 | 9.3 | 9.3 | 10 | 10.5 |
Cable Weight | ±10% | kg/km | 95 | 95 | 98 | 115 | 125 |
Mechanical & Environmental Performance
Item | Contents | Unit | Parameters |
Max. Tensile Strength | Short term | N | 2700 |
Long term | N | 1000 | |
Max. Crush | Short term | N/100mm | 1000 |
Long term | N/100mm | 300 | |
Min. Bending Radius | Operation | mm | 10 times of cable diameter |
Installation | mm | 20 times of cable diameter | |
Applicable Temperature Range | Operation | ℃ | -40 ~ +70 |
Installation | ℃ | -20 ~ +60 | |
Storage & Shipping | ℃ | -40 ~ +70 |
