Description

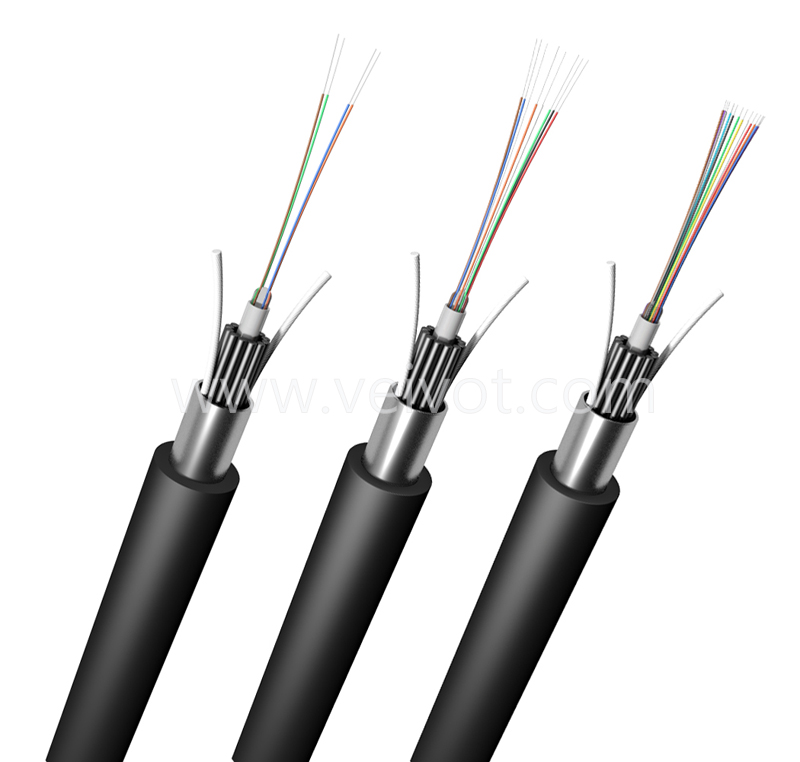

VEIVOT GYXTA Fiber Optical Cable is a loose tube made of high modulus polyester material, which is filled with waterproof compound, and is made of single-mode or multi-mode optical fibers. Loose tube for external use is a layer of steel wire armor layer longitudinally wrapped, with water blocking material and wrapping layer added to ensure the compactness and longitudinal water blocking of the optical cable. After placing an Aluminum Polyethylene Laminate (APL), a polyethylene (PE) sheath is extruded to form the cable.

Features

• Fiber counts: 2 ~ 24 fibers

• Fiber Type: G652D; G657A1; G657A2; G657B3; G655C; OM1; OM2; OM3; OM4; OM5

• Outer jacket: MDPE; HDPE

• Excellent mechanical and temperature properties are guaranteed by precise excess fibers.

• The key protection of fiber is based on excellent hydrolysis resistance.

• It has excellent compression resistance and flexibility.

• APL enhances the compression resistance, impact resistance, and moisture resistance of the cable.

• The steel wires ensure tensile strength.

• It has good UV resistance, PE sheath, small diameter, light weight, and easy installation.

Application

• Outdoor duct and direct buried

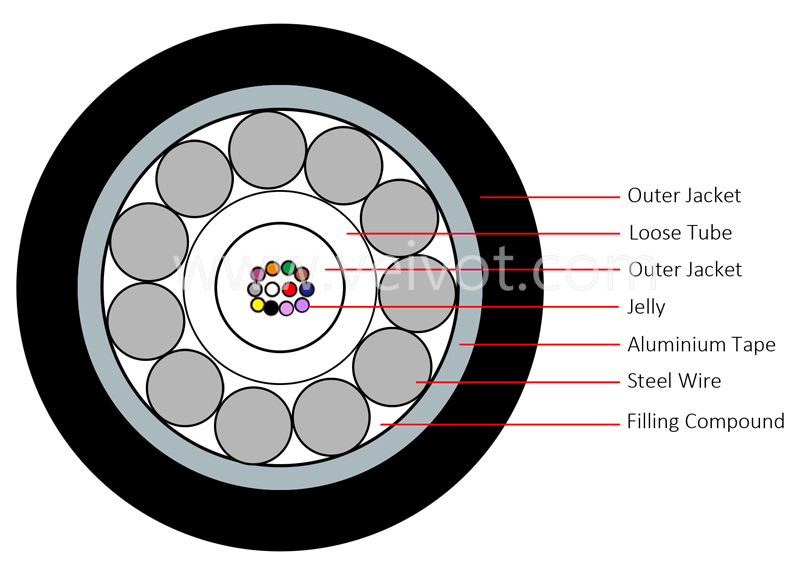

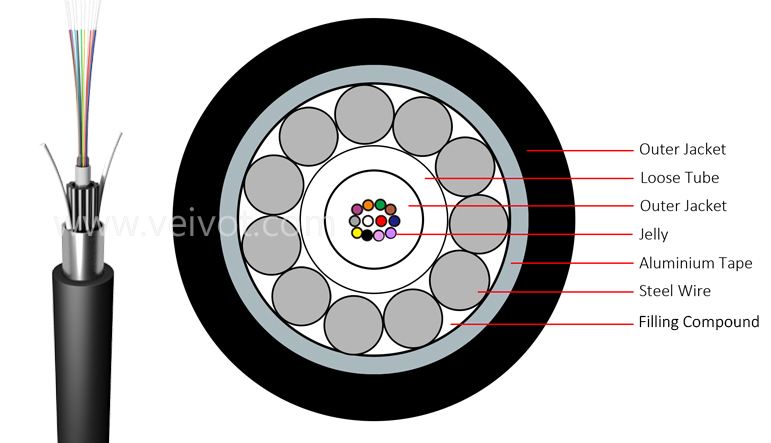

Structure parameters of optical cable

Mechanical & Environmental Performance
