Description

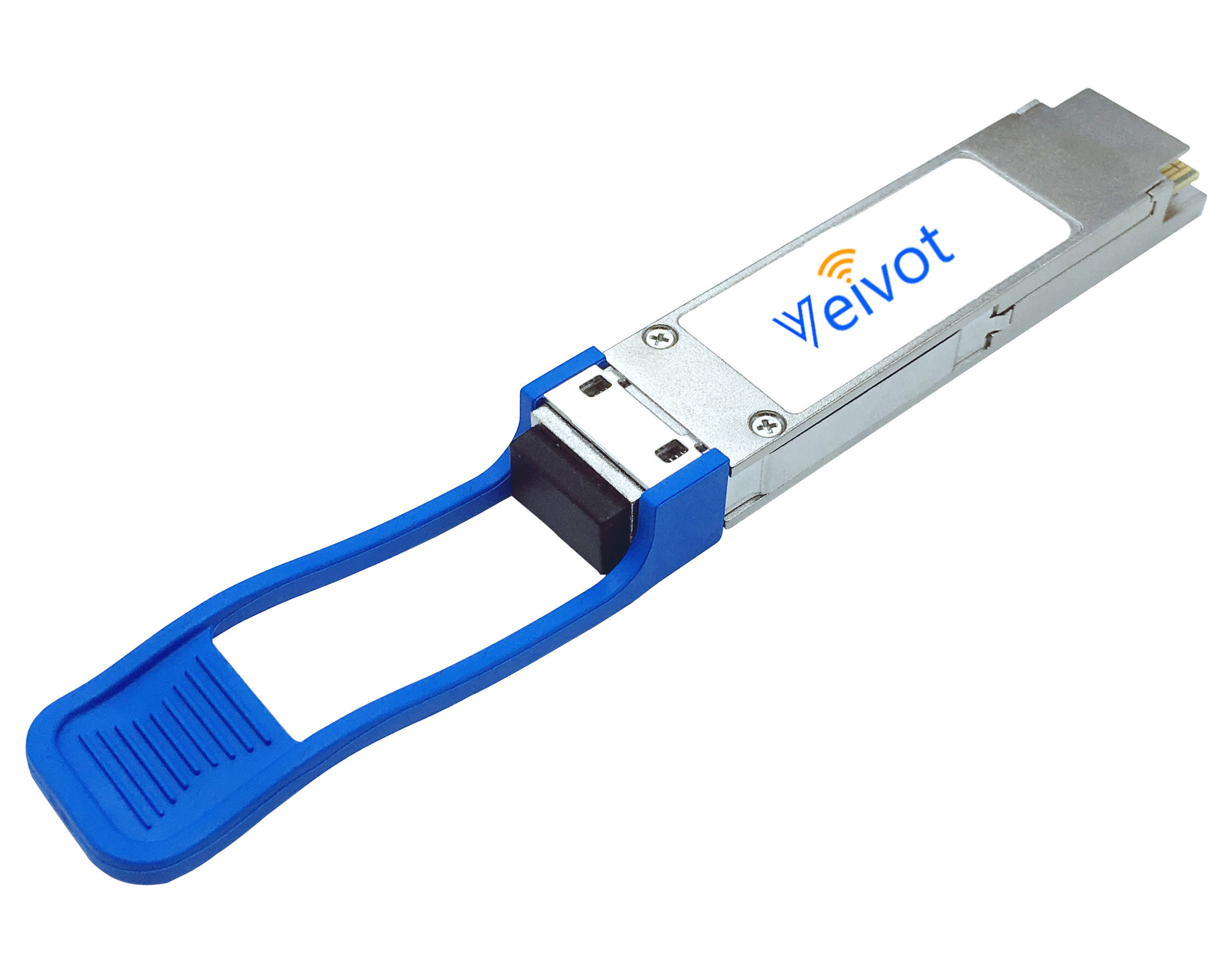

The Veivot optical transceiver module VV-Q28-LR4 is a 4x25G single-mode fiber hot swappable optical transceiver. They comply with QSFP28 MSA1, IEEE 802.3ba 100GBASE-LR42, and IEEE 802.3bm CAUI-46. The digital diagnostic function can be obtained through the I2C interface, as specified by QSFP28 MSA. The transceiver complies with RoHS-6 of Directive 2011/65/EC3.
The optical connection is based on two single-mode fiber (SMF) LC connectors, one for Tx and the other for Rx. Tx and Rx each consist of four 25GB/s LAN-WDM channels, with wavelengths in the range of 1300nm. The QSFP28 LR4 t transceiver is designed specifically for applications up to 10Km.
Features
Up to 25.78Gbps data links per channel
Compliant with the QSFP28 MSA Technical Specifications
Supports 103.1Gb/s aggregate bit rate
Capable of over 10km transmission on SMF
Duplex LC optical connector
Compliant with 100G Ethernet IEEE802.3ba and 100GBASE-LR4 Standard
Single +3.3V power supply operating
4x25Gb/s EML-based LAN-WDM transmitter and PIN+TIA
4 channels 1295.56, 1300.05, 1304.58 and 1309.14 nm
Power dissipation < 3.5W
Temperature range 0°C to 70°C
RoHS Compliant
Digital Diagnostic Monitor(DDM)
Applications
100GBase-LR4 Ethernet
Switches and Routers
Data centers
Optical Characteristics
Parameter | Symbol | Min. | Typical | Max. | Unit |
Transmitter | |||||
Signaling Speed per Lane | 25.78125 ± 100 ppm | Gb/s | |||
Wavelength Assignment | L0 | 1294.53 | 1295.56 | 1296.59 | nm |
L1 | 1299.02 | 1300.05 | 1301.09 | nm | |
L2 | 1303.54 | 1304.58 | 1305.63 | nm | |
L3 | 1308.09 | 1309.14 | 1310.19 | nm | |
Side-mode Suppression Ratio | SMSR | 30 | - | - | dB |
Total Average Output Power | PT | - | - | 10.5 | dBm |
Average Output Power | Pout | -4.3 | 4.5 | dBm | |
Difference in Launch Power between any two Lanes (OMA) | 4 | dB | |||
Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane |
- | 2.2 | dBm | ||
TDP, each lane | -2.3 | dB | |||
Extinction Ratio | ER | 3.5 | dB | ||
Laser Off Power Per Channel | Poff | -30 | dBm | ||
Transmitter Reflectance | RT | -12 | dB | ||
Optical Return Loss Tolerance | 20 | dB | |||
Relative Intensity Noise | Rin | -130 | dB/Hz | ||
Receiver | |||||
Signaling Speed per Lane | 25.78125 ± 100 ppm | Gb/s | |||
Wavelength Assignment
| L0 | 1294.53 | 1295.56 | 1296.59 | nm |
L1 | 1299.02 | 1300.05 | 1301.09 | nm | |
L2 | 1303.54 | 1304.58 | 1305.63 | nm | |
L3 | 1308.09 | 1309.14 | 1310.19 | nm | |
Damage Threshold | THd | 5.5 | dBm | ||
Average Power at Receiver Input, each Lane | -10.6 | 4.5 | dBm | ||
Receiver Sensitivity | PIN | -8.6 | dBm | ||
Stressed Receiver Sensitivity in OMA, each Lane | -6.8 | dBm | |||
Receiver Power (OMA), each Lane | Pmax | 4.5 | dBm | ||
LOS De-Assert | LOSD | -11.6 | dBm | ||
LOS Assert | LOSA | -24 | -13.6 | dBm | |
LOS Hysteresis | 1.5 | dB | |||
Receiver Reflectance | Rrx | -26 | dB | ||
Ordering Information
Part No. | Product Description |
VV-Q28-LR4 | 100GBase-LR4 QSFP28 1310nm 10km LC SMF, 0°C to 70°C |
