Description

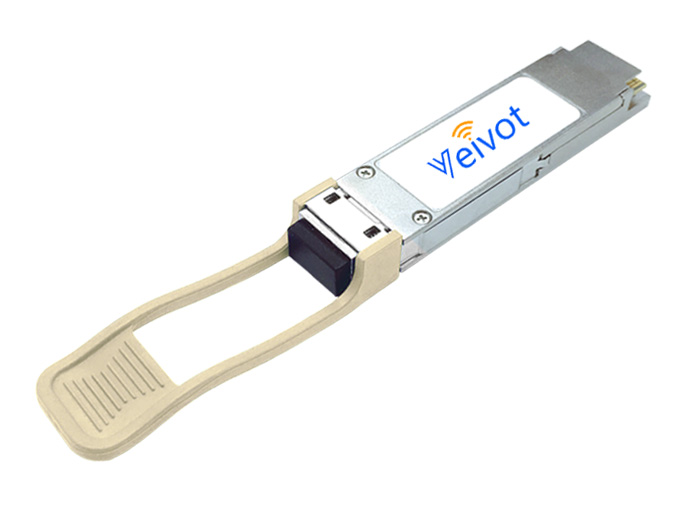

The Veivot optical transceiver module VV-Q28-SR4 is a 4x25Gbps multimode fiber hot swappable optical transceiver. This module integrates four parallel channels, each with a data rate of 25.78Gbps. It can transmit 70 meters on fiber optic OM3 fiber or 100 meters on OM4 fiber with FEC. This transceiver is a high-performance module used for data communication and interconnection applications. It integrates four data channels in each direction with a bandwidth of 103.1Gbps.

This module is designed to operate on a multimode fiber system with a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 8 core or 12 core MPO connector.

Features

• Up to 25.78Gbps data links per channel

• 4 channels 850nm VCSEL laser and 4 channels PIN photo detector array

• Compliant with SFF-8665

• Capable of over 70m transmission on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF

• MPO12 optical connector

• High Reliability 850nm VCSEL

• Single +3.3V power supply operating

• Hot-pluggable QSFP28 form factor

• Maximum power consumption 2.5W

• Temperature range 0°C to 70°C

• RoHS Compliant Part

• Digital Diagnostic Monitor(DDM)

Applications

• 100GBase-SR4 Ethernet

• Infiniband EDR interconnects

• Data centers

• Servers, Switches, Storage and Host Card Adapters

Optical Characteristics

Ordering Information
