100Gbps QSFP28 to 4*25G SFP28 Breakout Passive Direct Attach Cable

Home Direct Attach Cable 100G QSFP28 - 4*25G SFP28 DAC

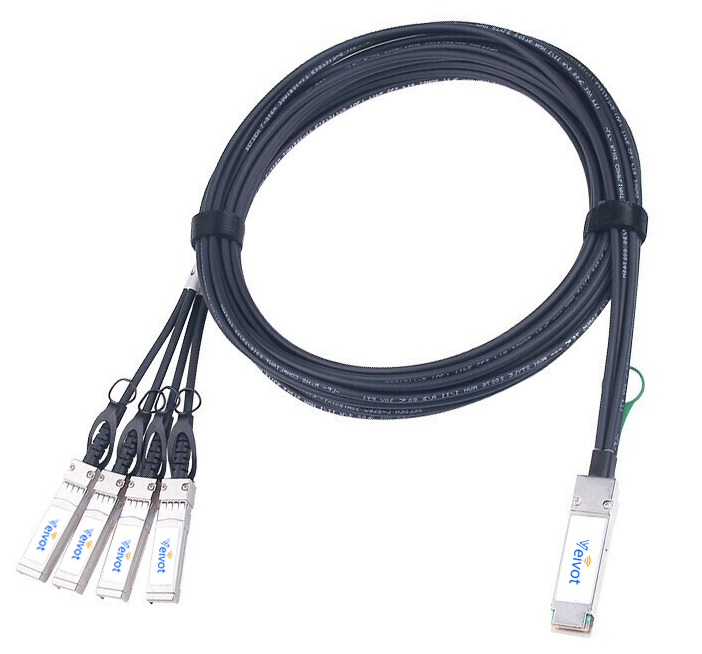

100G QSFP28 to 4x25G SFP28 DAC Cable (1)

100Gbps QSFP28 to 4*25G SFP28 Breakout Passive Direct Attach Cable(DAC)

P/N: VV-Q4S28-PCU-XXM

Consult

Product details

Description

The VV-Q4S28-PCU-XXM is a high performance, cost effective I/O solutions for SFP28 and QSFP28 equipment interconnects.

The QSFP28 hybrid copper cables are compliant with SFF-8432 and SFF-8665, QSFP28 MSA and IEEE 802.3bj 100GBASE-CR4.It is offer a low power consumption, short reach inter-connect applications. The cable each lane is capable of transmitting data at rates up to 25G b/s, providing an aggregated rate of 100Gb/s.

Features

4 channels full-duplex DAC
QSFP28 Small Form Factor Compliant to SFF-8432&SFF-8665
Maximum aggregate data rate: 100 Gb/s(4 x 25Gb/s)
Single +3.3V power supply operating
Temperature range 0°C to 70°C
I2C based two-wire serial interface
High-Density QSFP28 38-PIN and 4x SFP28 20-PIN Connector
RoHS Compliant Part
Cabel length up to 5M at most

Applications

100G/25GBase Ethernet
Infiniband 4x SDR, DDR, QDR
Data centers
SAS, Servers, Hubs, Switches, Routers

Ordering Information

Part No.	Product Description
VV-Q4S28-PCU-XXM	40GBase-CR4 QSFP28 to 4xSFP28 Breakout(Fan-out) DAC 1~5M MMF
XX stands for 0.5, 1, 2, 3, 4, 5 m(unit)
