Description

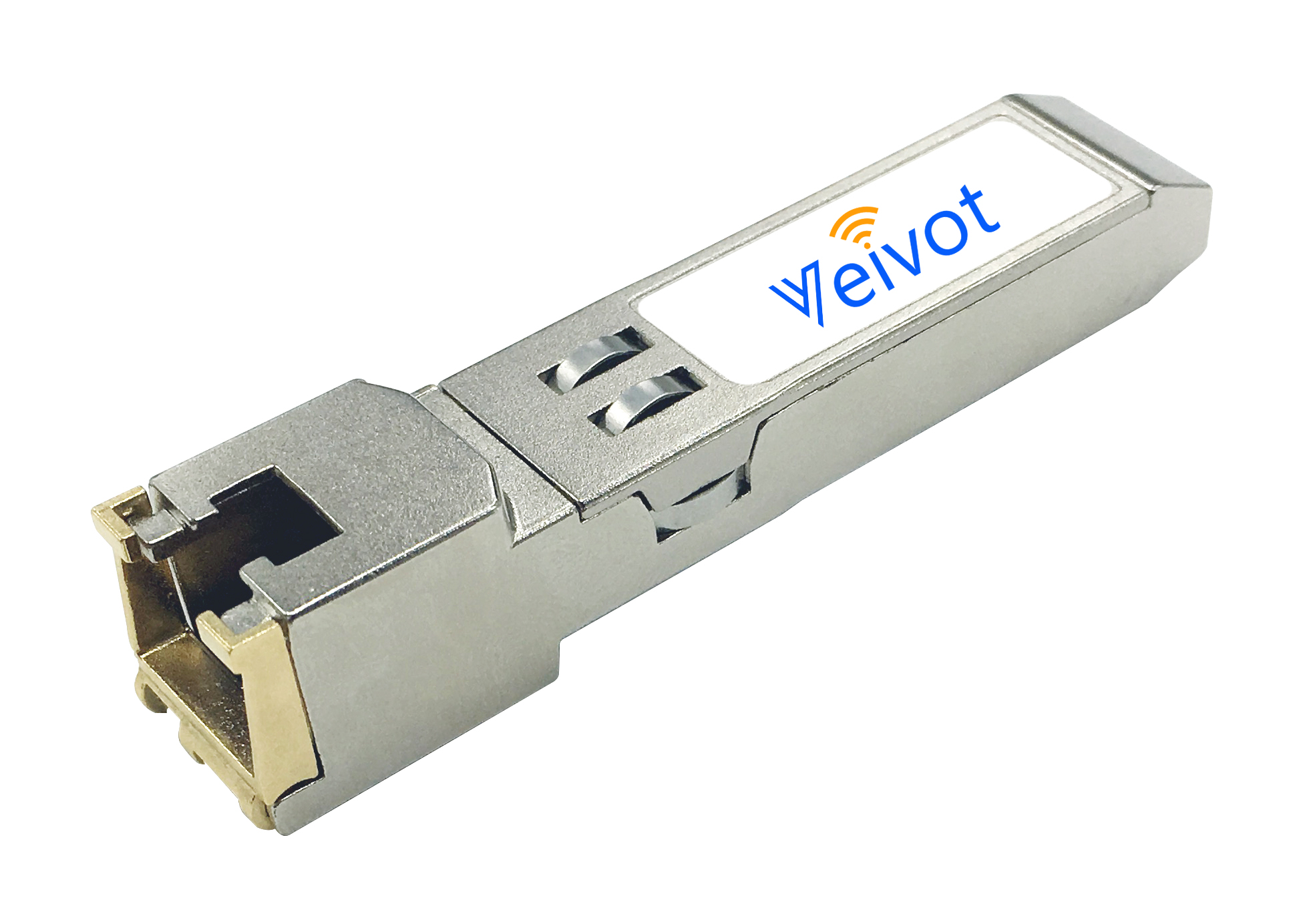

The Veivot industrial grade copper small form factor plug (SFP) transceiver VV-RSF-FE-TI is a high-performance and cost-effective module that complies with the fast Ethernet and 100-BASE-T standards specified in IEEE802.3u. It supports a data transfer rate of 100Mbps, up to 100 meters, and can be transmitted through unshielded twisted pair Category 5 cables. They are compatible with the Fast Ethernet and 100BASE-T standards specified in IEEE Std 802.3. The 100BASE-T physical layer IC (PHY) can be accessed through I2C, allowing access to all PHY settings and functions. The physical IC can also be accessed through a 2-wire serial bus with address A0h.

The operating temperature range of this industrial transceiver is -40 ° C to +85 ° C, and it can operate in harsh industrial environments such as telecommunications, data processing and management, industrial and factory automation applications, outdoor applications, railways and intelligent transportation systems (ITS), marine, oil and gas, mining, etc.

Features

• Up to 100Mbps bi-directional data links

• RJ45 Max 100 meters

• Hot-pluggable SFP footprint

• Fully metallic enclosure for low EMI

• Compact RJ-45 Connector assembly

• Operating temperature: -40℃ to +85℃

• RoHS Compliant

• Access to physical layer IC via 2-wire serial bus over Cat 5 cable

Application

• 100M Fast Ethernet

General Specifications

Ordering Information
