Description

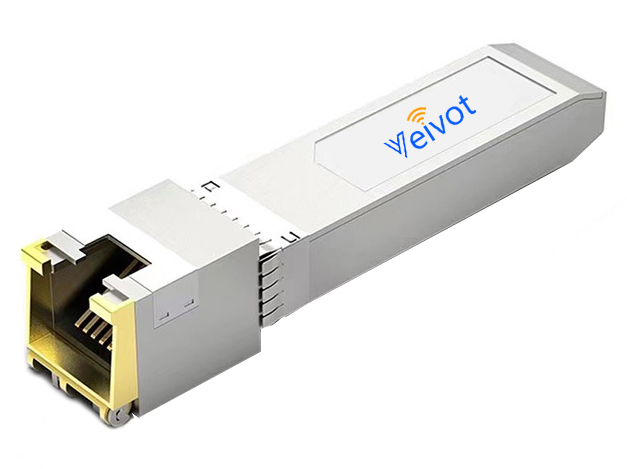

The Veivot copper transceiver module VV-RSP-10G-T provides a connection option for 10Gbps data rate. This module has an SFP+ appearance and RJ-45 interface, and can be connected to endpoints with embedded 10GBASE-T ports using Cat6A/Cat7 cables. It supports distances of up to 30 meters, providing an economical and efficient solution for intra rack and inter rack connections.The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address A0h.
Features
Up to 10Gbps bi-directional data links
RJ45 Max 30 meters using Cat 6a/7 Cable
Hot-pluggable SFP footprint
Fully metallic enclosure for low EMI
Compact RJ-45 Connector assembly
Operating temperature: 0℃ to +70℃
RoHS Compliant
Access to physical layer IC via 2-wire serial bus
Applications
10 Gigabit Ethernet
General Specifications
Parameter | Symbol | Min. | Typ | Max | Units | Notes/Conditions |
Data Rate | BR | 10 | 10000 | Mb/sec | IEEE 802.3 compatible.See Notes 2 through 4 below | |
Tx Output Impedance | L | 30 | M | Category 6a/7 UTP.BER<10-12 |
Ordering Information
Part No. | Product Description | TX_DIS and Link Indicator on Rx_LOS Pin |
VV-RSP-10G-T | 10GBase-T SFP Copper RJ45 30M with Spring Latch | Yes |
