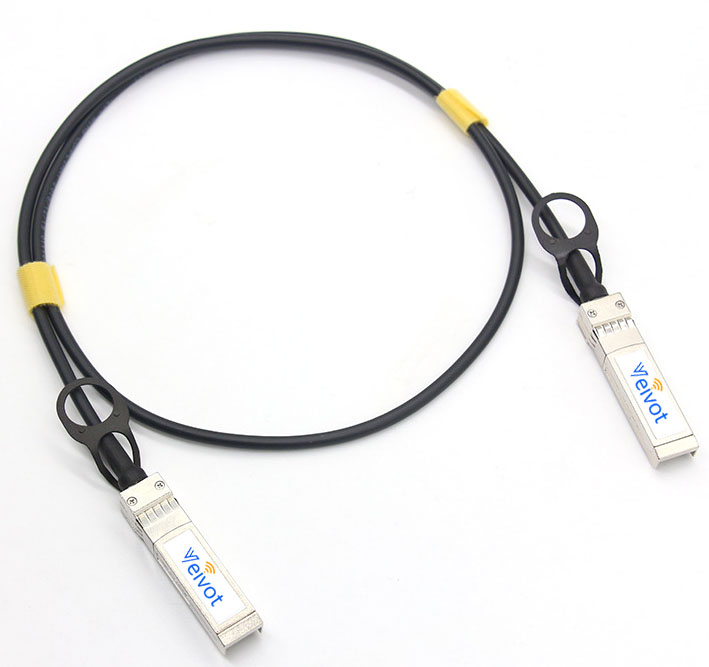

10Gbps SFP+ Industrial Active Direct Attach Cable(DAC)
P/N: VV-SP-ACU-XXMI
Description
The VV-SP-PCU-XXMI is Copper SFP+ Cable assemblies are high-performance, cost effective I/O solutions for 10 GB Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufacturers to achieve high port density, configurability and utilization at a very low cost and to reduce power budget.
The high-speed cable assemblies meet and exceed the performance and reliability requirements stipulated by Gigabit Ethernet and Fiber Channel industry standard.
Features
Support 1G/10G data links
Hot-pluggable SFP+ footprint
Compliant with SFP+ MSA and SFF-8472
Single +3.3V power supply operating
Temperature range -40°C to +85°C
RoHS 2.0 Compliant Part
Enhanced EMI / EMC performance
Support serial ID function through EEPROM
30AWG to 24AWG cable available
Cable length up to 15M at most
Applications
1G/10G Ethernet
Switch / Router / HBA
Data Center network
Servers and storage
Cable Dimension
Serial Number | Standard Gauge | Cable diameter OD(mm) | Min bending radius R (mm) |
1 | 30 | 4.6 | 25 |
2 | 28 | 5.0 | 30 |
3 | 24 | 6.5 | 35 |
Ordering Information
Part No. | Product Description |
VV-SP-ACU-XXMI | 10GBase-CU SFP+ Active DAC XX(meter) Industrial Temperature |
XX stands for 0.5-15m(unit) | |
