Product Description

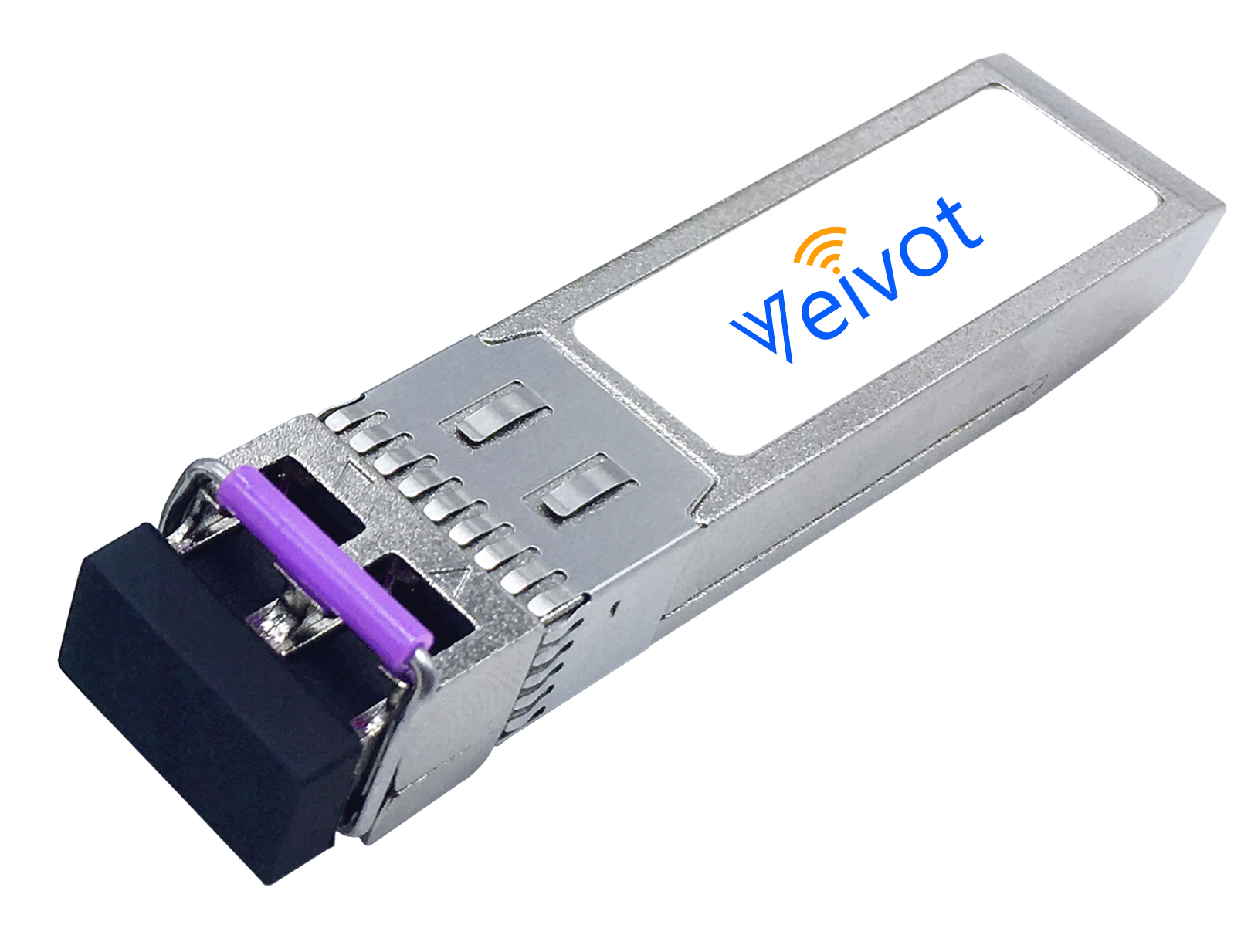

The Veivot SFP+ Transceivers is a 10Gbps enhanced small form factor pluggable SFP+ transceiver compatible with 10GBASE Ethernet and 10G Fiber Channel 1200-SM-LL-L. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Features
Support 10.3Gbps bit rates
20dB(PB) with 9/125µm SMF transmission
18 CWDM Waves DFB laser and APD photodiode
Compliant with SFP+ MSA and SFF-8472 with Duplex LC receptacle
Hot-pluggable SFP+ footprint
Single 3.3V power supply
Operating temperature: 0℃ to +70℃
RoHS Compliant
Digital Diagnostic Monitor compatible
Applications
10Gbps Optical systems
10G CWDM Optical systems
LTE systems
Other Optical links
Key Parameters
Parameter | Symbol | Min. | Typical | Max. | Unit |
Transmitter | |||||
Centre Wavelength | λc | λc-6.5 | λc | λc +6.5 | nm |
Centre Wavelength Spacing | 20 | nm | |||
Spectral Width (-20dB) | σ | 1 | nm | ||
Average Output Power | Pout | 2 | 5 | dBm | |
Extinction Ratio | ER | 3.5 | dB | ||
Data Input Swing Differential | VIN | 180 | 850 | mV | |
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω |
Receiver | |||||
Centre Wavelength | λc | 1260 | 1620 | nm | |
Receiver Sensitivity | PIN | -22 | dBm | ||
Receiver Overload | Pmax | 3 | dBm | ||
LOS De-Assert | LOSD | -26 | dBm | ||
LOS Assert | LOSA | -32 | dBm | ||
LOS Hysteresis | 0.5 | dB | |||
Data Output Swing Differential | Vout | 300 | 900 | mV | |
LOS | High | 2.0 | Vcc | V | |
Low | 0.8 | V | |||
Ordering Information
Part No. | Product Description |
VV-SP-CW-80-XX | 10Gbps SFP+ CWDM 1270~1610nm 80km LC Duplex DDM |
XX standards for Waves, e.g. 1310=31, 1570=57.
