Description
A fiber optic adapter, sometimes called a coupler, is a small device designed to terminate or link a fiber optic cable or fiber optic connector between two fiber optic lines.
SC-SC duplex fiber optic shutter adapter allow the light source to be transmitted to the greatest extent with the lowest possible loss by connecting the four SC connectors precisely. At the same time, the fiber optic adapter also has the advantages of low insertion loss, good interchangeability and reproducibility. VEIVOT offers a wide range of mating sleeves and hybrid adapters, including special male-to-female hybrid fiber optic adapters.

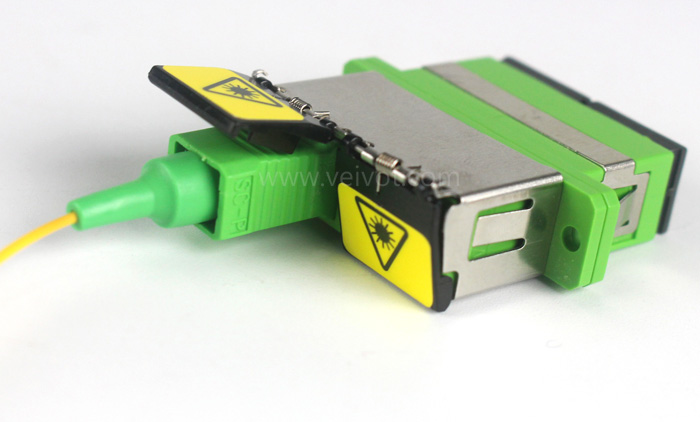

The SC duplex fiber optic adapter with shutter is equipped with automatic shutter to prevent dust and other pollutants. It can also prevent eye exposure to lasers. The SC adapter with a shutter meets the growing demand for eye safety and connector cleanliness on today's network and telecommunications platforms.
Feature
High size precision
Fast and easy connection
Lightweight and durable plastic housings
Zirconia ceramic alignment sleeve
Color-coded, allowing for easy fiber mode identification
High wearable
Good repeatability
Specification
Product Name | SC to SC Duplex Adapter with Shutter |
Fiber Mode | Singlemode or Multimode |
Matching connector Type | SC/APC or SC/UPC |
Color | SM APC: Green SM PC/UPC: Blue MM OM1/OM2 PC/UPC: Beige MM OM3 PC/UPC: Aqua MM OM4 PC/UPC: Aqua/Magenta MM OM5 PC/UPC: Lime Green |
Insertion Loss | ≤0.2dB |
Interchangeability | ≤0.2dB |
Mating Durability | ≤1000 times |
Alignment Sleeve Material | Zirconia Ceramic |

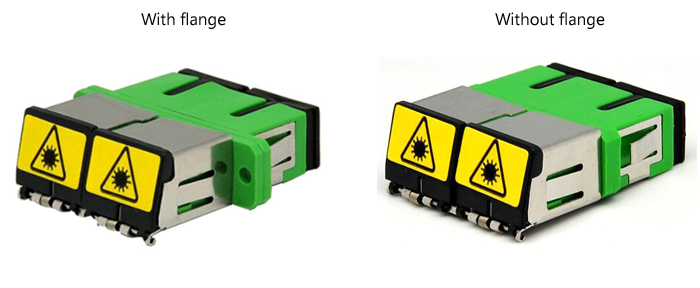

Type | With flange or Without flange |
Flammability Rate | UL 94V-0 or non-flame retardant |
Compliance | RoHS compliant |
Environment | Operating: -20°C to 70°C |
Ordering Options

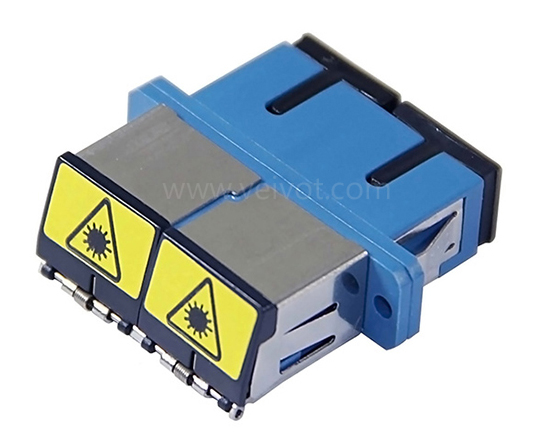

SC/UPC to SC/UPC Duplex Singlemode Blue Fiber Optic Adapter with Shutter with Flange

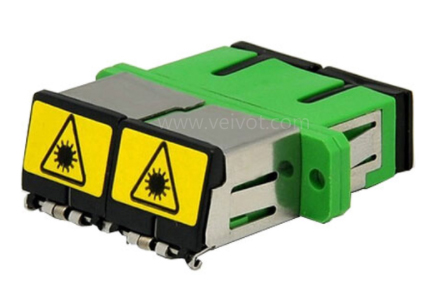

SC/APC to SC/APC Duplex Singlemode Green Fiber Optic Adapter with Shutter with Flange

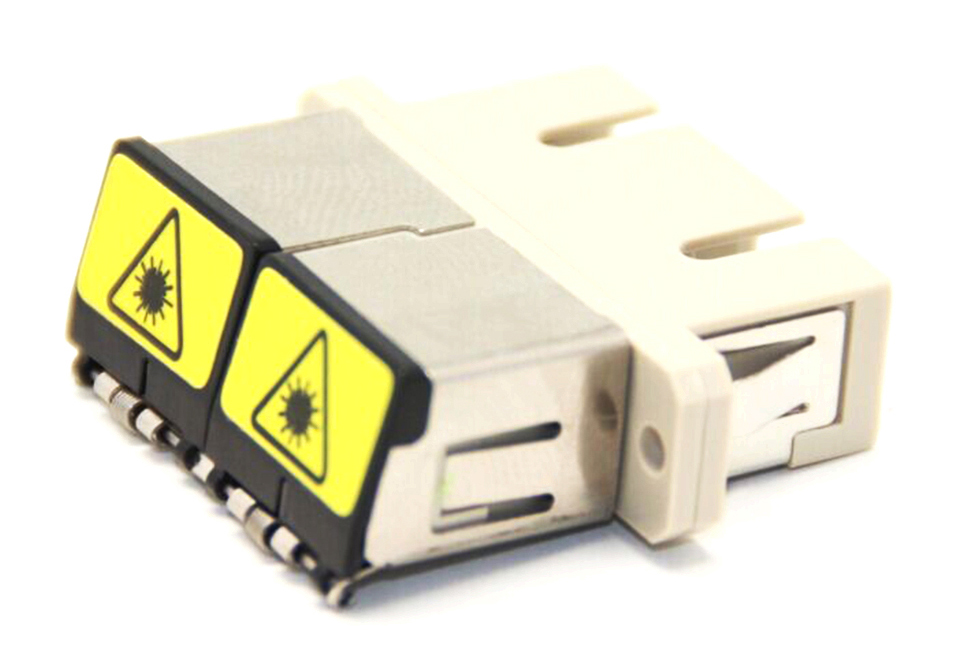

SC/UPC to SC/UPC Duplex Multimode OM1/OM2 Blue Fiber Optic Adapter with Shutter with Flange
SC/UPC to SC/UPC Duplex Multimode OM3 Aqua Fiber Optic Adapter with Shutter with Flange
SC/UPC to SC/UPC Duplex Multimode OM4 Aqua Fiber Optic Adapter with Shutter with Flange
SC/UPC to SC/UPC Duplex Multimode OM4 Magenta Fiber Optic Adapter with Shutter with Flange
SC/UPC to SC/UPC Duplex Multimode OM5 Lime Green Fiber Optic Adapter with Shutter with Flange
SC/UPC to SC/UPC Duplex Singlemode Blue Fiber Optic Adapter with Shutter without Flange

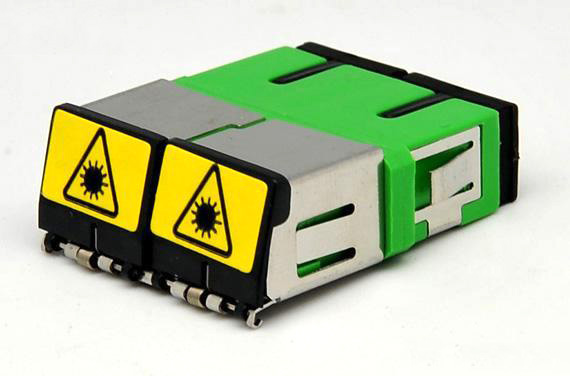

SC/APC to SC/APC Duplex Singlemode Green Fiber Optic Adapter with Shutter without Flange
SC/UPC to SC/UPC Duplex Multimode OM1/OM2 Blue Fiber Optic Adapter with Shutter without Flange
SC/UPC to SC/UPC Duplex Multimode OM3 Aqua Fiber Optic Adapter with Shutter without Flange
SC/UPC to SC/UPC Duplex Multimode OM4 Aqua Fiber Optic Adapter with Shutter without Flange
SC/UPC to SC/UPC Duplex Multimode OM4 Magenta Fiber Optic Adapter with Shutter without Flange
SC/UPC to SC/UPC Duplex Multimode OM5 Lime Green Fiber Optic Adapter with Shutter without Flange
