Description

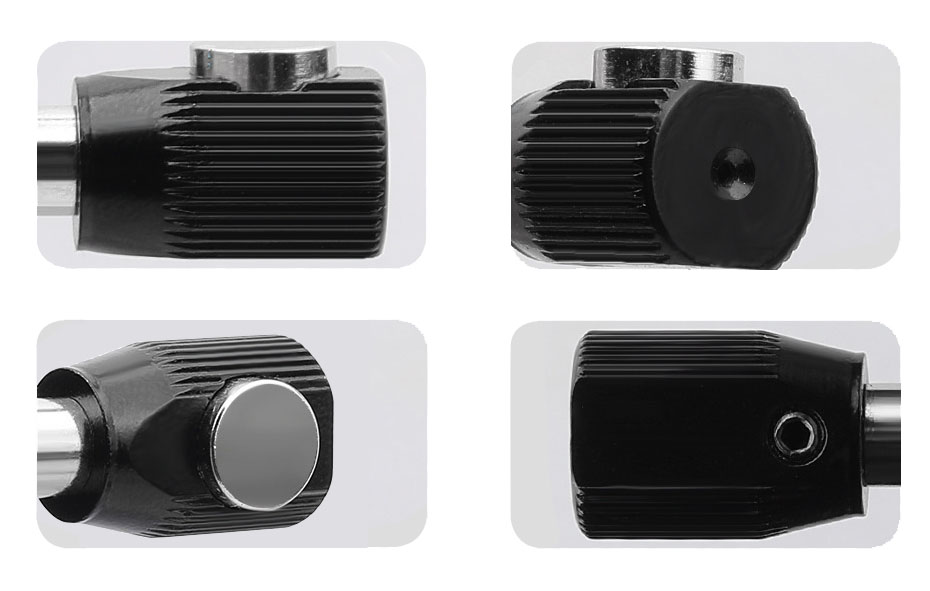

Veivot's SC round shape bare fiber adapter is used as a testing tool to temporarily connect bare fiber to fiber optic devices without the need for permanent connectors. It provides a simple and effective way to use unterminated fiber with standard SC sockets. Simply peel, clean, and cut the fiber and insert it into the bare fiber adapter to easily connect and couple the bare fiber with other optical devices. They are ideal for power meter connections, temporary system repairs, or places that require fast fiber optic connections. This SC bare fiber adapter provides a perfect tool for fiber repairers who want to polish bare (unpacked) fiber without termination.

SC round shape bare fiber adapter can be recycled, which is both convenient and cost-effective. It is particularly suitable for fiber optic connections in emergency situations of some on-site fiber optic wiring, and can be subjected to on-site functional testing without additional permanent connectors. For technicians and contractors, this will make fiber optic testing and network maintenance easier, faster, and more efficient. The use of bare fiber adapters can be directly used to connect and couple bare fiber with other optical devices.

Feature

• Easy to use and reuseable

• LC, SC, FC, ST, SMA, and E2000 connectors available

• Provides a fast method of temporarily connecting a fiber under test to a test instrument

• Broken fibers are removed with piano wire allowing hundreds of insertions

• Accommodates 125µm clad fiber with low Insertion loss

• Metal body

• ROHS compliant and Lead-Free

Specification

Use Method

1.Strip the coating(15-20mm) and clean with alcohol

2.Press the adapter button

3.Insert the fiber through the adapter insertion hole till it comes out of the ferrule(5-6mm)

4.Release the button

5.Cut the extended fiber part with scriber or cleaver.

Ordering Options

SC/UPC Singlemode Round Bare Fiber Adapter

SC/APC Singlemode Round Bare Fiber Adapter
