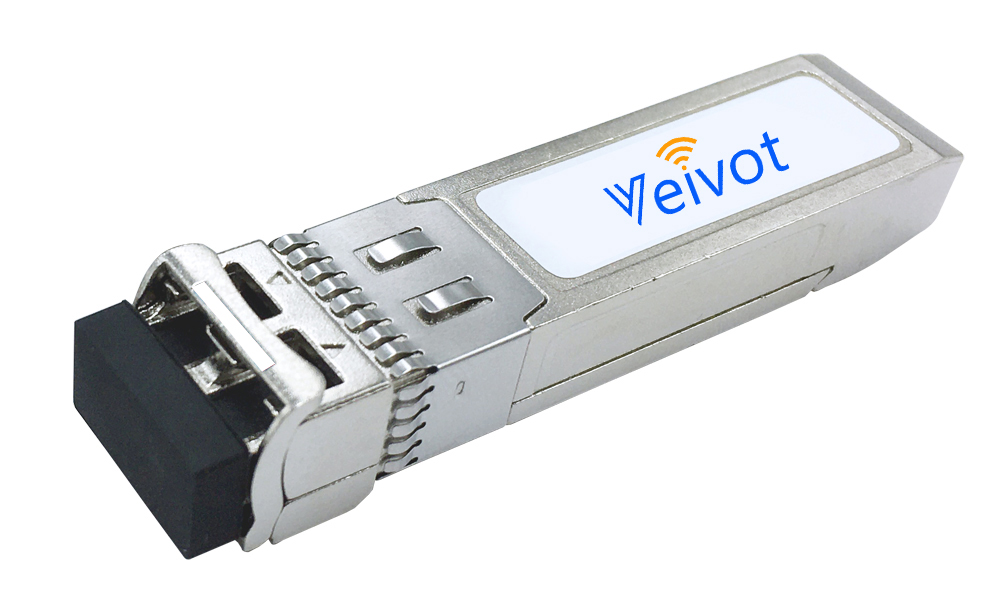

10GBASE SFP+ Extender ER 1550nm SM 100KM LC DDM Optical Transceiver Module (SFP-10G-ZR)
P/N: VV-SP-EZR
Product Description
Veivot Technology 10G Extender ER 1550nm SM 100KM LC DDM SFP+ Transceivers is a 10Gbps enhanced small form factor pluggable SFP+ transceiver compatible with 10GBASE-ZR/ZW. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
The commercial grade 0℃ to 70℃ is standard temperature. Industrial grade -40 to +85℃ temperature can be also made.
Veivot Technology SFP+ Transceivers are compatible with Cisco, Nokia, Ericsson,Huawei, Arista, AdTran, Ciena, Juniper, ZTE, H3C, Aruba, Mellanox, Radisys, Dell, Intel, ADVA, Brocade, Calix, Samsung, Mikrotik, Hisense, Ubiquiti, DASAN, ZHONE, Datto, Sophos, D-Link, TP-Link, Linksys, C-Data, V-solution, Hikivision , etc.
Product Features
Support 10.3Gbps bit rates
100km with 9/125µm SMF transmission
1550nm EML laser and APD photodiode
Compliant with SFP+ MSA and SFF-8472 with Duplex LC receptacle
Hot-pluggable SFP+ footprint
Single 3.3V power supply
Operating temperature: Standard : 0 to +70°C
RoHS Compliant
Digital Diagnostic Monitor compatible
Power Consumption < 1.8W
Applications
10Gbps Optical systems
10GBASE-ZR/ZW 10G Ethernet
SONET OC-192 / SDH
Key Parameters
Parameter | Symbol | Min. | Typical | Max. | Unit |
Transmitter | |||||
Centre Wavelength | λc | 1530 | 1550 | 1570 | nm |
Spectral Width | σ | 0.3 | nm | ||
Average Output Power | Pout | 1 | 5 | dBm | |
Optical Power OMA | Poma | -2.1 | dBm | ||
Extinction Ratio | ER | 8.2 | dB | ||
Data Input Swing Differential | VIN | 180 | 700 | mV | |
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω |
Receiver | |||||
Centre Wavelength | λc | 1260 | 1550 | 1600 | nm |
Receiver Sensitivity | PIN | -25.0 | dBm | ||
Receiver Overload | Pmax | -7 | dBm | ||
LOS De-Assert | LOSD | -26.0 | dBm | ||
LOS Assert | LOSA | -34 | dBm | ||
LOS Hysteresis | 0.5 | 4 | dB | ||
RX Output Swing Differential | Vout | 300 | 850 | mV | |
LOS | High | 2.0 | Vcc | V | |
Low | 0.8 | V | |||
Ordering Information
Part No. | Product Description |
VV-SP-EZR | 10GBASE SFP+ Extend ZR 1550nm SM 100KM LC DDM |
