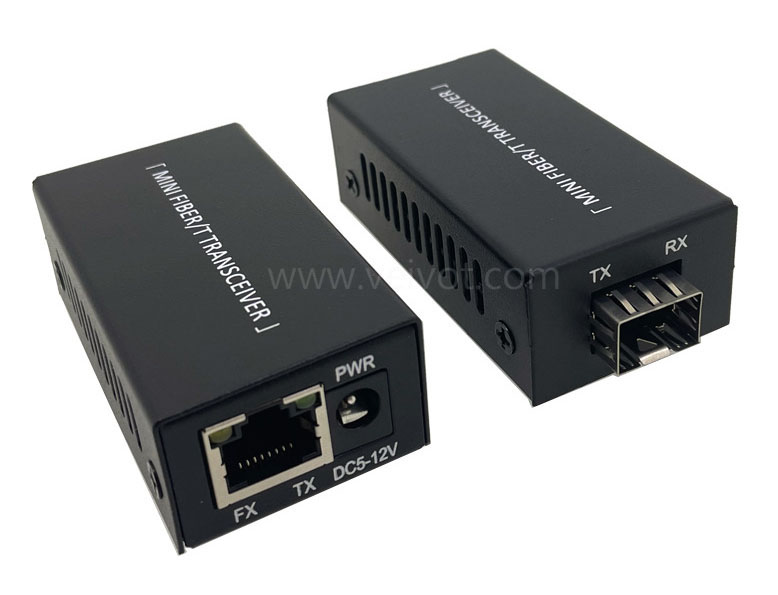

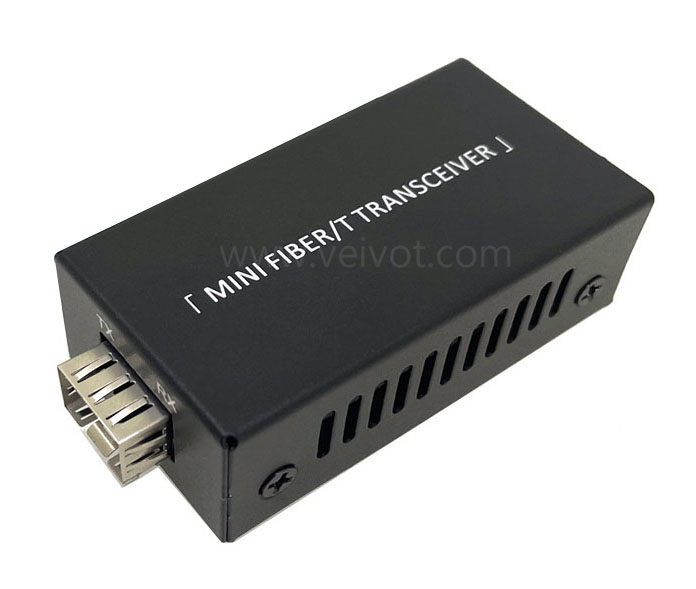

1-Port 10/100/1000Mbps-TX RJ45 to 1-Port 1GBASE-FX SFP Gigabit Ethernet Ultra Samll Mini Media Converter
Model No.: VV-M1MC1G-1SF1E
Description
The Gigabit Media Converter aims to convert 10/100/1000BASE-T copper to 1000BASE-X optical fibers. The VEIVOT Gigabit SFP Slot Ultra Small Mini Media Converter (VV-M1MC1G-1SF1E) features an open Gigabit SFP slot, allowing you to choose the MSA compliant SFP Optical Transceiver Module that best meet fiber connection requirements. The VEIVOT Gigabit SFP Slot Ultra Small Mini Media Converter (VV-M1MC1G-1SF1E) allows you to choose from a variety of SFP optical transceiver modules that are suitable for your single mode or multimode cabling system and support transmission distances of up to 160km (99.4 miles), depending on the different SFP modules. Gigabit SFP media converters provide a flexible and cost-effective way to extend the distance of existing copper networks, the lifespan of non fiber optic devices, or the distance between two devices, allowing you to maximize the utilization and performance of traditional devices. Ethernet signals allow three types of network segments to be easily, efficiently, and cheaply connected.
Features
1 port 10/100/1000Mbps-TX RJ45
1 port 1GBASE-FX SFP
Ethernet port speed and half/full duplex automatic protocol Auto-Negotiation
Support Auto MDI/MDI-X
SupporT Half/ Full duplex mode
Compatible with virtually any MSA-compliant transceiver
Specification
Model Number | VV-M1MC-1G-1SF1E |
Ethernet protocol | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX IEEE 802.3z 1000BASE-LX |
Ethernet port | 1-port 100/100/1000Mbps RJ45 |
Maximum Ethernet Port Transmission Distance | 100BASE-T: Cat5 100m 1000BASE-T: Cat5e/Cat6 100m |
Ethernet Cable Type | UTP Twisted Cable |
Fiber port | 1-port 1G SFP |
Fiber Type | Singlemode (9/125) / Multimode (50/125 and 62.5/125) Single Fiber / Dual Fiber |
Wavelength | 850nm / 1310nm / 1490nm / 1550nm |
Fiber Connector Type | SC / LC |
Maximum Fiber Port Transmission Distance | 160km (depends on the SFP module) |
Maximum Data Transfer Rate | 1Gbps |
Operation Mode | Full / Half duplex Auto-Negotiation |
Store and forward | Support |
Adaptive state | Support 10M/100M/1000M photoelectric adaptive |
Usage environment | Operating temperature: 0℃～+50℃ Storge temperature: -40℃～+70℃ Operating Humidity: 10% to 95% (non-condensing) Storage humidity: 5%～90% (non-condensing) |
Power Supply | DC: 5V1A or 5V2A AC: 100-240V 50-60Hz |
Jumbo frames up to 9k Bytes | Support |
Dimension | 69*37*23mm |
Weight | 0.066kg |
RoHS Compliant | Yes |

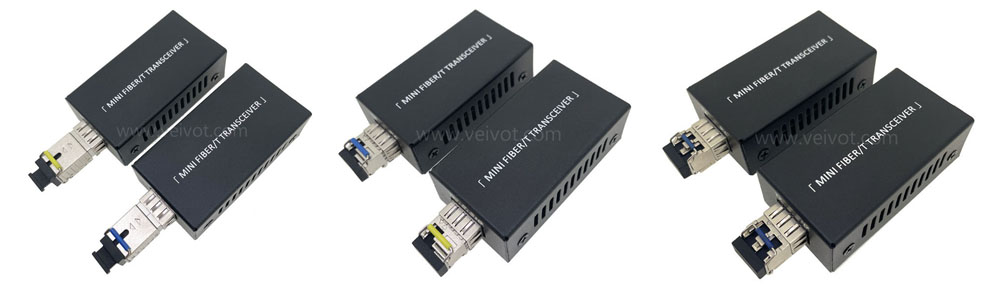

SFP module options
(1) Gigabit SFP Slot Ultra Mini Media Converter with 1.25G SC single fiber singlemode SFP module
(2) Gigabit SFP Slot Ultra Mini Media Converter with 1.25G LC single fiber singlemode SFP module
(2) Gigabit SFP Slot Ultra Mini Media Converter with 1.25G LC dual fiber singlemode/multimode SFP module
Workshop
Application
Ordering Information
Part No. | Product Description |
VV-M1MC1G-1SF1E | 10/100/1000Mbps-TX (RJ45) to 1GBase-FX (SFP) Ultra Mini Media Converter |
