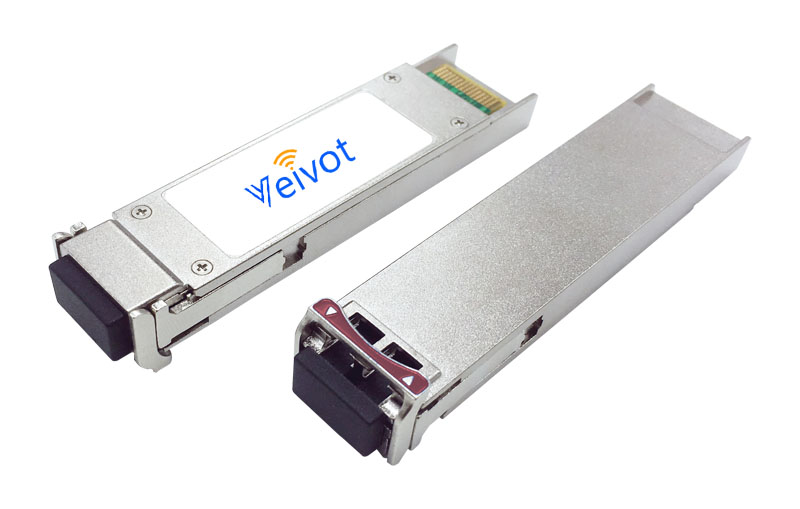

10GBASE XFP ER SMF 1550nm 40KM LC DDM Optical Transceiver Module (XFP-10G-ER)
P/N: VV-XP-ER
Product Description
Veivot Technology 10G ER SMF 1550nm 40KM LC DDM XFP Optical Transceiver is a 10Gbps enhanced small form factor pluggable XFP transceiver compatible with 10GBASE Ethernet and 10G Fiber Channel 1200-SM-LL-L. The transceivers are compatible with XFP Multi-Source Agreement and suitable for single-mode fiber (SMF) communications in 10Gbps Ethernet/FC.
The commercial grade 0℃ to 70℃ is standard temperature. Industrial grade -40 to +85℃ temperature can be also made.
Veivot Technology XFP Transceivers is compatible with Cisco, Nokia, Ericsson,Huawei, Arista, AdTran, Ciena, Juniper, ZTE, H3C, Aruba, Mellanox, Radisys, Dell, Intel, ADVA, Brocade, Calix, Samsung, Mikrotik, Hisense, Ubiquiti, DASAN, ZHONE, Datto, Sophos, D-Link, TP-Link, Linksys, C-Data, V-solution, Hikivision , etc.
Product Features
Support 10.3Gbps bit rates
40km with 9/125µm SMF transmission
1550nm Cooled EML laser and PIN photodiode
Compliant with XFP MSA and IEE802.3ae with Duplex LC receptacle
Hot-pluggable XFP footprint
Single 3.3V power supply
Operating temperature: 0℃ to 70℃
RoHS Compliant
Digital Diagnostic Monitor compatible
Applications
10Gbps Optical systems
10GBASE-ER/EW 10G Ethernet
SONET OC-192&SDH STM-64
10G FC
OTU OTU-2
Key Parameters
Parameter | Symbol | Min. | Typical | Max. | Unit |
Transmitter | |||||
Centre Wavelength | λc | 1530 | 1550 | 1570 | nm |
Spectral Width (-20dB) | σ | 1 | nm | ||
Average Output Power | Pout | -1 | 5 | dBm | |
Extinction Ratio | ER | 8 | dB | ||
Data Input Swing Differential | VIN | 180 | 950 | mV | |
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω |
Receiver | |||||
Centre Wavelength | λc | 1260 | 1600 | nm | |
Receiver Sensitivity | PIN | -18 | dBm | ||
Receiver Overload | Pmax | 0.5 | dBm | ||
LOS De-Assert | LOSD | -20 | dBm | ||
LOS Assert | LOSA | -28 | dBm | ||
LOS Hysteresis | 0.5 | 4 | dB | ||
Data Output Swing Differential | Vout | 400 | 600 | 800 | mV |
LOS | High | 2.0 | Vcc | V | |
Low | 0.8 | V | |||
Ordering Information
Part No. | Product Description |
VV-XP-ER | 10GBASE XFP SMF 1550nm ER 40KM LC DDM |
