Description

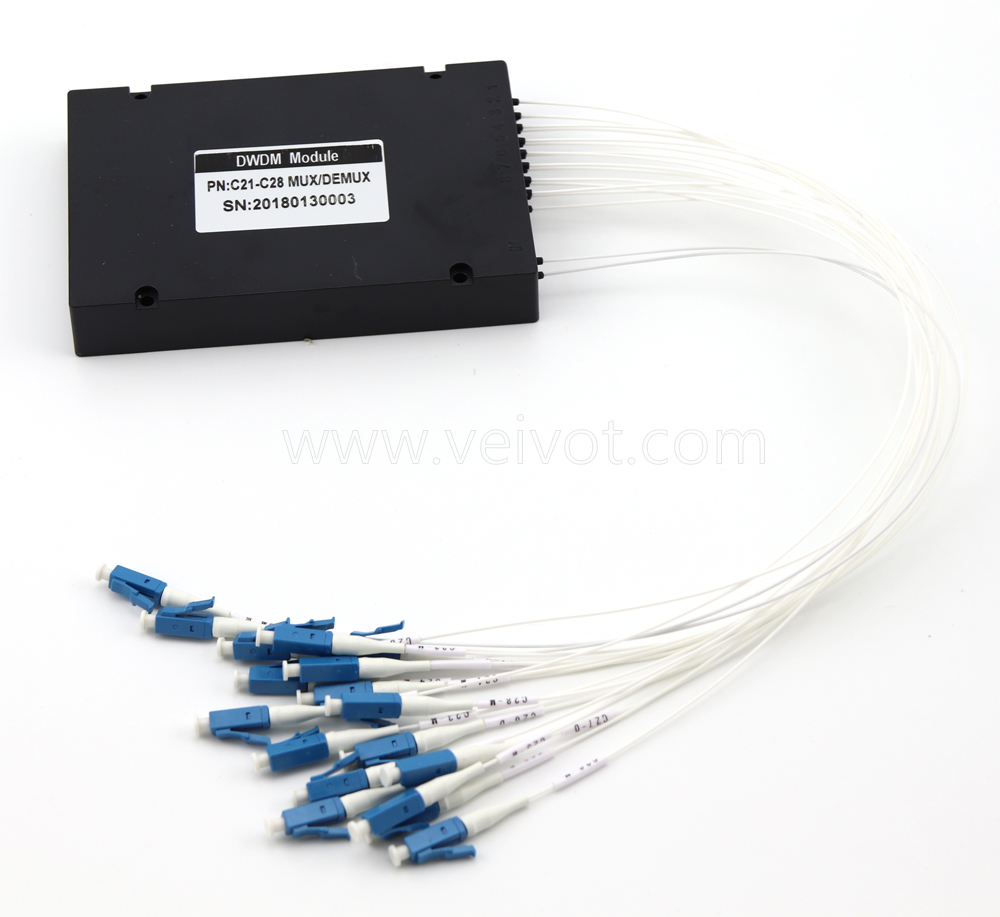

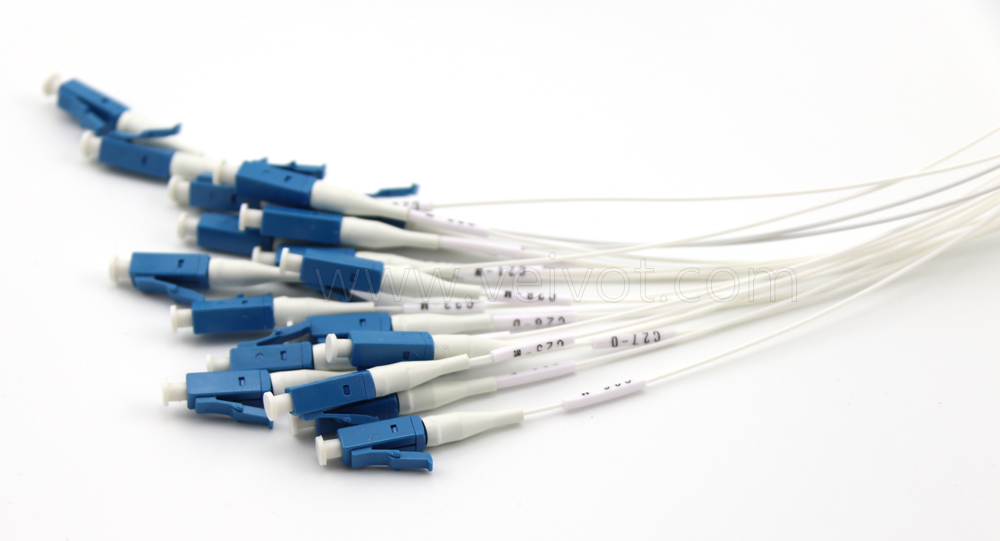

Dense Wavelength Division Multiplexer (DWDM) multiplexes optical signals of different wavelengths onto one optical fiber (multiplexing), or separates multiple optical channels multiplexed into one optical fiber by wavelength (demultiplexing). 100GHz/200GHz channel spacing dense optical wavelength division multiplexer/demultiplexer uses mature multi-cavity dielectric film to achieve optical filtering, has good wavelength stability, is encapsulated by sealing process, and has high environmental stability.
Features
Low Insertion Loss
Wide pass band
High channel
High stability and reliability
Epoxy free on optical path
Applications
Channel Add/Drop
DWDM Network
Wavlength Routing
CATV fiberoptic System
Fiber optical amplifier
Specifications
Parameter | 4 channel | 8 channel | 16 channel | ||||
Channel Wavelength (nm) | ITU 100GHz/200GHz Grid | ||||||
Center Wavelength Accuracy (nm) | ± 0.05 | ||||||
Minimum Channel Spacing (GHz) | 100 | ||||||
Channel Passband (@-0.5dB bandwidth) (nm) | > 0.22 | ||||||
Insertion Loss (dB) | ≤ 1.5 | ≤ 2.5 | ≤ 4.5 | ||||
Channel Uniformity (dB) | ≤ 0.6 | ≤ 1.0 | ≤ 1.5 | ||||
Channel Ripple (dB) | < 0.3 | ||||||
Isolation | Adjacent | N/A | > 30 | N/A | > 30 | N/A | > 30 |
Non-adjacent | N/A | > 40 | N/A | > 40 | N/A | > 40 | |
Insertion Loss Temperature Sensitivity (dB/°C ) | < 0.005 | ||||||
Wavelength Temperature Shifting (nm/ ° C ) | < 0.002 | ||||||
Polarization Dependent Loss (dB) | < 0.1 | < 0.1 | < 0.1 | ||||
Polarization Mode Dispersion(PS) | < 0.1 | ||||||
Directivity (dB) | > 50 | ||||||
Return Loss (dB) | > 45 | ||||||
Power Handling (mW) | 500 | ||||||
Operating Temperature (°C) | -5 ~+75 | ||||||
Storage Temperature (°C) | -40 ~+85 | ||||||
Package Dimension (mm) | L100 x W80 x H10 (2CH～8CH Module) L120 x W80 x H18 (9CH～16CH Module) L140 x W115 x H18 (9CH～16H Module) 19" 1U Rack | ||||||
Note: All the data above does not include connectors and adapters.
