32~48CH 100GHz AAWG DWDM MUX/DEMUX

VEIVOT provides full series of Thermal/Athermal AWG products, including 50GHz, 75GHz, 100GHz, 150GHz, 200GHz Thermal/Athermal AWG. Here, we introduced the 32~48 channel 100GHz Athermal AWG MUX/DEMUX component for DWDM systems.

Consult

Product details

Description

100GHz DWDM AAWG Module (Athermal Arrayed Waveguide Grating) is a kind of passive module based on PLC (Planar Waveguide) technology, which does not need additional power supply or temperature control; Compared with traditional TFF (thin film filter) products, AAWG has the advantages of high integration, good uniformity, low PMD and low insertion loss. AAWG can provide a variety of channels, packaging methods and extended ports for customers to choose; At present, due to the multi-channel characteristics of DWDM AAWG, it is widely used in long-distance signal transmission such as MAN, backbone network and data.

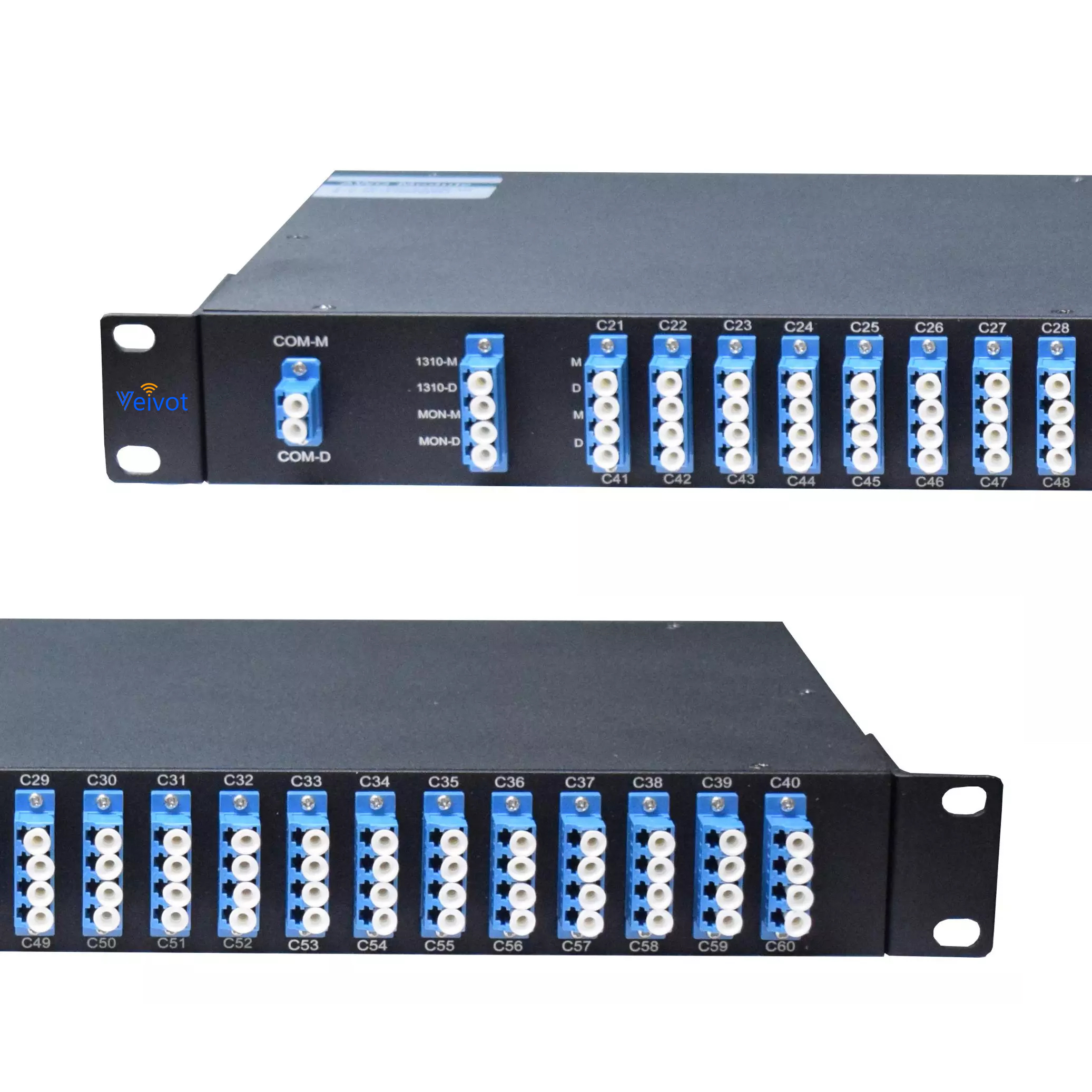

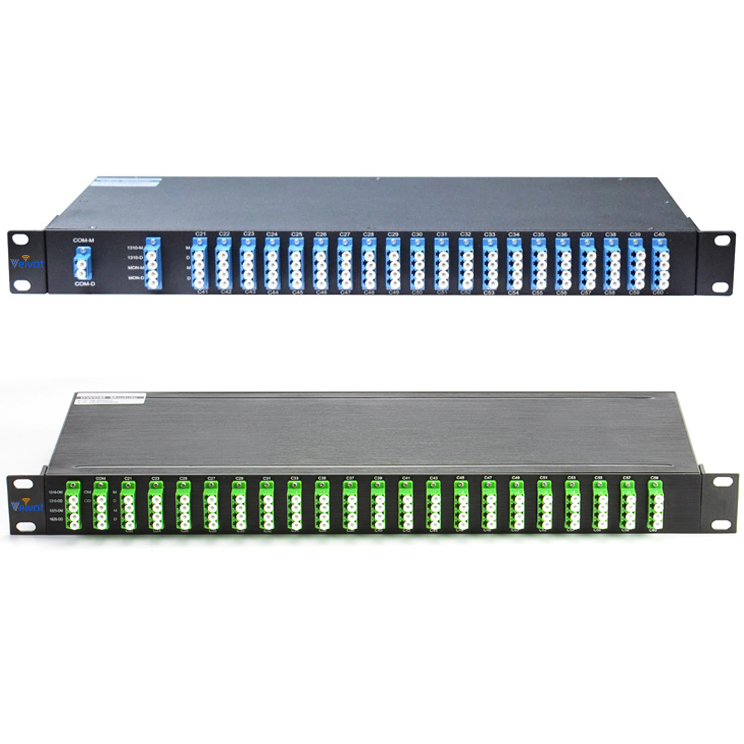

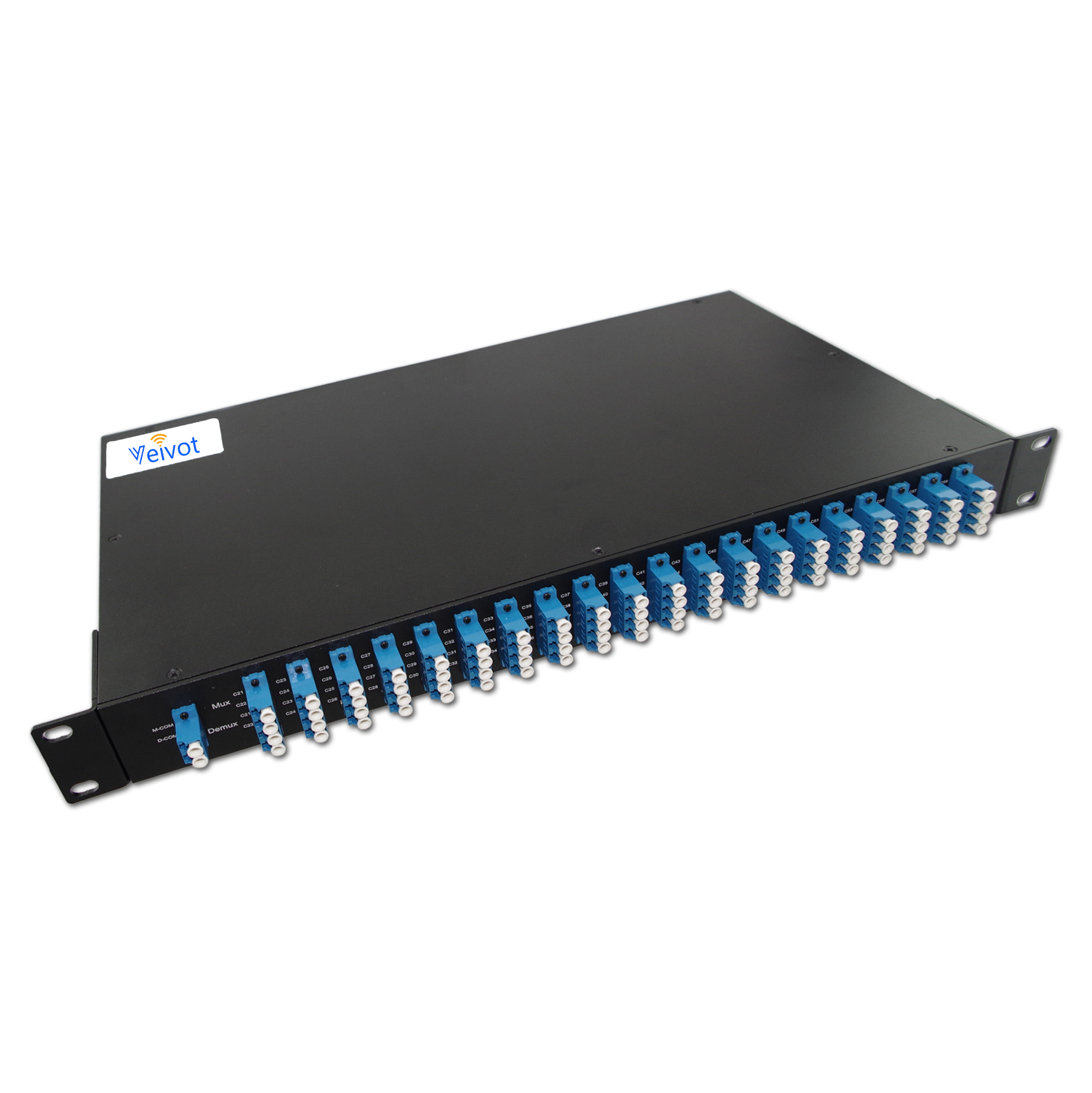

VEIVOT can provide different packages for different products, including compact box packaging and 19-inch 1U rack installation.

Features

Low Insertion Loss
Low PDL
Low chromatic dispersion
Established silica-on-silicon
Telcordia GR-1221-CORE qualified

Applications

DWDM transmission Metro Area
Networks Long Haul Networks Building
Optical add/drop multiplexing

Specifications

Parameter	Value
Product	AAWG
Channel Number	32-48CH
Channel Space	100Ghz
Central Wavelength	ITU 100G C Band grid
Operating wavelength	1528.77~1566.31nm
Center wavelength accuracy	±0.05nm
Insertion Loss	Flot Tap	Gaussian
	Typicle ≤5.0dB Max ≤6.5dB	Typicle ≤3.5dB Max ≤4.0dB
0.5dB Pass Band	≥0.1nm (≥12.5GHz)	≥0.1nm (≥12.5GHz)
1dB Pass Band	≥0.38nm (≥47.5GHz)	≥0.2nm (≥25GHz)
3dB Pass Band	≥0.58nm (≥72.5GHz)	≥0.40nm (≥50GHz)
Pass band Flatness(Ripple)	≤0.5dB	≤1.2dB
Adjacent Channel Isolation	≥25dB
Non-adjacent Channel Isolation	≥35dB
Polarization Mode Dispersion	≤0.5ps
Polarization Dependent Loss	≤0.5dB
Total Channel Isolation	>25dB
Chromatic Dispersion	±20ps/nm
Directivity	≥50dB
Return Loss	≥45dB
Operation Temperature	-5~+70°C
Storage Temperature	-40~+85°C
Package Dimension	1U Rack Mount

Note: All the data above does not include connectors and adapters.

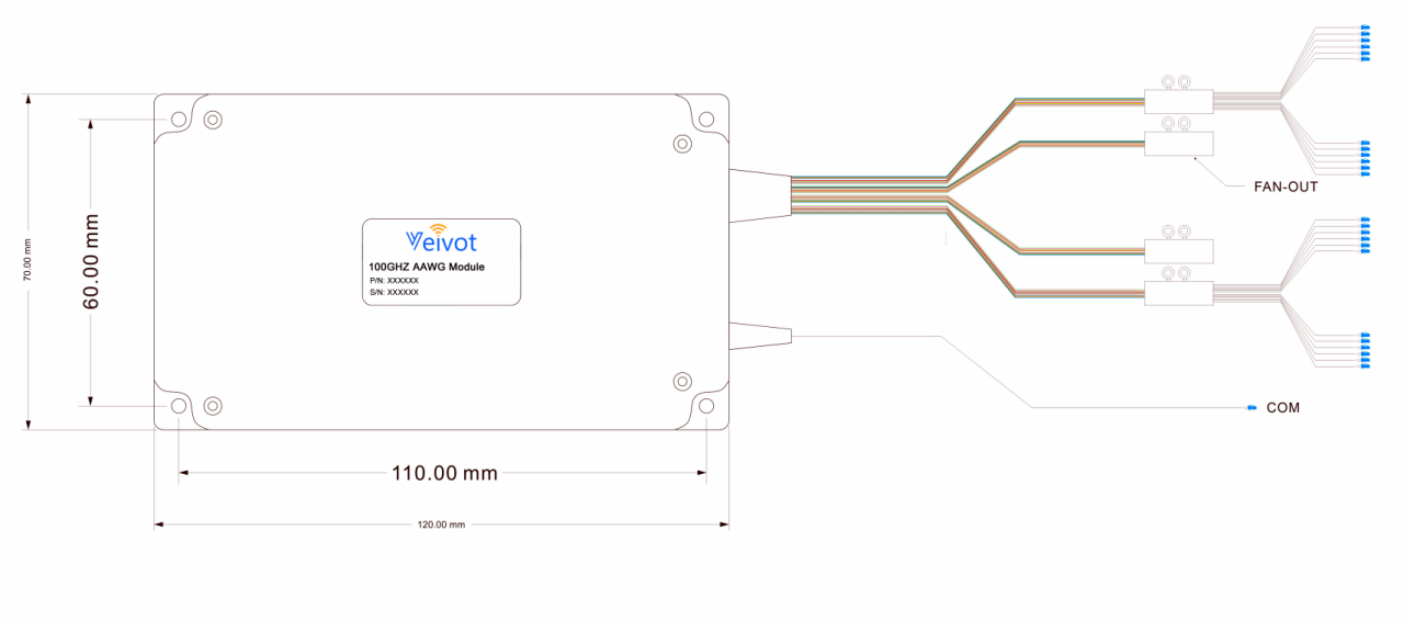

Module Drawing

32~48CH 100GHz AAWG.png

Order informaton

Filter Mode

Channel Spacing

Operating Band

Channel Number

First Channel

Pigtails Diameter

Fiber Length

Package Type

Connector Type

F=Flat-top
G=Gaussian

100=100GHz

C=C Band
L=L Band
CL=C&L Band
X=Others

32=32 Channels
40=40 Channels
48=48 Channels
XX=Others

C21=C21
C22=C22
L71=L71
…
(Refer to ITU Channel Table)

250=250μm

900=900μm

XX=Others

0.5M=0.5M
1M=1M
XX=OTHER

M=Module
1U=1U Rack Mount

LU=LC/UPC
LA=LC/APC

FU=FC/UPC
FA=FC/APC
SU=SC/UPC
SA=SC/APC
ST=ST/UPC
00=None
X=Others
