Description

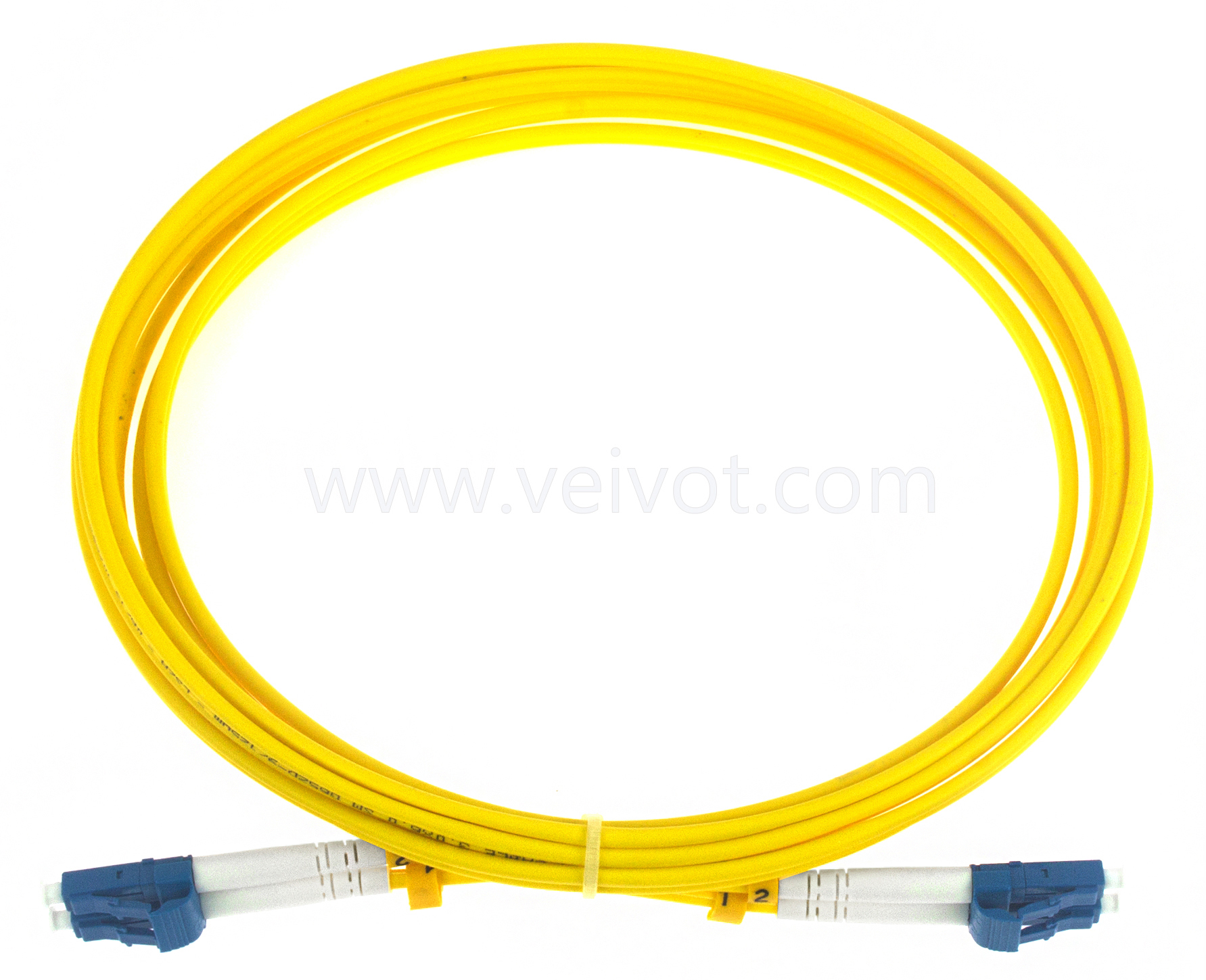

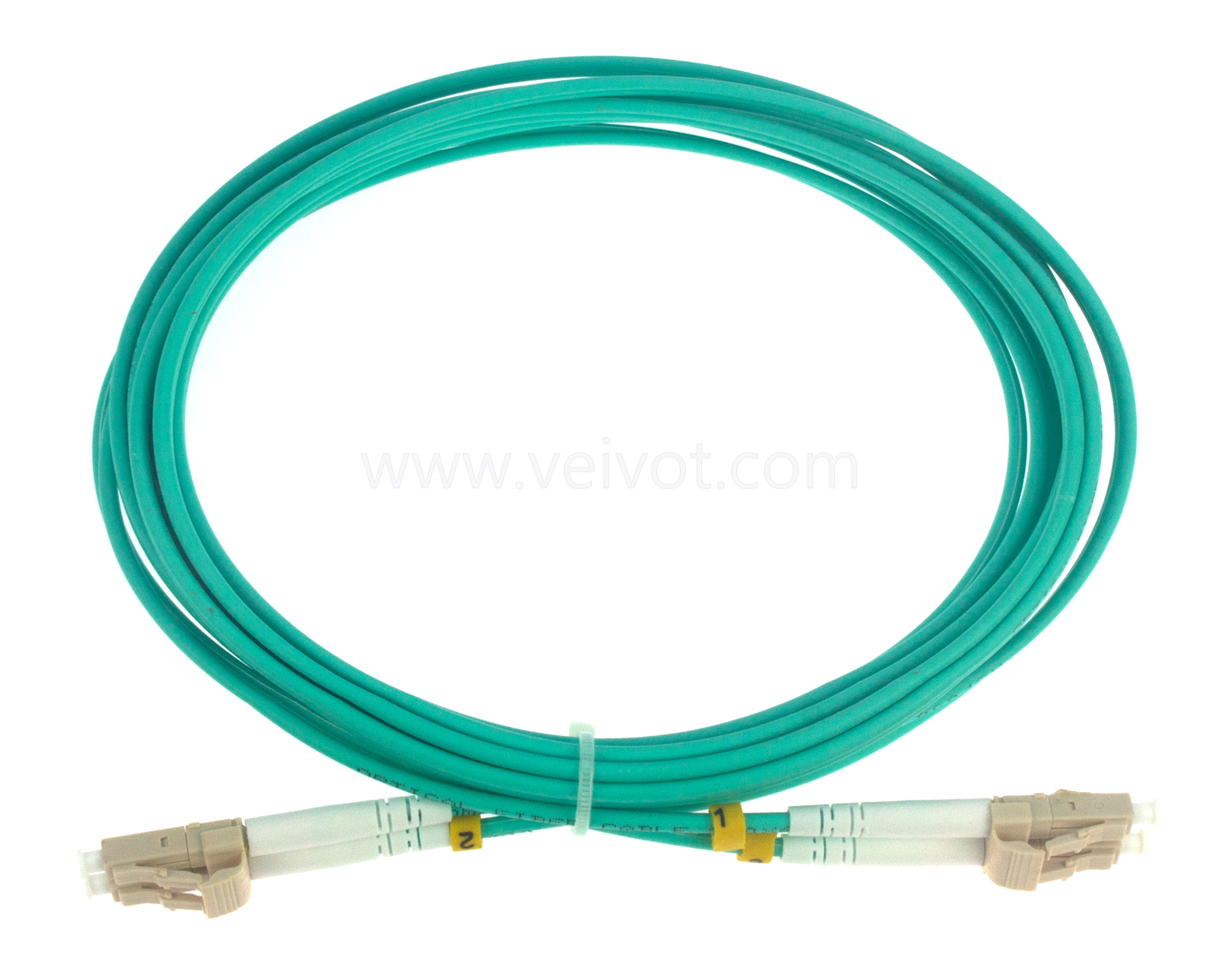

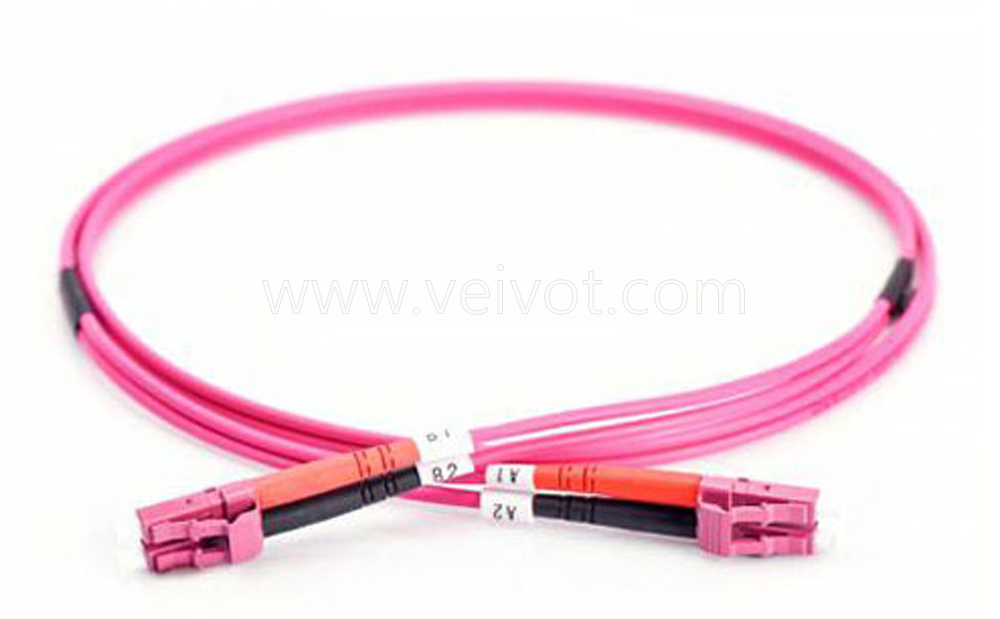

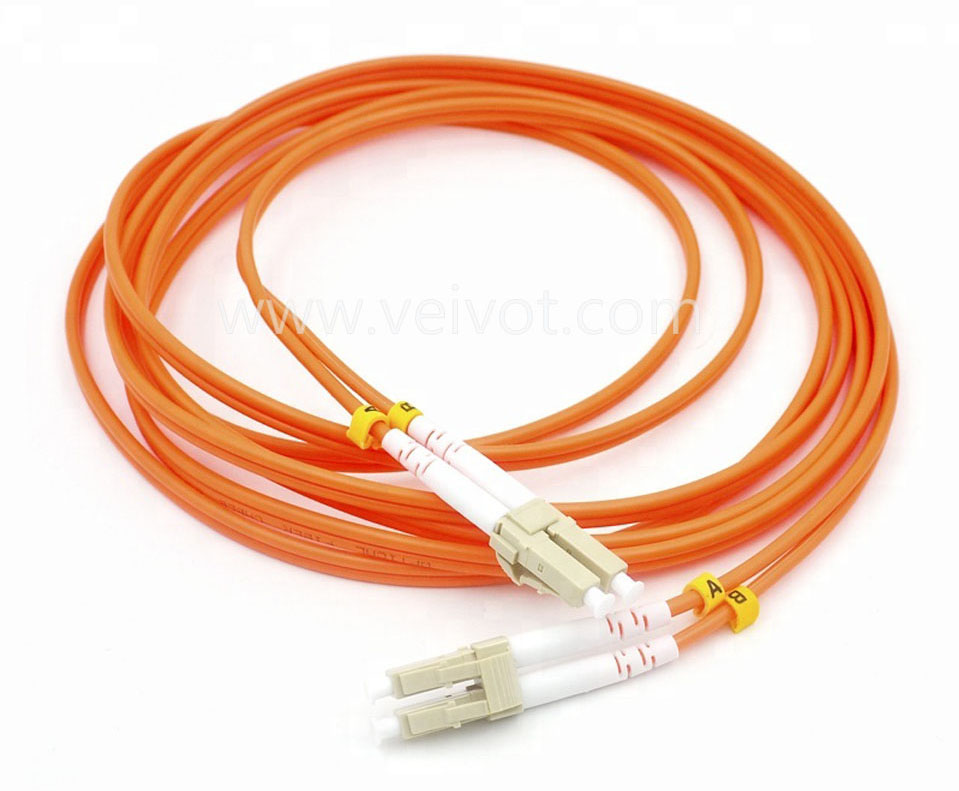

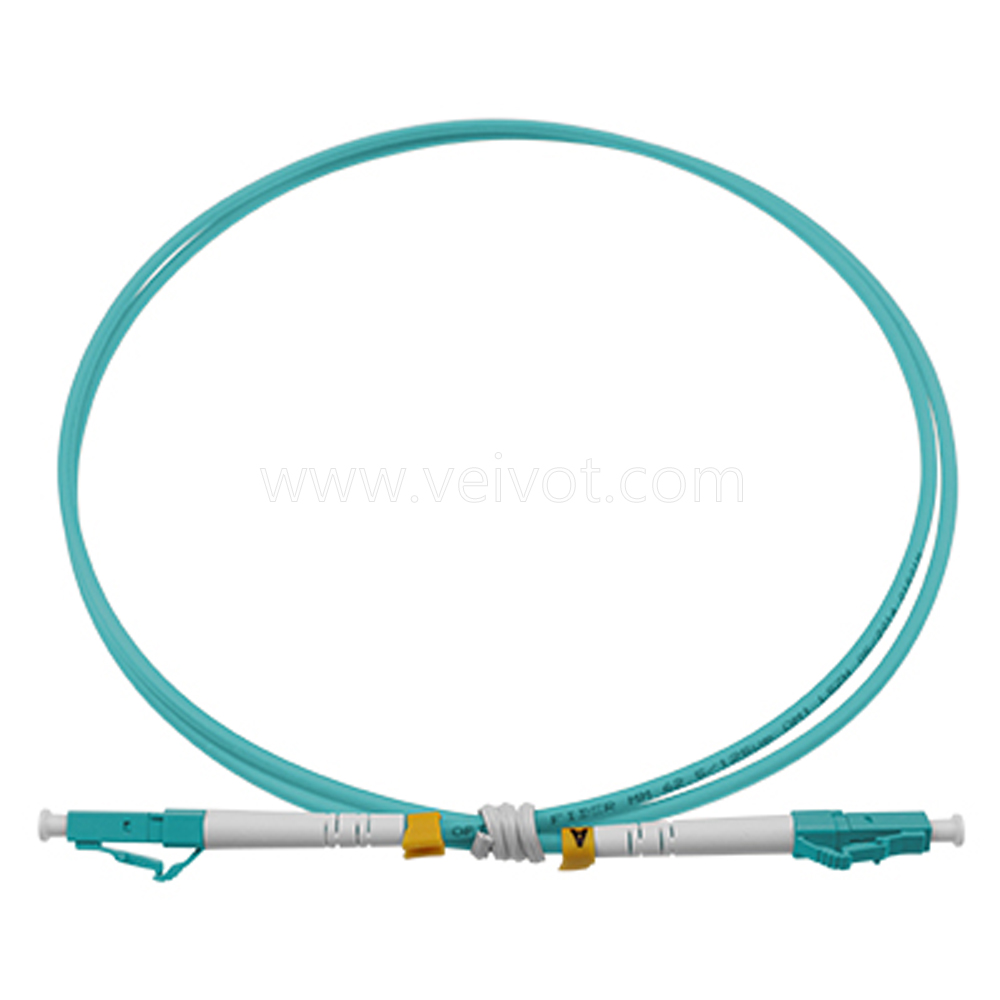

VEIVOT Indoor LC-LC patch cord or patch cable or jumper cable is a fiber-optic patch cable capped at either end with Fiber optic connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch,Optical Transceiver Modules SFP ,Media converter or other telecommunication and network equipment and switch. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.

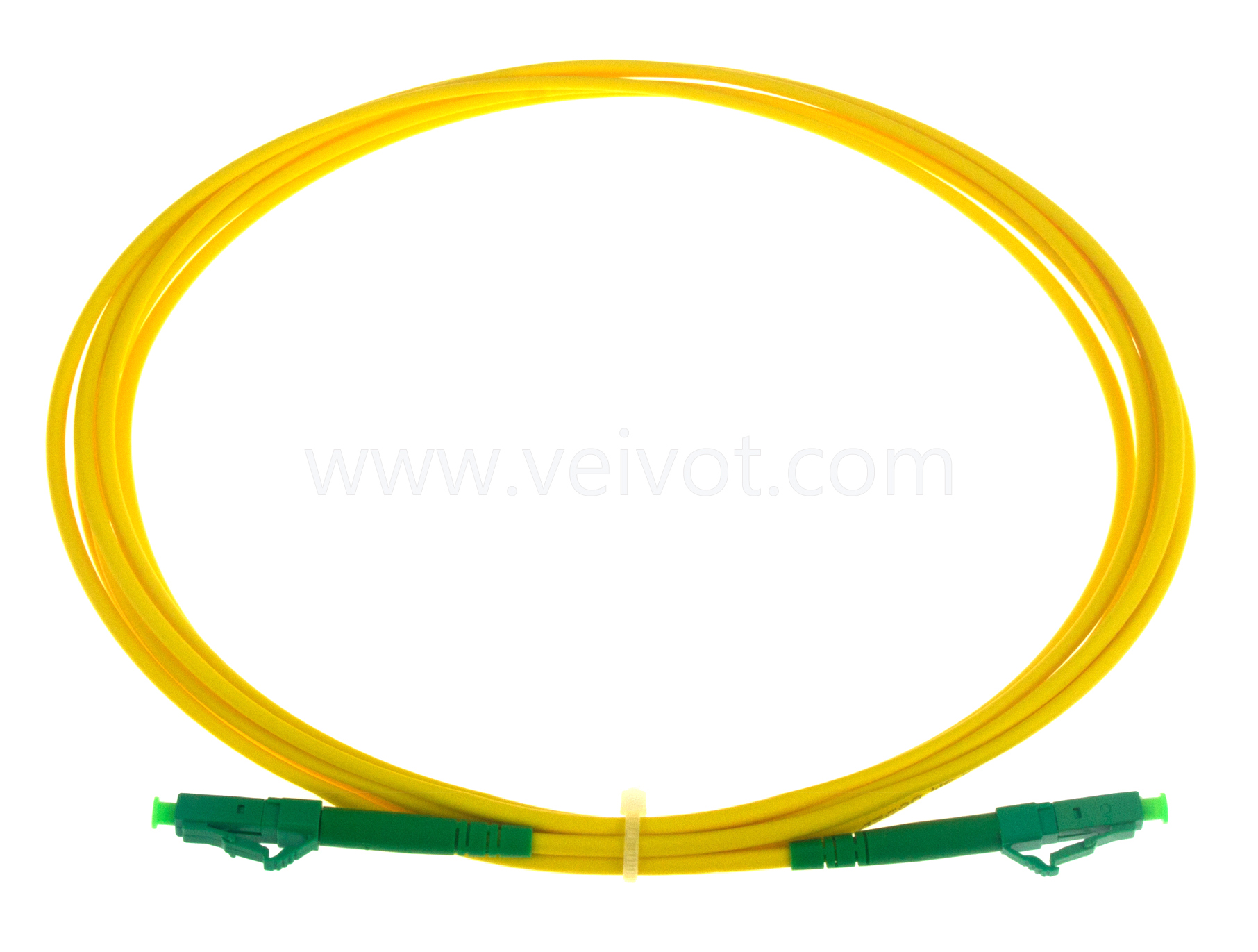

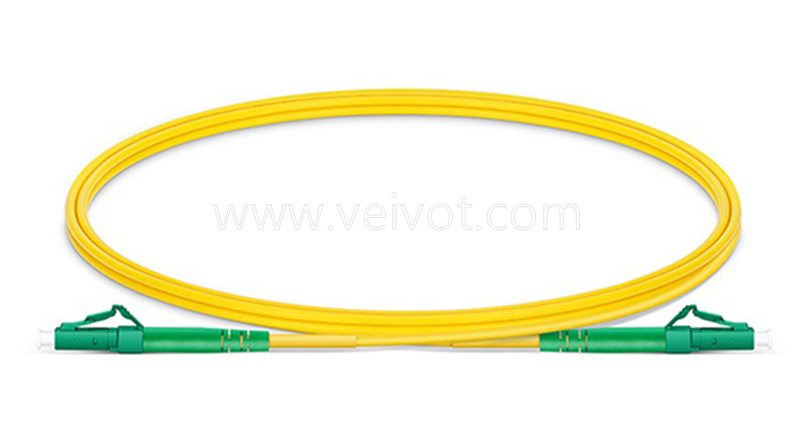

The LC (Lucent Connector) type connector has a sleeve structure with a diameter of 1.25mm. The abbreviations PC, UPC, and APC refer to the physical differences in the surface geometry of connectors on ceramic ferrules. UPC (Ultra Physical Contact) indicates that the ceramic ferrule structure on the connector has an additional polished flat structure; APC (Angular Physical Contact) indicates that the ceramic ferrule structure on the connector has an additional polished 8° angle structure.

Features

• Low insertion loss and High reflection loss

• Good exchange ability

• Good durability

• High temperature stability

• Standard:Telcordia GR-326-CORE

• Materials meet RoHS requirements

Applications

• CATV

• Telecommunication networks

• Active device termination

• Local area networks(LANS)

• Data processing networks

• Test equipment

• Wide area networks(WANS)

Optical fiber transmission distance

Specifications

Packing & Labeling

This easy to take and well-protected fiber optical cable package has been labeled and marked by us as default. Customized and OEM label or package solution are available on request.

Order informaton
