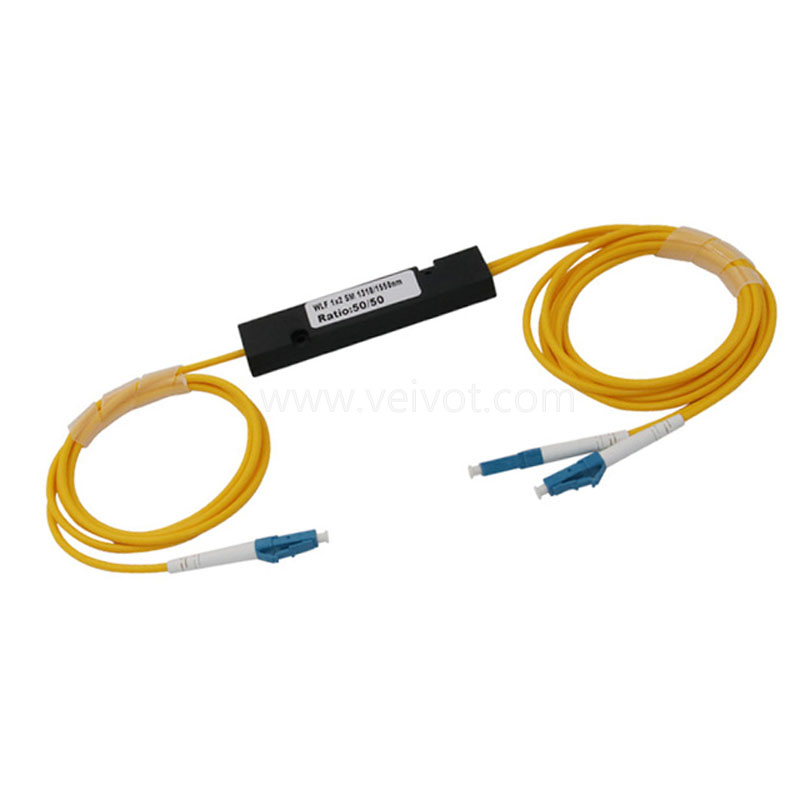

1x2 2x2 SM Three Window 1310/1490/1550nm FBT Coupler

Singlemode Three Window FBT Coupler / FBT Splitter

Port Configuration: 1x2, 2x2

Ratio: 1:99 to 50:50

Operating Wavelength: 1310/1490/1550±40nm

Packing: Micro Steel Tube, ABS Box Module

Consult

Product details

Introduction

VEIVOT's single mode dual window couplers 1x2 and 2x2 provide very low insertion loss, low polarization dependence, and excellent environmental stability. The precise coupling ratio ranges from 50/50 to 1/99, and the fiber types 250um bare fiber, 3mm and 900um loose tube fiber have very tight uniformity within the wide wavelength range of 1310nm, 1490nm and 1550nm windows. Single mode dual window couplers have extensive power allocation and monitoring functions in various optical communication systems.

Features

Ø Low insertion loss, low PDL

Ø High credibility and stability

Ø Industry standard and custom housing available

Ø Various coupling ratio and connector available

Applications

Ø Optical communication system

Ø CATV System

Ø System and signal monitoring

Ø Fiber to the home (FTTH)

Specification

Coupling Ratio	Insertion Loss(dB)
	P Grade	A Grade
50/50	≤3.4		≤3.6
45/55	≤3.7/2.7		≤3.8/2.9
40/60	≤4.4/2.6		≤4.7/2.8
35/65	≤4.8/2.0		≤4.9/2.10
30/70	≤5.7/1.9		≤6.0/2.0
25/75	≤6.9/1.3		≤6.5/1.4
20/80	≤7.6/1.2		≤8.0/1.3
15/85	≤8.6/0.7		≤8.9/0.88
10/90	≤11.0/0.65		≤11.5/0.8
5/95	≤14.2/0.4		≤14.8/0.5
2/98	≤18.5/0.25		≤19.0/0.35
1/99	≤21.5/0.2		≤22.0/0.3
Excess Loss(Typ.)(dB)	≤0.1
PDL(Max.)(dB)	≤0.1
Operating Wavelength(nm)	1310/1490/1550±40
Directivity(dB)	≥55
Return Loss(dB)	≥50
Port Configuration	1×2 or 2×2
Fiber Type	SMF
Operating Temperature(℃)	-20~+80
Storage Temperature(℃)	-40~+85

All measurement are made at room temperature, and connectors not included.

Packaging

Configuration		1×2 or 2×2
Fiber lead length		1 meter, others on request
Dimensions(Ф×L)	0.25mm steel tube type	Ф3mm×40mm, Ф3.0mm×54mm
	0.9mm steel tube type	Ф3.0mm×54mm
	0.9mm/2mm/3mm ABS box type	90mm×20mm×10mm
