EPFU/ABF Air Blown Fiber Unit 2-12C

EPFU (Enhanced Performance Fiber Unit) is a product with small diameter, light weight, high flexibility, and moderate stiffness, which can be blown into a microstructure of 5.0/3.5mm.

Consult

Product details

Description

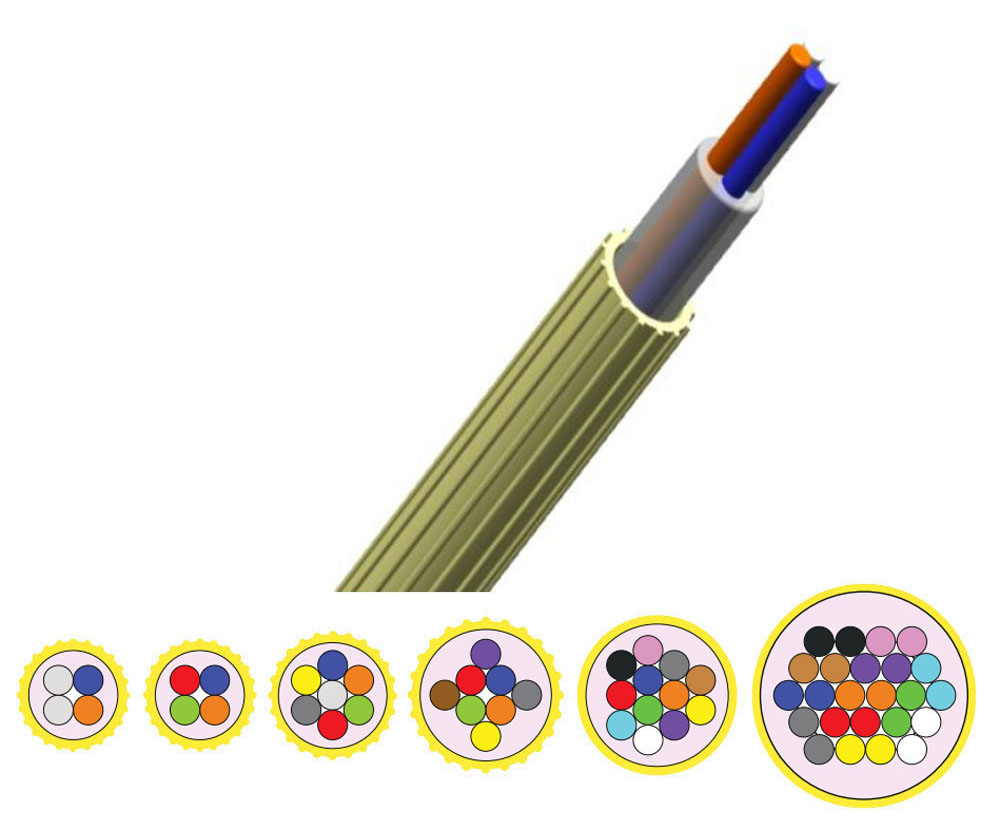

VEIVOT EPFU (Enhanced Performance Fiber Unit) is a product with small diameter, light weight, high flexibility, and moderate stiffness, which can be blown into a microstructure of 5.0/3.5mm. The fibers are coated with a layer of acrylic resin, which provides good size and thermal stability for buffering fibers. In addition, when connecting fibers, the resin can be easily peeled off. The outer sheath is a low friction thermoplastic. The surface of the sheath is designed with special grooves, which not only provides a high level of mechanical protection compared to the surface of traditional fiber optic cables, but also has perfect blowing performance.

Feature

Smaller diameter
Frees up capital to expand network and client base.
Network design flexibility
5.0/3.5mm microduct suitable.
Easy to upgrade
Greater blowing distance
Fiber type: G652D,G657A1,G657A2,G657B3,OM1,OM2,OM3,OM4,OM5

Specification

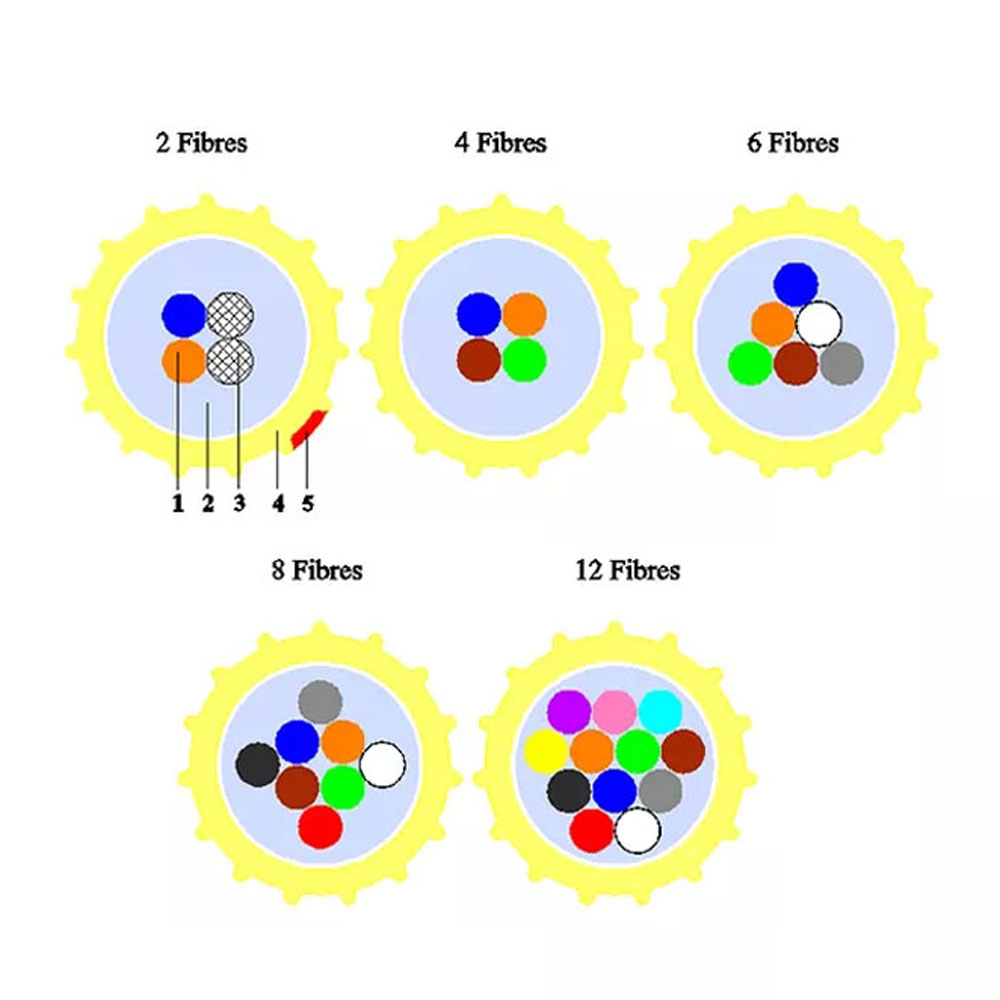

Items		Descriptions
Optical Fiber	Fiber count	2	4	6	8	12
	Color	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua
Fillers		False fiber
Sheath	Material	Low friction sheath
	Color	Yellow
	Shape	The sawtooth shape
Outere Diameter (mm)		1.2±0.1	1.2±0.1	1.4±0.1	1.6±0.1	1.8±0.1
Weight ±5% (kg/km)		1.5	1.5	2.1	2.9	3.7
Standard duct dimension (mm)		5.0/3.5
Note: It is recommended that the structure of 2 fibres unit consist of 2 filled fibres, for it is proved that 2 fibres unit with 2 filled fibres is better than the one with zero or one filled fibre in the blowing performance and the fibre stripping-ability.

Mechanical & Environmental Performance

Test	Standard	Parameters
Tension	IEC 60794-1-2-E1	Load is 1×W
Bend	IEC 60794-1-2-E11A	Diam 40mm×3turns 5 cycles at 20℃
Crush	IEC 60794-1-2-E3	100 N, 60s
Temperature Range	Storage: -30 ~ +70℃ Operation: -30 ~ +70℃ Installation: -5 ~ +50℃
Bending Radius	Dynamic	≥20D
Bending Radius	Static	≥10D
