Brand: VEIVOT
Fiber: 2-192 fibers
Description

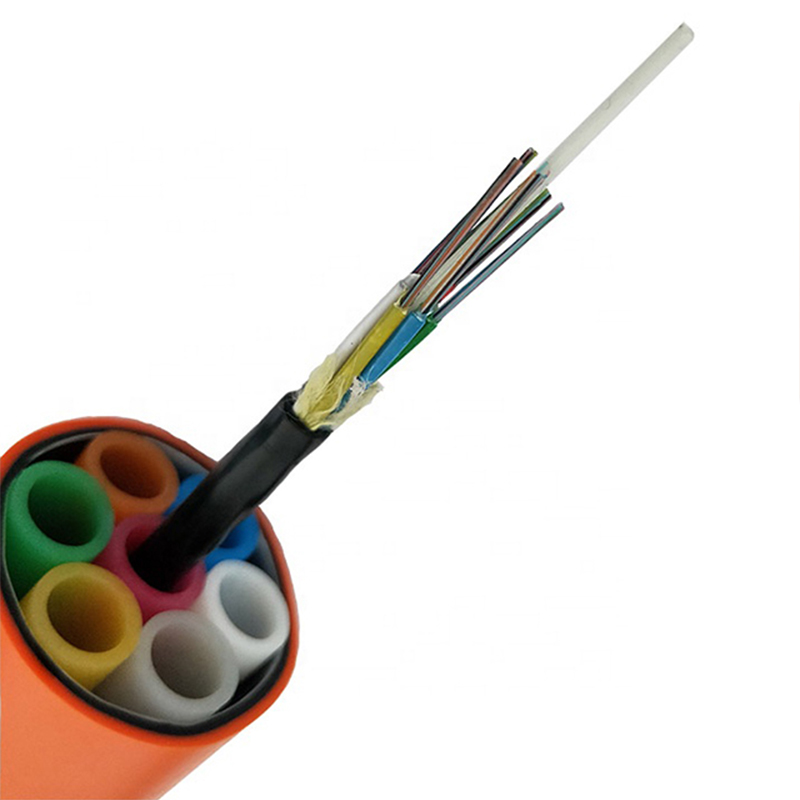

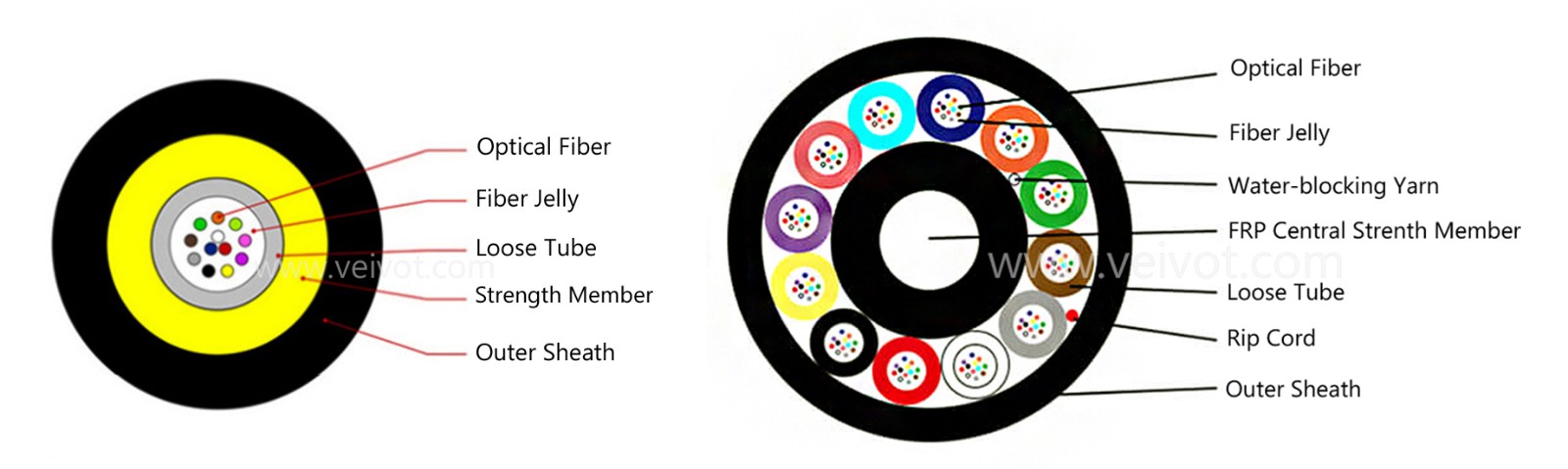

The VEIVOT GCYFXTY Air blown Micro Cable have one looe tube, water-blocking yarn or aramid yarn for a rip coard and high density polyethylene outer Jacket.

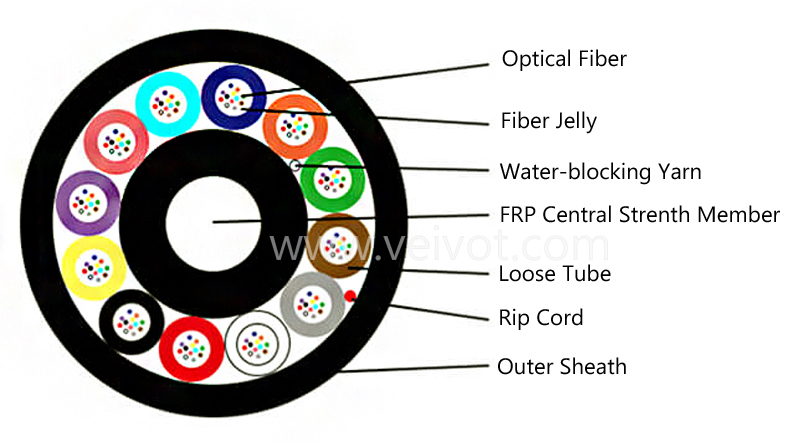

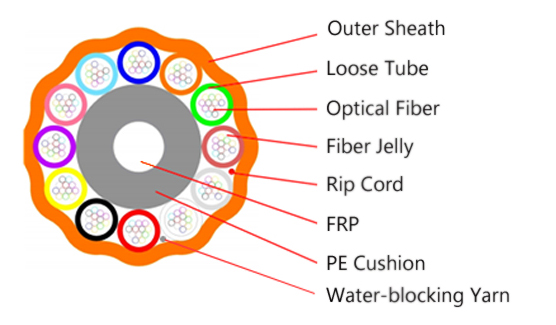

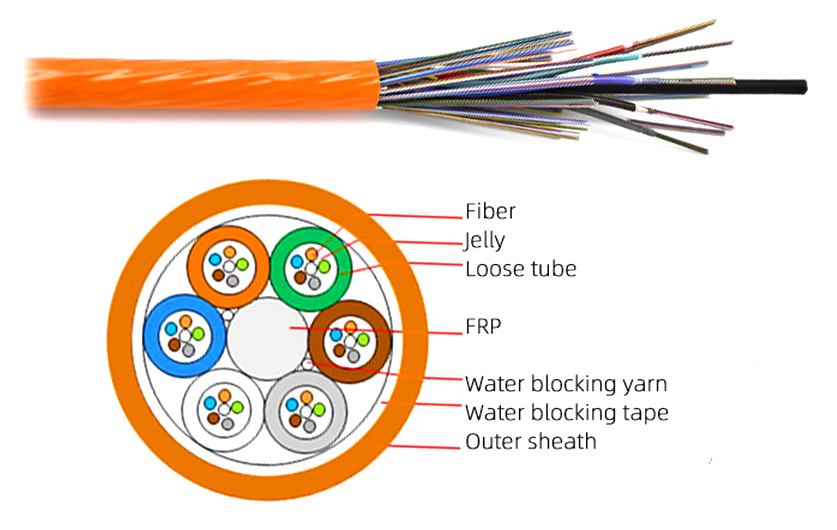

The VEIVOT GCYFTY Air blown Micro Cable have multi loose tubes, FRP central strength member, water-blocking yarn, an optional rip cord and high density polyethylene outer Jacket.
Features
Ø GCYFXTY Fiber counts: 2 ~ 24 fibers
Ø GCYFTY Fiber counts: 12 ~ 288 fibers
Ø Fiber Type: G652D;G657A1;G657A2;G657B3;OM1;OM2,OM3,OM4;OM5
Ø Outer jacket: HDPE
Application
Ø Using microtubule resources, especially for the backbone network, access network and fiber to the home;
Ø Cabling costs are low and suitable for upgrading the old city and building network.
Transmission performance
Fiber Type | 9/125um G652D | 9/125um G655C | 62.5/125um OM1 | 50/125um OM2-OM5 |
Max. Attenuation (dB/km) | 0.36/0.22 | 0.22/0.26 | 3.5/1.5 | 3.5/1.5 |
Typical. Attenuation (dB/km) | 0.35/0.21 | 0.21/0.24 | 3.5/1.5 | 3.0/1.0 |
Structure parameters of optical cable
Cable Type | Fiber Count | Tube No. * Fiber per tube | Filler count | Tube diameter | Sheath thickness | Outer diameter | Weight | Micro tube diameter |
mm | mm | mm | kg/km | mm | ||||
GCYFXTY | 12 | 1*12 | 0 | 2.8 | 0.5 | 4 | 13 | 7.0/5.5 |
GCYFXTY | 24 | 1*24 | 0 | 3.2 | 0.5 | 4.4 | 16 | 8.0/6.0 |
GCYFTY | 12 | 1*12 | 5 | 1.55 | 0.45 | 5.6 | 23 | 10.0/8.0 |
GCYFTY | 24 | 2*12 | 4 | 1.55 | 0.45 | 5.6 | 23 | 10.0/8.0 |
GCYFTY | 36 | 3*12 | 3 | 1.55 | 0.45 | 5.6 | 23 | 10.0/8.0 |
GCYFTY | 48 | 4*12 | 2 | 1.55 | 0.45 | 5.6 | 23 | 10.0/8.0 |
GCYFTY | 60 | 5*12 | 1 | 1.55 | 0.45 | 5.6 | 23 | 10.0/8.0 |
GCYFTY | 72 | 6*12 | 0 | 1.55 | 0.45 | 5.6 | 23 | 10.0/8.0 |
GCYFTY | 96 | 8*12 | 0 | 1.55 | 0.5 | 6.6 | 34 | 10.0/8.0 |
GCYFTY | 144 | 12*12 | 0 | 1.55 | 0.5 | 8.6 | 60 | 14.0/11.5 |
GCYFTY | 192 | 16*12 | 0 | 1.55 | 0.5 | 8.6 | 65 | 14.0/11.5 |
Mechanical & Environmental Performance
Item | Contents | Unit | Parameters |
Max. Tensile Strength | Short term | N | 120 |
Long term | N | 60 | |
Min. Bending Radius | Operation | mm | 10 times of cable diameter |
Installation | mm | 20 times of cable diameter | |
Applicable temperature range | Operation | ℃ | -40 ~ +70 |
Installation | ℃ | -20 ~ +60 | |
Storage & Shipping | ℃ | -40 ~ +70 |
