Type: Uni-tube Air-Blown Micro Fiber Optic Cable
Brand: VEIVOT
Fiber: 2-24 fibers
Description

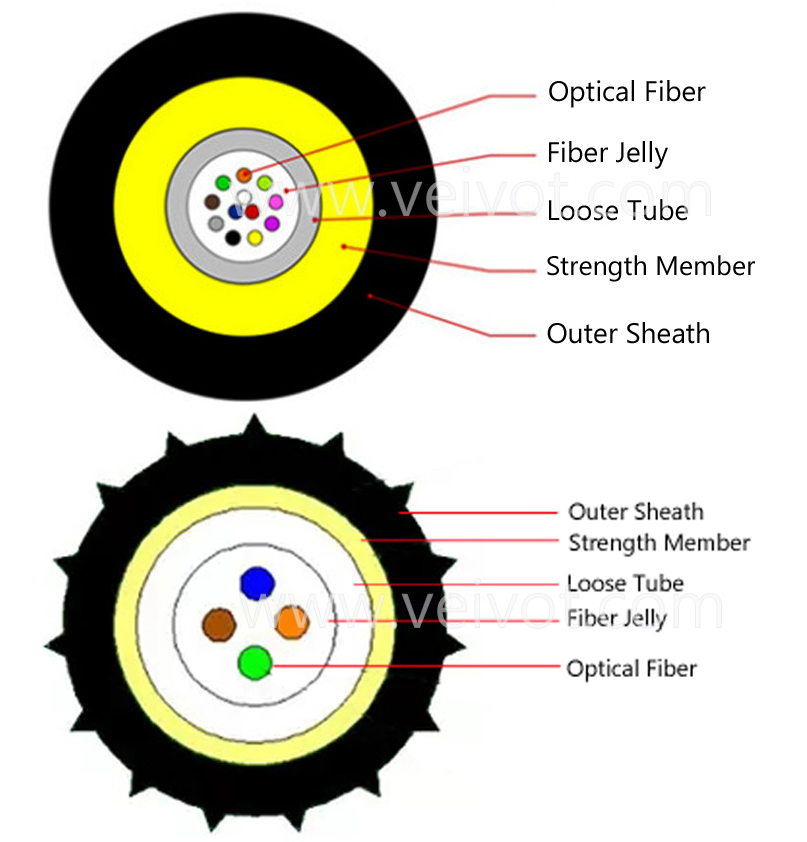

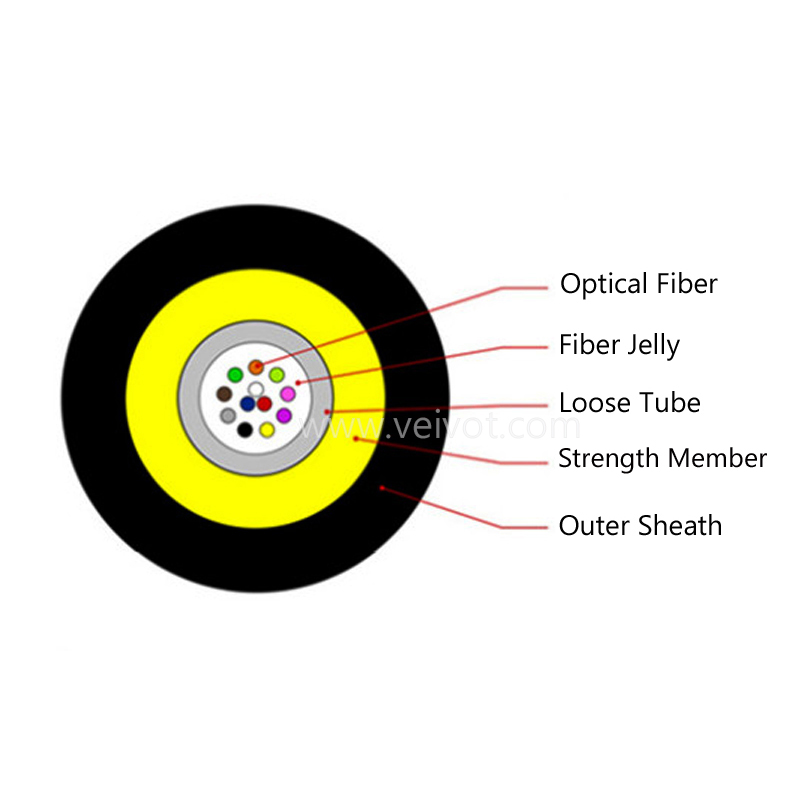

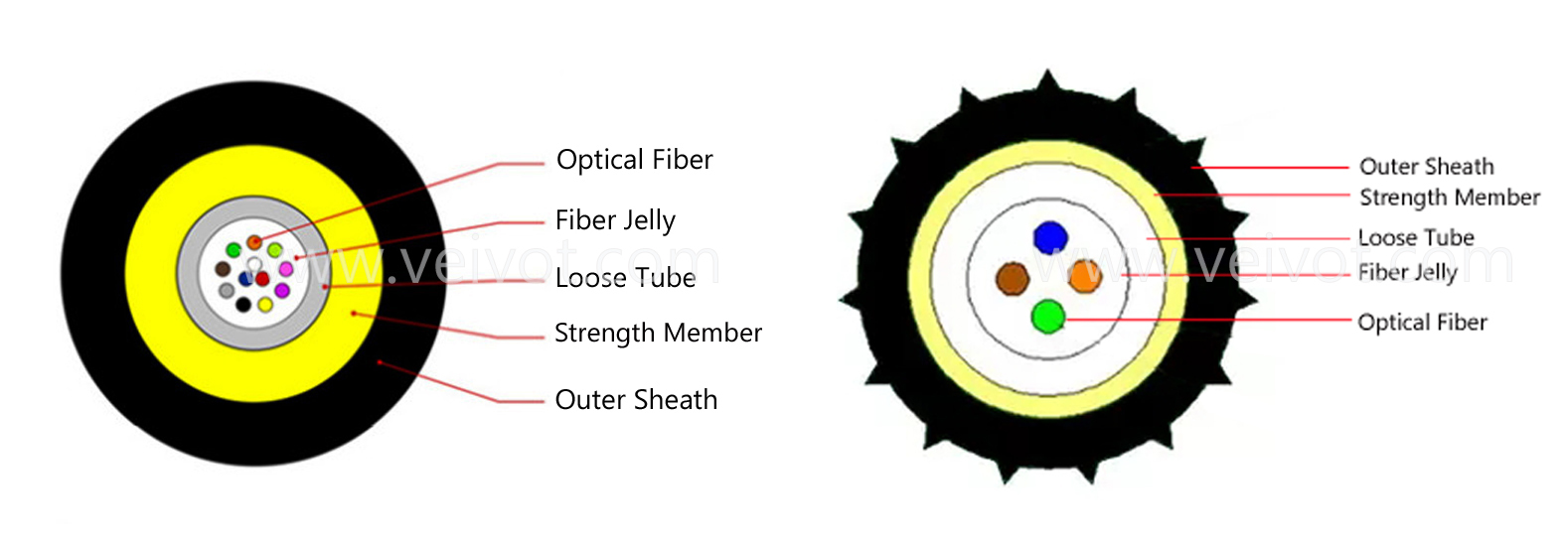

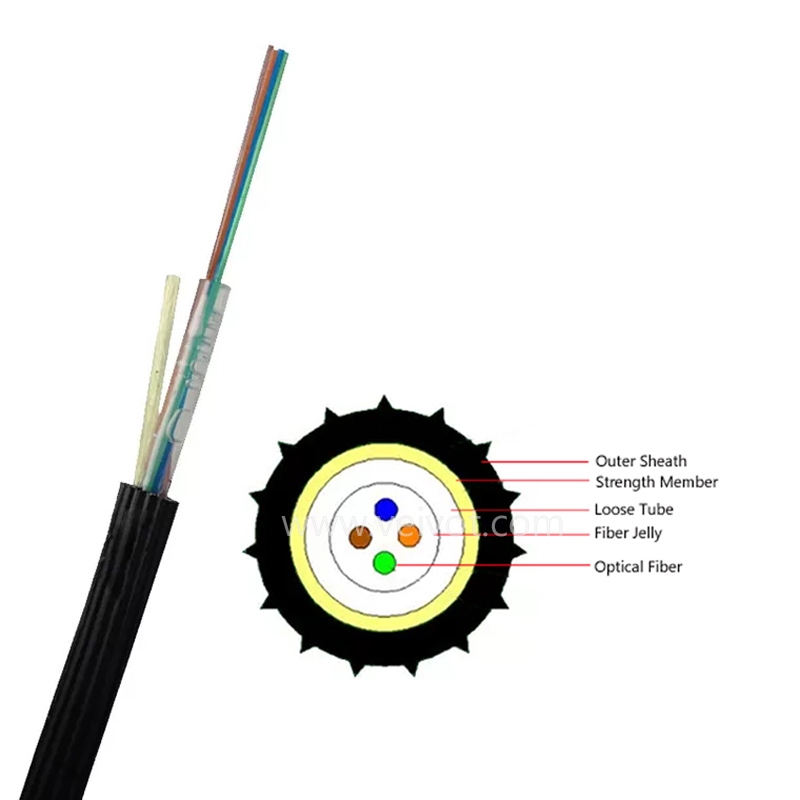

The VEIVOT GCYFXTY Air blown Micro Uni-tube Fiber Optic Cable is housed in a loose tube that are made of high-modulus plastic (PBT) and filled with water resistant filling compound. The aramid yarns can be applied outside the loose tube, An extremely thin Polyethylene (PE) is extruded as outer sheath.
Features
Fiber counts: 2 ~ 24 fibers
Fiber Type: G652D;G657A1;G657A2;G657B3;OM1;OM2;OM3;OM4;OM5
Outer jacket: HDPE
Application
Using microtubule resources, especially for the backbone network, access network and fiber to the home;
Cabling costs are low and suitable for upgrading the old city and building network.
Transmission performance
Fiber Type | 9/125um G652D | 9/125um G655C | 62.5/125um OM1 | 50/125um OM2-OM5 |
Max. Attenuation (dB/km) | 0.36/0.22 | 0.22/0.26 | 3.5/1.5 | 3.5/1.5 |
Typical. Attenuation (dB/km) | 0.35/0.21 | 0.21/0.24 | 3.5/1.5 | 3.0/1.0 |
Structure parameters of optical cable
Item | Contents | Unit | Parameters | |
Fiber | Count | / | 2~12 | 14~24 |
Cable structure | / | / | Uni-tube | |
Loose tube | Material | / | PBT | |
Color | White | |||
Strength member | Material | / | Aramid yarn | |
Outer sheath | Material | / | HDPE | |
Color | / | Black or upon request. | ||
Nominal Thickness | mm | 0.35 | ||
Cable diameter | ±0.2 | mm | 2.5 | 4.0 |
Cable weight | ±10% | kg/km | 5 | 16 |
Mechanical & Environmental Performance
Item | Contents | Unit | Parameters |
Max. Tensile Strength | Short term | N | 120 |
Long term | N | 60 | |
Min. Bending Radius | Operation | mm | 10 times of cable diameter |
Installation | mm | 20 times of cable diameter | |
Applicable temperature range | Operation | ℃ | -40 ~ +70 |
Installation | ℃ | -20 ~ +60 | |
Storage & Shipping | ℃ | -40 ~ +70 |
