Description

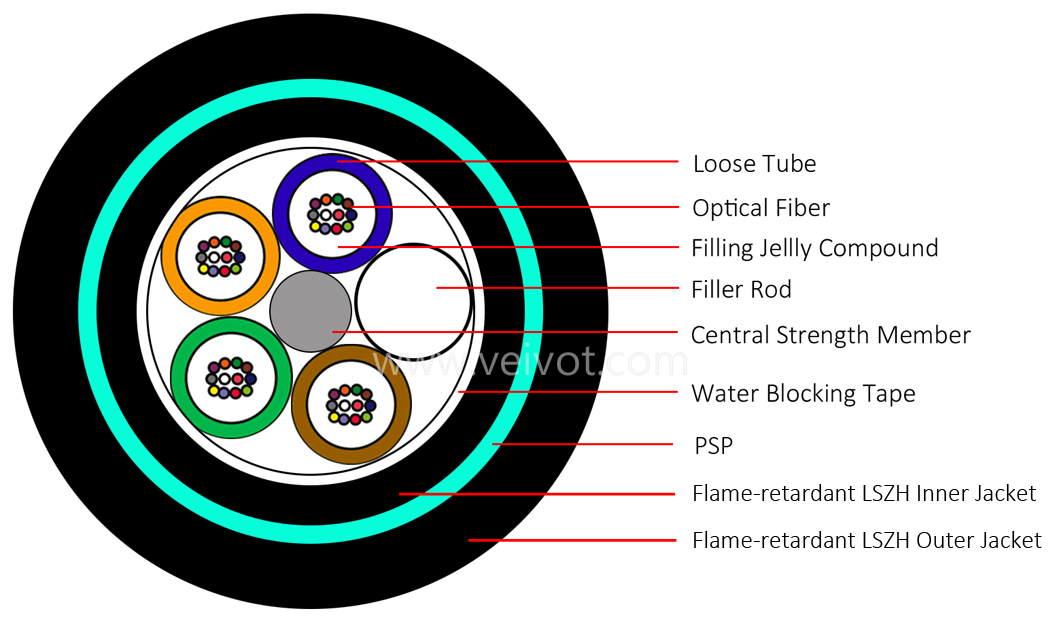

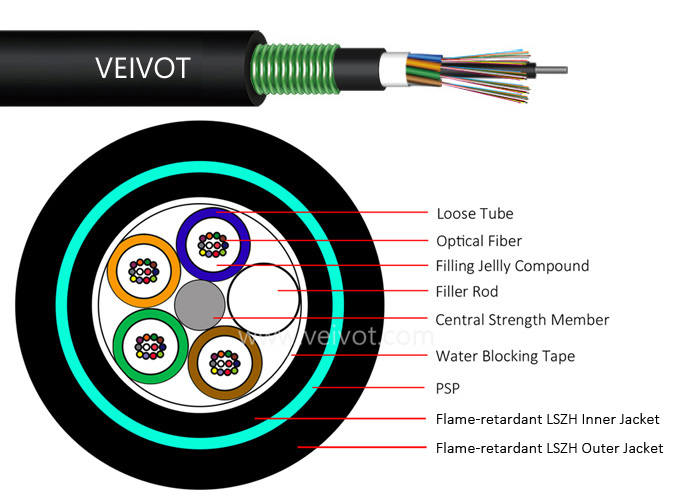

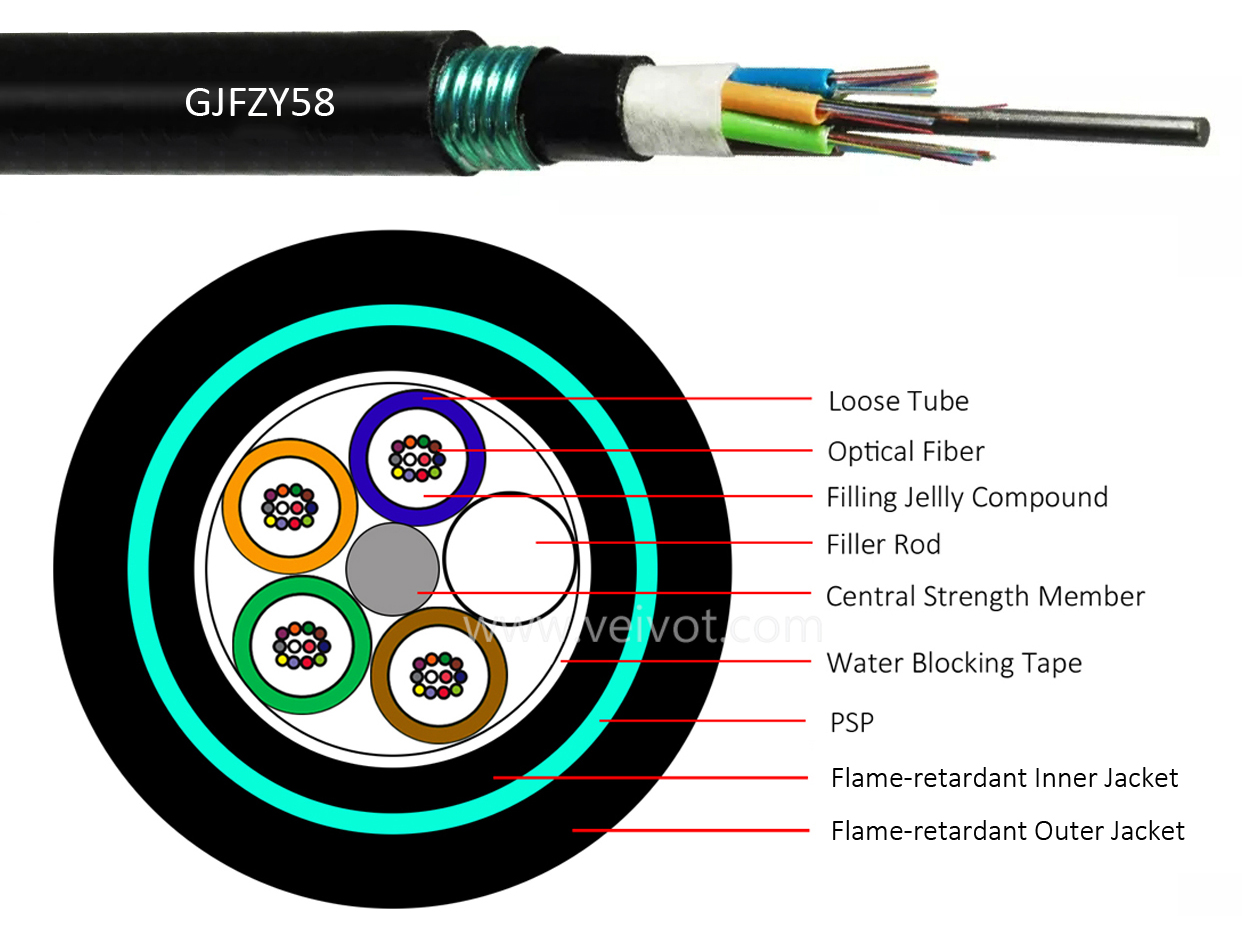

The structure of GJFZY58 optical fiber cable: 250um optical fibers are placed in loose tubes made of high modulus plastic. The loose tube is filled with waterproof filling compound. The center strength member is a FRP (Fiber Reinforced Polymer), and for some optical cables with a number of cores, a layer of Flame-retardant jacket needs to be extruded outside the steel wire or FRP. The loose tubes (and fillers) are stranded around the central strength component to form a compact circular core, and the gaps inside the cable core are filled with waterproof fillers. A layer of polyethylene inner sheath is extruded from the cable core, and double-sided plastic coated steel strip (PSP) is longitudinally coated and wrapped with Flame-retardant jacket to form the cable.

Features

• Fiber counts: 2-288 fibers

• Fiber Type: G652D; G657A1; G657A2; G657B3; G655C; OM1; OM2; OM3; OM4; OM5

• Excellent mechanical and temperature properties are guaranteed by precise excess fibers.

• The key protection of fiber is based on excellent hydrolysis resistance.

• It has excellent compression resistance and flexibility.

• PSP enhancing misture-proof performance

• It has good UV resistance, Flame-retardant jacket, and easy installation.

Application

Outdoor duct, buried directly and overhead

Structure parameters of optical cable

Mechanical & Environmental Performance
