Brand: VEIVOT
Fiber Optic Cable: GYTY33 Fiber Optic Cable
Fiber Type: G.652D or other fiber
Application: Direct Buried
Description

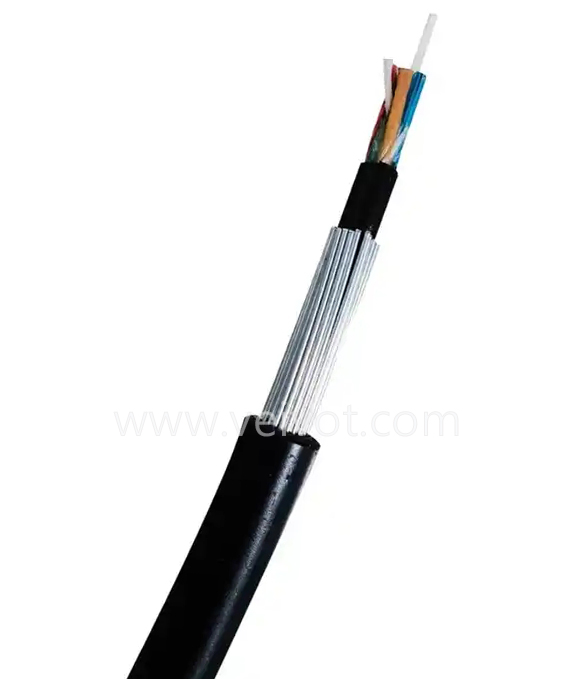

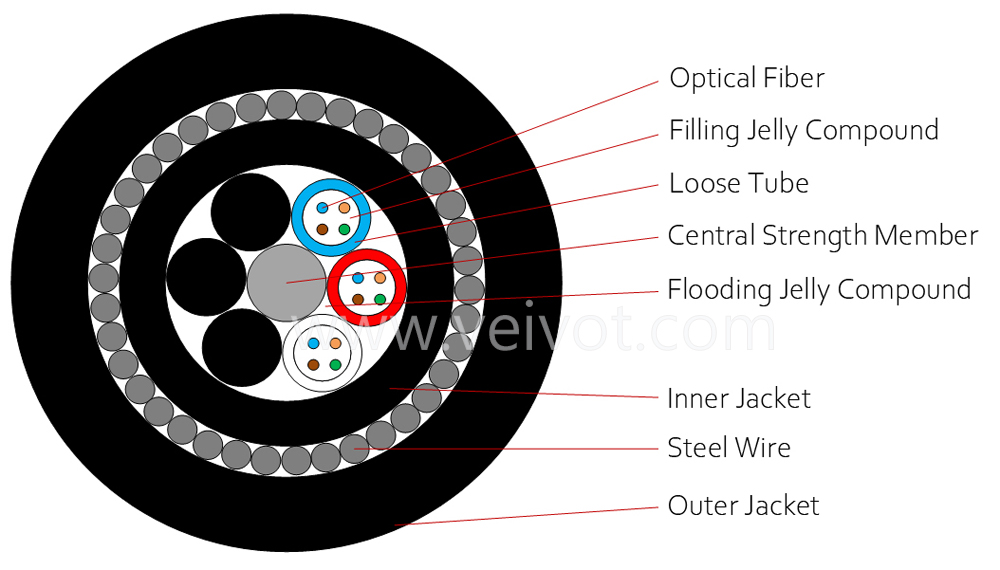

GYTY33: Stranded Loose Tubes, Steel Wire Central Strength Member, Flooding Jelly Compound, PE Inner Jacket, Multi Small Steel Wires Armoring, PE Outer Jacket.
GYTY33 cable is particularly suitable for installation in underground buried directly.
Features
Fiber counts: 2 ~ 288 fibers
Fiber Type: G652D; G657A1; G657A2; G657B3; G655C; OM1; OM2; OM3; OM4; OM5
Inner/Outer jacket: PE
Excellent mechanical and temperature properties are guaranteed by precise excess fibers.
The key protection of fiber is based on excellent hydrolysis resistance.
It has excellent compression resistance and flexibility.
The steel wires ensure tensile strength.
Application
Outdoor direct buried
Transmission performance
Fiber Type | 9/125um G652D | 9/125um G655C | 62.5/125um OM1 | 50/125um OM2-OM5 |
Max. Attenuation (dB/km) | 0.36/0.22 | 0.22/0.26 | 3.5/1.5 | 3.5/1.5 |
Typical. Attenuation (dB/km) | 0.35/0.21 | 0.21/0.24 | 3.5/1.5 | 3.0/1.0 |
Structure parameters of optical cable
Fiber Count | Structure | Loose Tube | CSM | Water Blocking | Inner Jacket | Peripheral reinforcement | Outer Jacket | Diameter (mm) | Approx Weight (kg/km) |
2-30 | 1+5 | PBT | Steel Wire | Flooding Jelly Compound | PE | Steel Wires | PE | 11.8 | 234 |
32-36 | 1+6 | 12.2 | 253 | ||||||
38-60 | 1+5 | 12.9 | 284 | ||||||
62-72 | 1+6 | 13.2 | 300 | ||||||
74-84 | 1+7 | 14. 1 | 329 | ||||||
86-96 | 1+8 | 14. 8 | 353 | ||||||
98-108 | 1+9 | 15. 6 | 403 | ||||||
110-120 | 1+10 | 16. 2 | 431 | ||||||
122-132 | 1+11 | 17. 3 | 524 | ||||||
134-144 | 1+12 | 17. 9 | 549 | ||||||
146-216 | 1+6+12 | 17. 4 | 469 | ||||||
218-288 | 1+9+15 | 19. 5 | 566 |
Mechanical & Environmental Performance
Item | Contents | Unit | Parameters |
Max. Tensile Strength | Short term | N | 10000 |
Long term | N | 4000 | |
Max. Crush | Short term | N/100mm | 5000 |
Long term | N/100mm | 3000 | |
Min. Bending Radius | Operation | mm | 12.5 times of cable diameter |
Installation | mm | 25 times of cable diameter | |
Applicable Temperature Range | Operation | ℃ | -40 ~ +70 |
Installation | ℃ | -20 ~ +60 | |
Storage & Shipping | ℃ | -40 ~ +70 |
