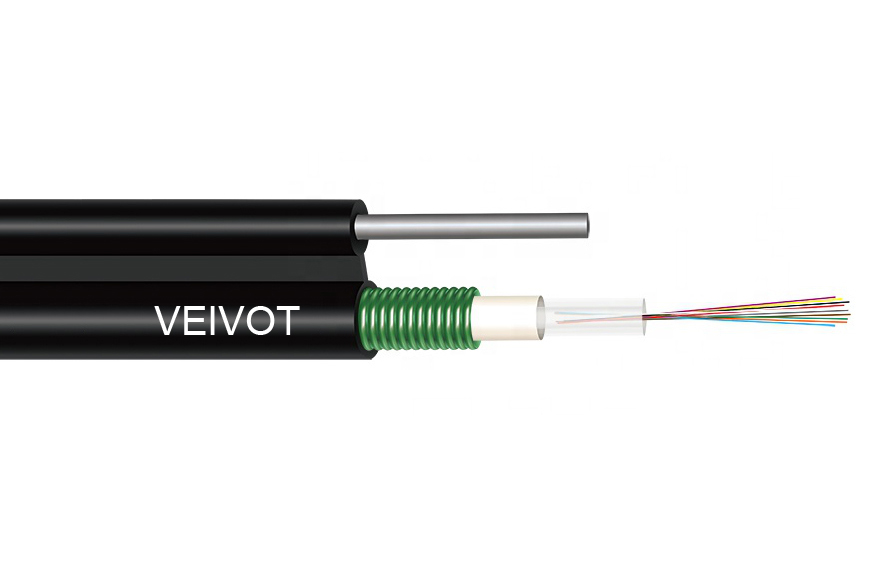

VEIVOT GYXTC8S PSP Corrugated Steel Tape Armored Uni-tube Aerial Installation Figure-8 Self-supporting Fiber Optical Cable
Description
GYXTC8S optical cable is a communication outdoor optical cable with a central tube loose sleeve filling type, steel polyethylene bonding sheath, and 8-shaped self-supporting type.
Features
Fiber counts: 4 ~ 24 fibers
Fiber Type: G652D; G657A1; G657A2; G655C; OM1; OM2; OM3; OM4; OM5
Outer jacket: MDPE; HDPE
Excellent mechanical and temperature properties are guaranteed by precise excess fibers.
The key protection of fiber is based on excellent hydrolysis resistance.
It has excellent compression resistance and flexibility.
Corrugated steel tape enhances the compression resistance, impact resistance, and moisture resistance of the cable.
It has good UV resistance, PE sheath, and easy installation.
Small diameter
Application
Outdoor aerial
Standard
YD/T 1155-2001
IEC 60794-1
TIA/EIA 598 A

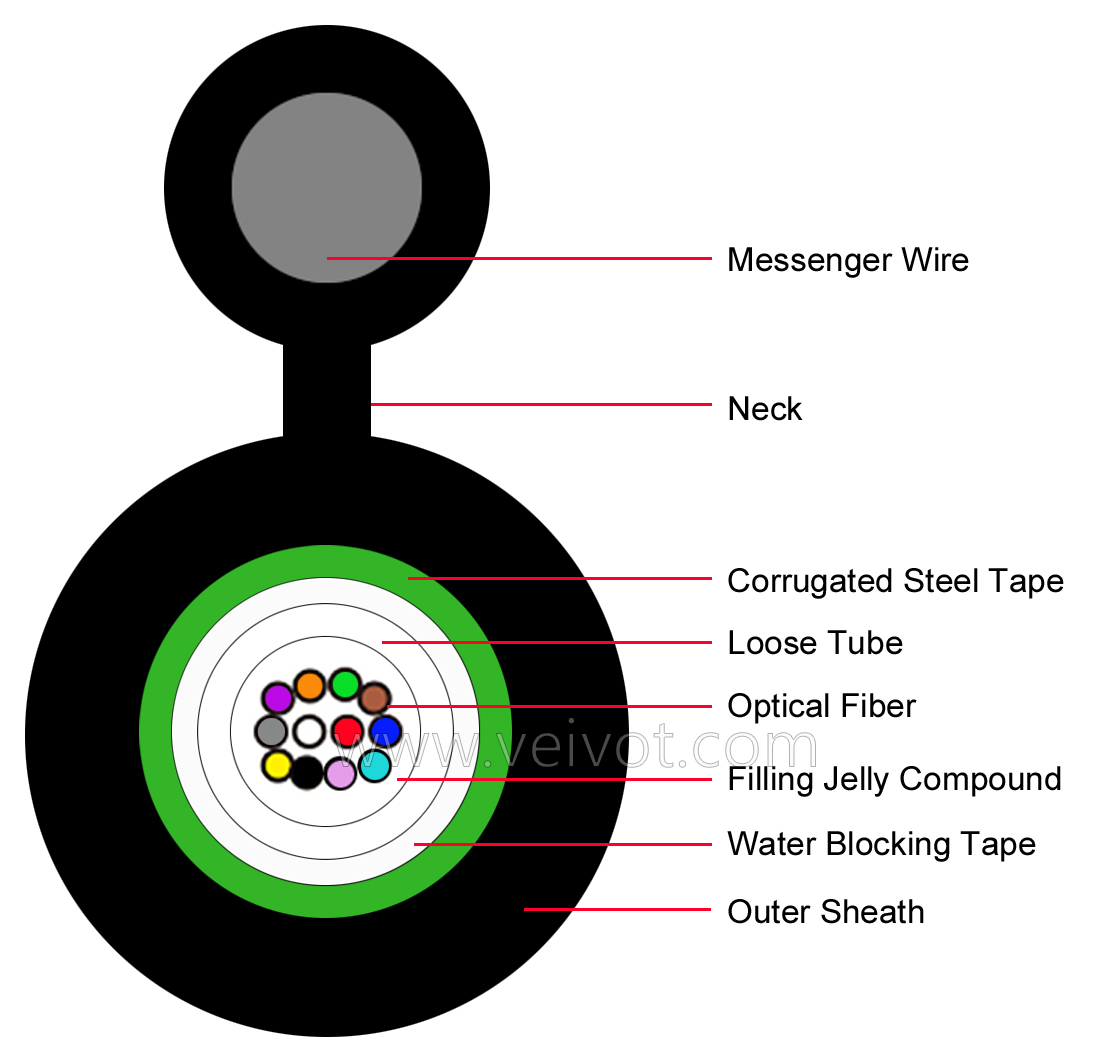

Structure parameters of optical cable
Item | Contents | Unit | Parameters | |
Optical Fiber | Count | / | 2-12 | 14-24 |
Cable Structure | / | / | Uni-tube | |
Loose Tube | Count | / | 1 | |
Material | / | PBT | ||
Outer Diameter | mm | 2.0 | 3.0 | |
Water Blocking | Material | / | Water Blocking Tape | |
Armor | Material | / | Corrugated Steel Tape | |
Outer Jacket | Material | / | PE | |
Color | / | Black | ||
Messenger | Material | / | Steel Wire | |
Wire Diameter | mm | 2.0 | ||
Thickness | mm | 0.9 | ||
Diameter | mm | 3.8 | ||
Cable Diameter | ±0.5 | mm | 7.0*12.8 | 8.0*13.8 |
Cable Weight | ±10% | kg/km | 85 | 98 |
Mechanical & Environmental Performance
Item | Contents | Unit | Parameters |
Max. Tensile Strength | Short term | N | 1500 |
Long term | N | 600 | |
Max. Crush | Short term | N/100mm | 1000 |
Long term | N/100mm | 300 | |
Min. Bending Radius | Operation | mm | 10 times of cable diameter |
Installation | mm | 20 times of cable diameter | |
Applicable Temperature Range | Operation | ℃ | -40 ~ +70 |
Installation | ℃ | -20 ~ +60 |
