Application: Outdoor duct/aerial
Fiber counts: 2~ 24 fibers
Fiber Type: G652D; G655C; OM1; OM2; OM3; OM4; OM5
Armored: Corrugated Steel Tape+Parallel Steel Wire
Outer jacket: MDPE; HDPE; LSZH
Description

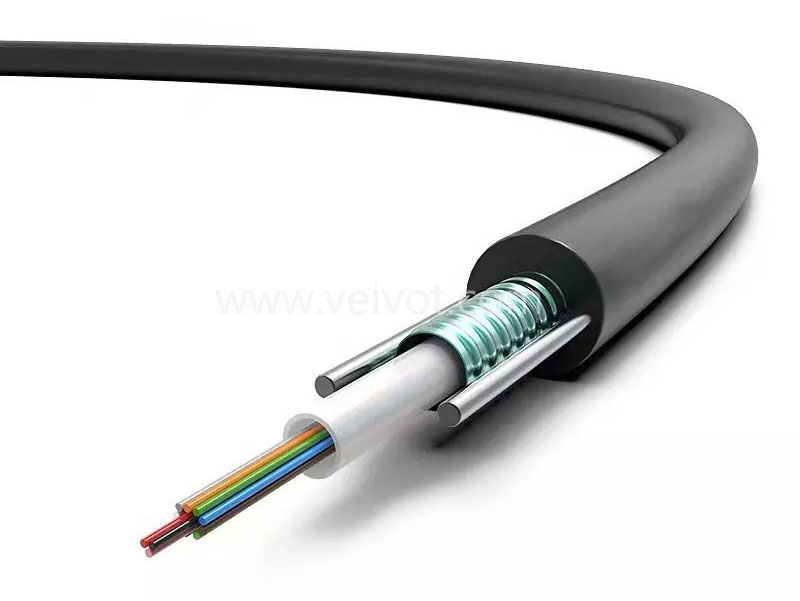

Uni-tube armored GYXTW fiber optical cable is highly praised for its excellent performance in long-distance symmetrical interactions. In fact, this type of fiber optic cable plays an important role in the telecommunications industry and is highly recommended by many technical personnel.
Features
Fiber counts: 2-24 fibers
Fiber Type: G652D; G657A1; G657A2; G655C; OM1; OM2; OM3; OM4; OM5
Outer jacket: MDPE; HDPE; LSZH
Excellent mechanical and temperature properties are guaranteed by precise excess fibers.
The key protection of fiber is based on excellent hydrolysis resistance.
It has excellent compression resistance and flexibility.
PSP enhances the compression resistance, impact resistance, and moisture resistance of the cable.
Two parallel steel wires ensure tensile strength.
It has good UV resistance, PE sheath, small diameter, light weight, and easy installation.
Application
Outdoor duct/aerial
Transmission performance
Fiber Type | 9/125um G652D | 9/125um G655C | 62.5/125um OM1 | 50/125um OM2-OM5 |
Max. Attenuation (dB/km) | 0.36/0.22 | 0.22/0.26 | 3.5/1.5 | 3.5/1.5 |
Typical. Attenuation (dB/km) | 0.35/0.21 | 0.21/0.24 | 3.5/1.5 | 3.0/1.0 |

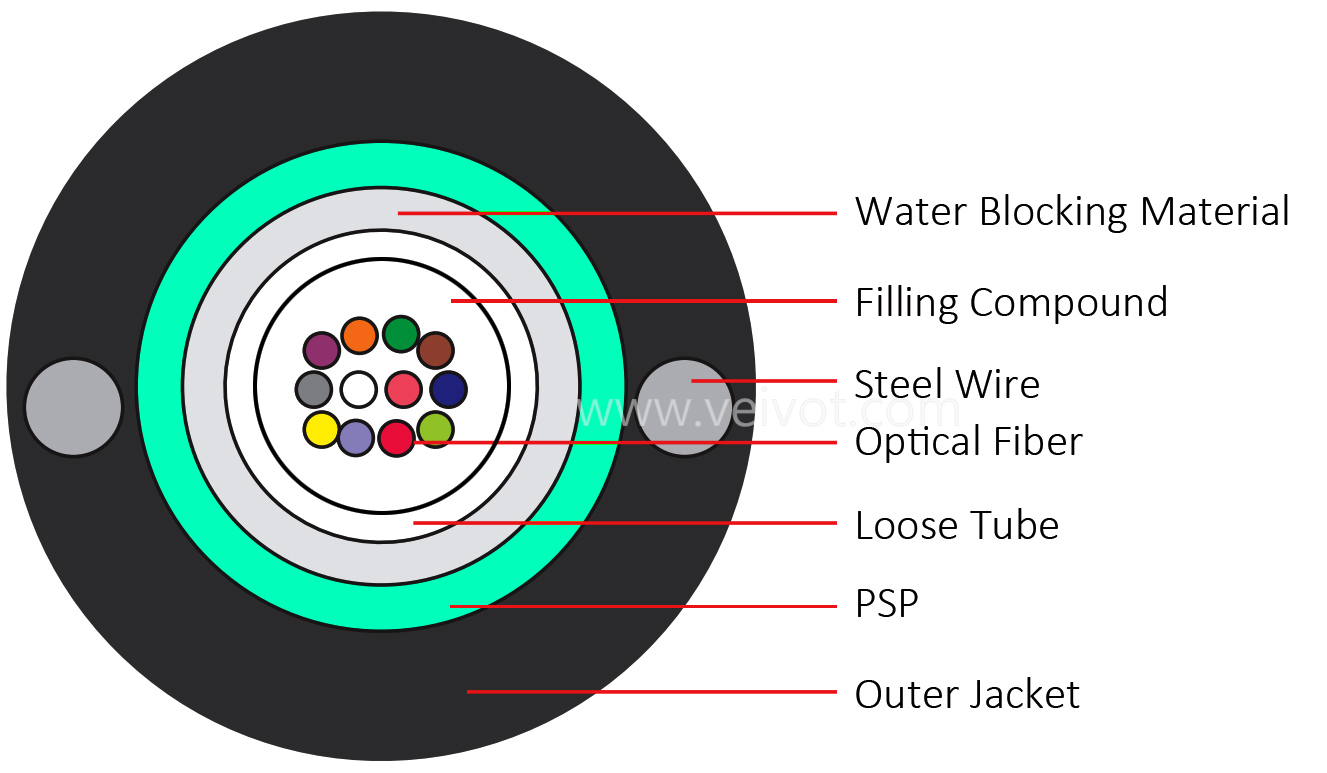

Structure parameters of optical cable
Item | Contents | Unit | Parameters | |
Fiber | Count | / | 2~12 | 16~24 |
Cable structure | / | / | Uni-tube | |
Loose tube | Material | / | PBT | |
Count | / | 1 | ||
Color | Blue | |||
| Water blocking | Material | / | Water blocking tape | |
Armor | Material | / | Corrugated steel tape | |
Strength member | Material | / | Steel wire | |
Outer sheath | Material | / | PE | |
Color | / | Black | ||
Cable diameter | ±0.5 | mm | 8.0 | |
Cable weight | ±10% | kg/km | 63 | 65 |
Mechanical & Environmental Performance
Item | Contents | Unit | Parameters |
Max. Tensile Strength | Short term | N | 1500 |
Long term | N | 600 | |
Max. Crush | Short term | N/100mm | 1000 |
Long term | N/100mm | 300 | |
Min. Bending Radius | Operation | mm | 10 times of cable diameter |
Installation | mm | 20times of cable diameter | |
Applicable Temperature Range | Operation | ℃ | -40 ~ +70 |
Installation | ℃ | -20 ~ +60 | |
Storage & Shipping | ℃ | -40 ~ +70 |
