Fiber Optic Cable: GYXTY33 Fiber Optic Cable
Fiber Type: G.652D or other fiber
Application: Direct Buried
Description

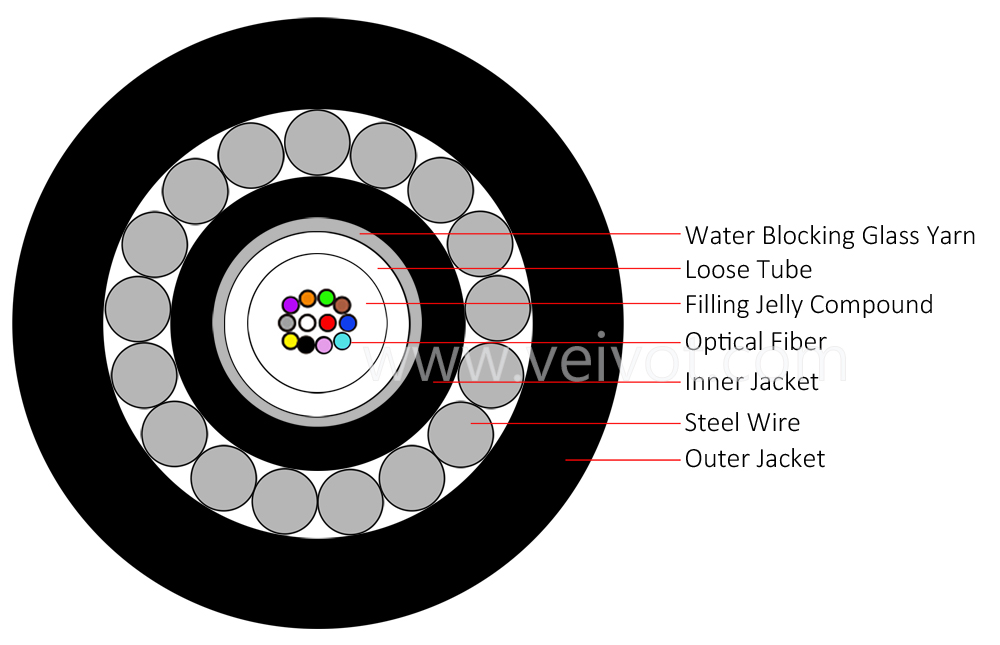

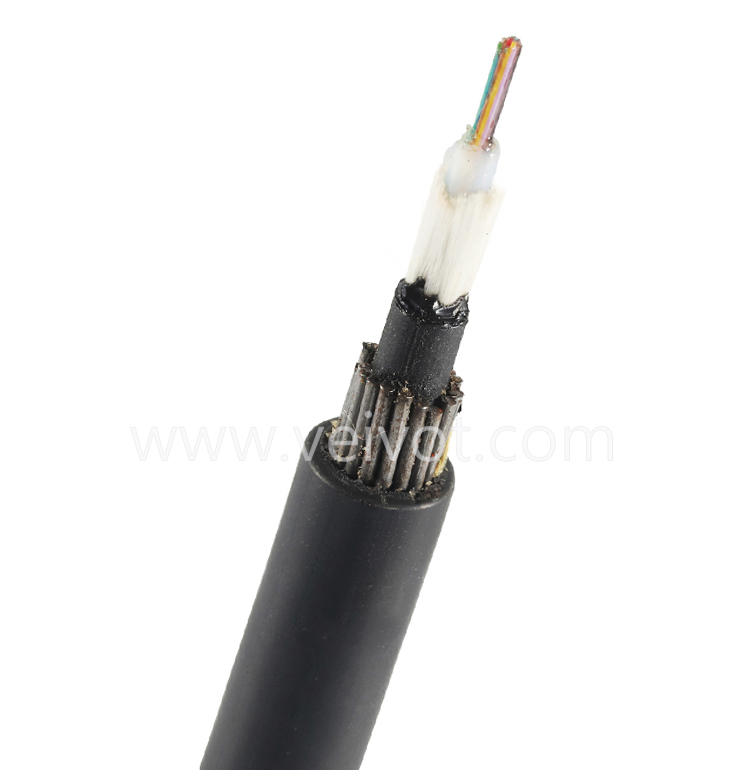

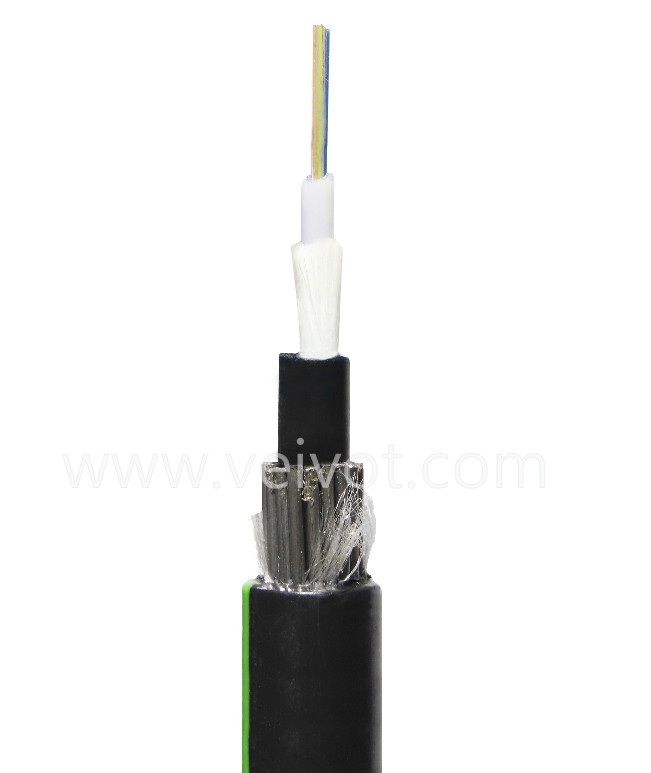

GYXTY33: Uni Loose Tubes, Water Blocking Glass Yarn, PE Inner Jacket, Multi Small Steel Wires Armoring, PE Outer Jacket.
GYXTY33 cable is particularly suitable for installation in underground buried directly or duct.
Features
Fiber counts: 2 ~ 24 fibers
Fiber Type: G652D; G657A1; G657A2; G657B3; G655C; OM1; OM2; OM3; OM4; OM5
Inner/Outer jacket: PE
Excellent mechanical and temperature properties are guaranteed by precise excess fibers.
The key protection of fiber is based on excellent hydrolysis resistance.
It has excellent compression resistance and flexibility.
The steel wires ensure tensile strength.
It has good UV resistance, PE sheath, small diameter, light weight, and easy installation.
Application
Outdoor direct buried or duct
Transmission performance
Fiber Type | 9/125um G652D | 9/125um G655C | 62.5/125um OM1 | 50/125um OM2-OM5 |
Max. Attenuation (dB/km) | 0.36/0.22 | 0.22/0.26 | 3.5/1.5 | 3.5/1.5 |
Typical. Attenuation (dB/km) | 0.35/0.21 | 0.21/0.24 | 3.5/1.5 | 3.0/1.0 |
Structure parameters of optical cable
Item | Contents | Unit | Parameters | |
Optical Fiber | Count | / | 2~12 | 14~24 |
Cable Structure | / | / | Uni-tube | |
Loose Tube | Material | / | PBT | |
Count | / | 1 | ||
Color | White | |||
Water Blocking | Material | / | Water Blocking Glass Yarn | |
Inner Jacket | Material | / | PE | |
Color | / | Black | ||
Strength Member | Material | / | Steel wire | |
Outer Jacket | Material | / | PE | |
Color | / | Black | ||
Cable Diameter | ±0.5 | mm | 9.5 | 10.0 |
Mechanical & Environmental Performance
Item | Contents | Unit | Parameters |
Max. Tensile Strength | Short term | N | 1500 |
Long term | N | 600 | |
Max. Crush | Short term | N/100mm | 1000 |
Long term | N/100mm | 300 | |
Min. Bending Radius | Operation | mm | 10 times of cable diameter |
Installation | mm | 20 times of cable diameter | |
Applicable Temperature Range | Operation | ℃ | -40 ~ +70 |
Installation | ℃ | -20 ~ +60 | |
Storage & Transportation | ℃ | -40 ~ +70 |
