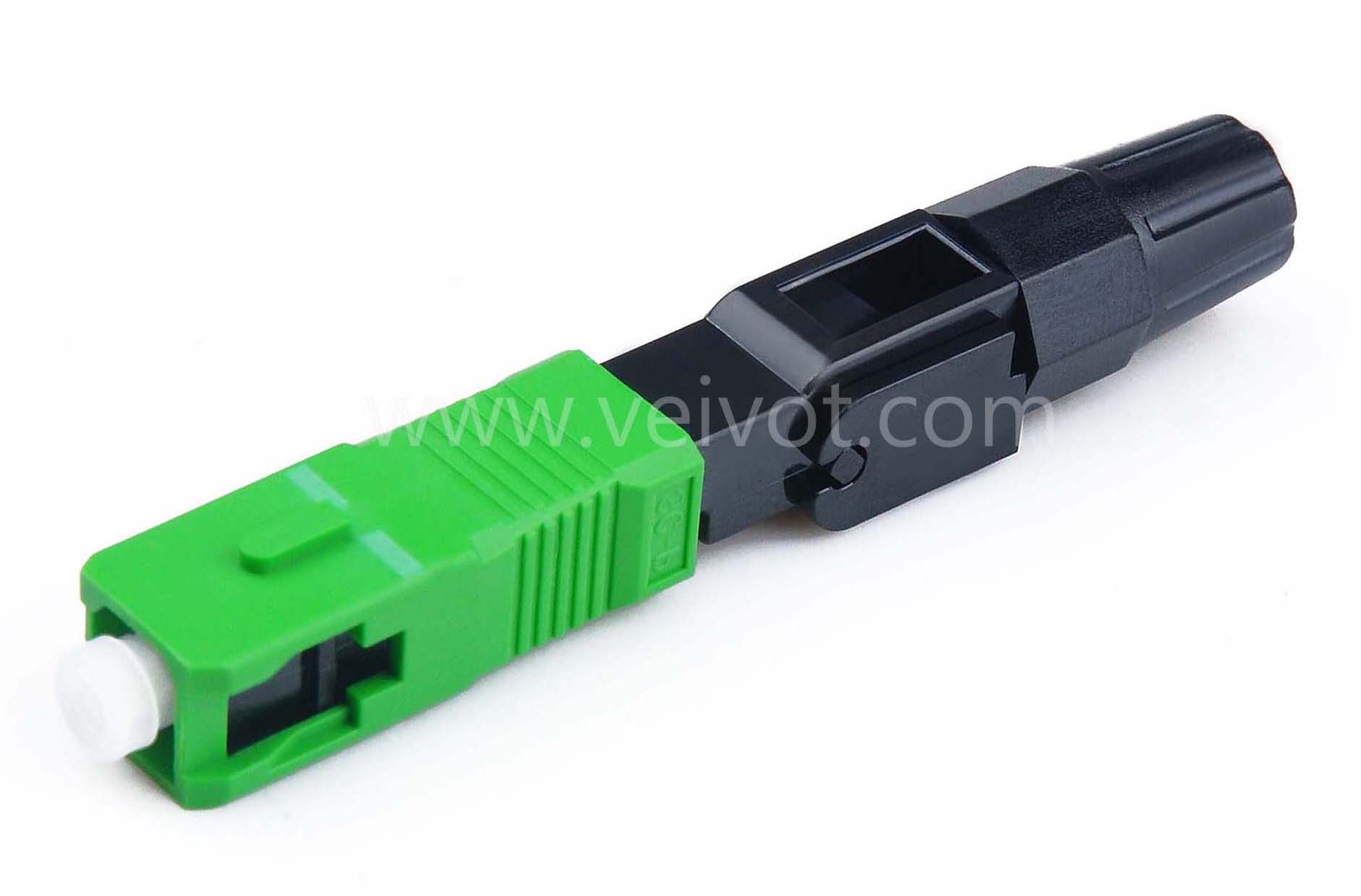

SC mechanical connector pre embedded quick field assembly connector (VV-FC-SC2) is a factory pre polished and on-site installed connector that does not require on-site manual polishing.
Description
SC mechanical connector pre embedded quick field assembly connector is a factory pre polished and on-site installed connector that does not require on-site manual polishing. The proven mechanical splicing technology ensures accurate fiber alignment, factory pre split fiber stubs, and proprietary refractive index matching gel combined to provide instant low loss termination for single-mode or multimode fibers. Adopting an embedded fiber optic structure. The pressure welding components adopt a brand new and unique structural design, which eliminates the need for injection, grinding, and materials during installation. It can be reused and easy to carry. Installation has the characteristics of high quality, high success rate, and speed.
Application
Used on FTTH fiber optic terminal box or cabinet.
Disconnect the optical fiber and other back accidents for maintenance.
LAN, WAN, data and video transmission.
Construction of fiber optic terminal user access and maintenance.
Fiber optic access for mobile base stations.
Specifications
Item | Specification | |
Model No. | VV-FC-SCU2, VV-FC-SCA2 | |
Connector type | SC/UPC, SC/APC | |
Connector length | ≈55mm | |
Aoolicable for | Drop cable/Indoor cable | |
Fiber mode | Single mode or Multi mode | |
Fiber type | G.652D, G.657A1 | |
Fiber cable | 2.0*3.0mm falt drop optical cable | |
φ0.9/φ2.0/φ3.0mm round optical cable | ||
Fiber diameter | 0.125mm | |
Force holds 2 x 3mm cable type at the beginning of the fast connector | ≥ 40 N, loss ≤ 0.4 dB | |
Working wavelength | 1310nm, 1490nm, 1550nm | |
Operation time | S | About 50(no fiber cut) |
Insertion Loss | dB | ≤0.35 |
Insertion Loss Typical value | dB | 0.2 |
Return Loss | dB | UPC≥45, APC≥55 |
Fastening strength of naked fiber | N | ≥3 |
Tensile strength | N | ≥40 |
Reusable | Time | ≥10 times |
Operating Temperature | ℃ | -40～+85 |
On-line tensile strength(20N) | dB | ΔIL≤0.3 |
Mechanical durability(500 times) | dB | ΔIL≤0.3 |
Drop-off test (drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤0.3 |
