Description

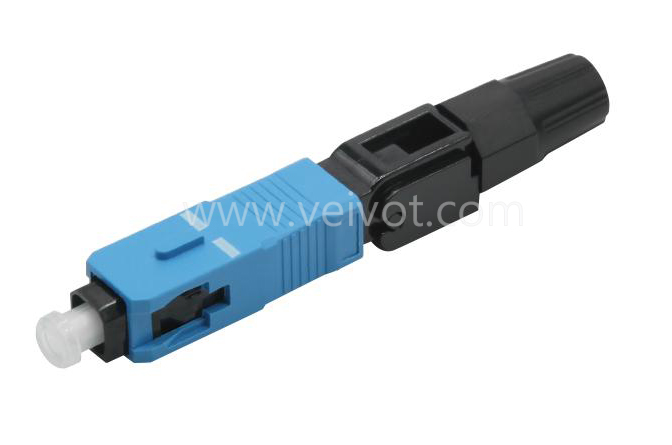

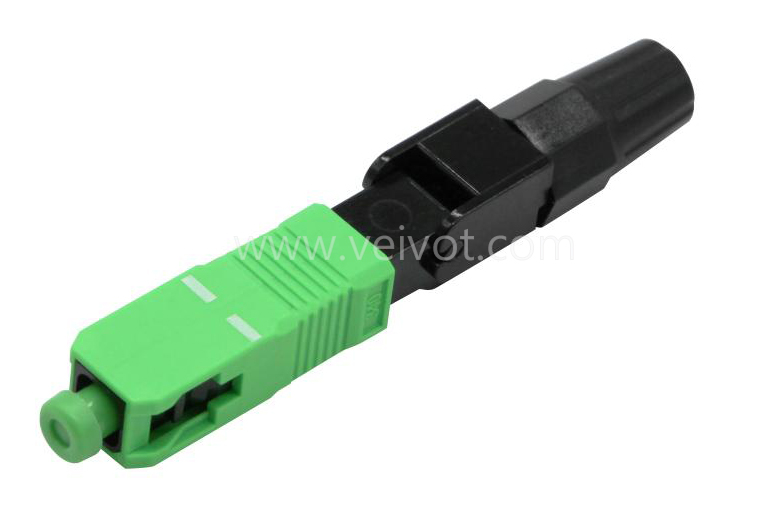

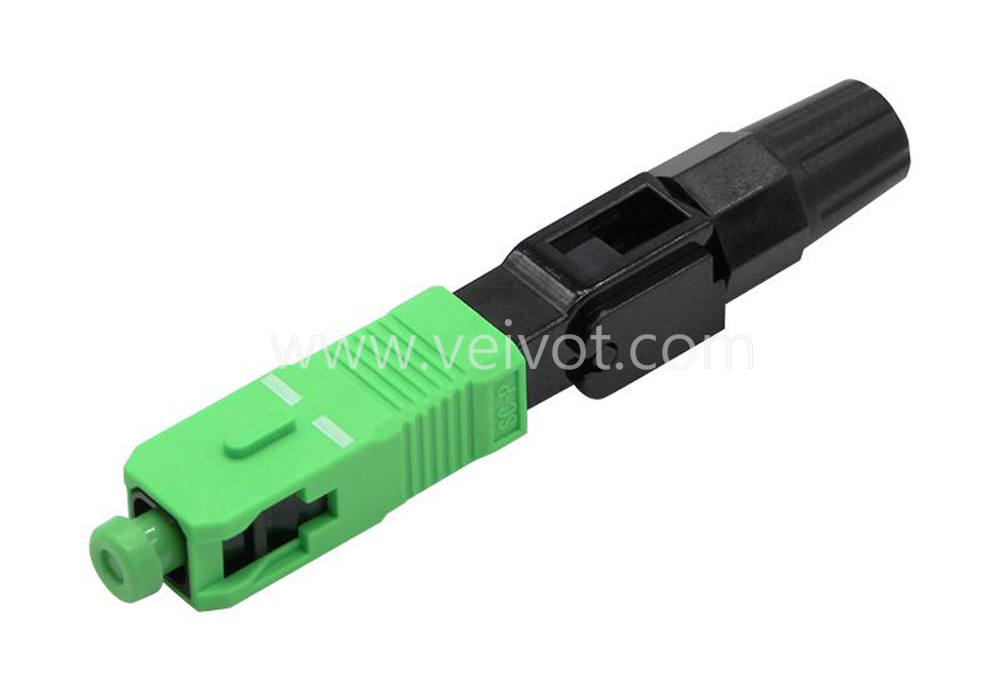

SC pre-polished ferrule quick field assembly connector is a factory polished without the need for any polishing materials, allowing for the preparation and termination of optical fibers in a small amount of time using other traditional methods. The connector also uses the V-groove mechanical splicing principle, so the termination of the connector does not require the use of epoxy resin. This type of quick connector has the characteristics of easy assembly and strong stability. It allows for simple optical core connections without the need for any additional practice or adhesive. It does not need to connect itself in challenging environments such as telephone poles and manholes to obtain a workspace. It can reconnect cables and reduce connection failure rates through on-site installation errors.

The field assembly connector series has become a popular solution for optical wiring in buildings and floors for LAN and CCTV applications. With the expansion of FTTH, it has been proven to be the preferred connector for current owners, municipalities, utilities, and alternative operators. Our on-site assembled optical connector series now comes in SC, LC, or FC variants, suitable for single mode and multimode fiber types ranging from 250um to 900um, as well as 2.0mm and 3.0mm diameters, including multimode 62.5/125um and multimode 50/125um. The single mode version can provide UPC or APC ferrules

Application

• Used on FTTH fiber optic terminal box or cabinet.

• Disconnect the optical fiber and other back accidents for maintenance.

• LAN, WAN, data and video transmission.

• Construction of fiber optic terminal user access and maintenance.

• Fiber optic access for mobile base stations.

Optical Characteristics
