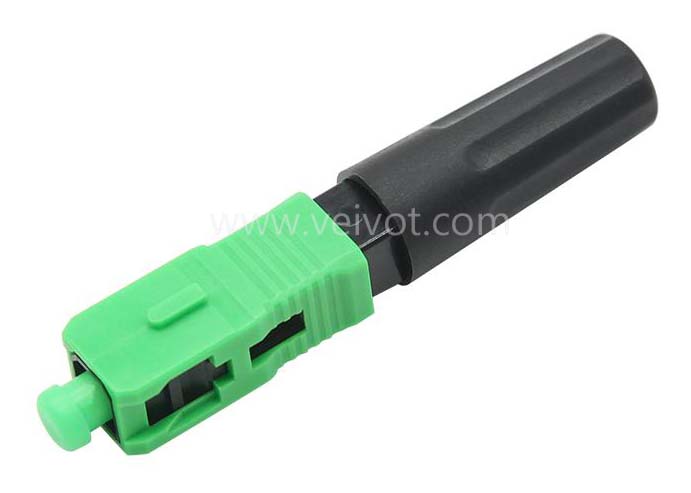

SC mechanical connector pre embedded quick field assembly connector is a factory pre polished and on-site installed connector that does not require on-site manual polishing. The proven mechanical splicing technology ensures accurate fiber alignment, factory pre split fiber stubs, and proprietary refractive index matching gel combined to provide instant low loss termination for single-mode or multimode fibers. Adopting an embedded fiber optic structure. The pressure welding components adopt a brand new and unique structural design, which eliminates the need for injection, grinding, and materials during installation. It can be reused and easy to carry. Installation has the characteristics of high quality, high success rate, and speed.

The assembly of SC type quick connectors only requires ordinary fiber preparation tools: fiber stripping tools, wipes, and fiber cutters. No power supply required. Simply peel off the buffer, cut and clean the fiber, and then insert the fiber into the quick connector. Installation only takes a few minutes and is very easy.

Application

• Used on FTTH fiber optic terminal box or cabinet.

• Disconnect the optical fiber and other back accidents for maintenance.

• LAN, WAN, data and video transmission.

• Construction of fiber optic terminal user access and maintenance.

• Fiber optic access for mobile base stations.

Optical Characteristics
