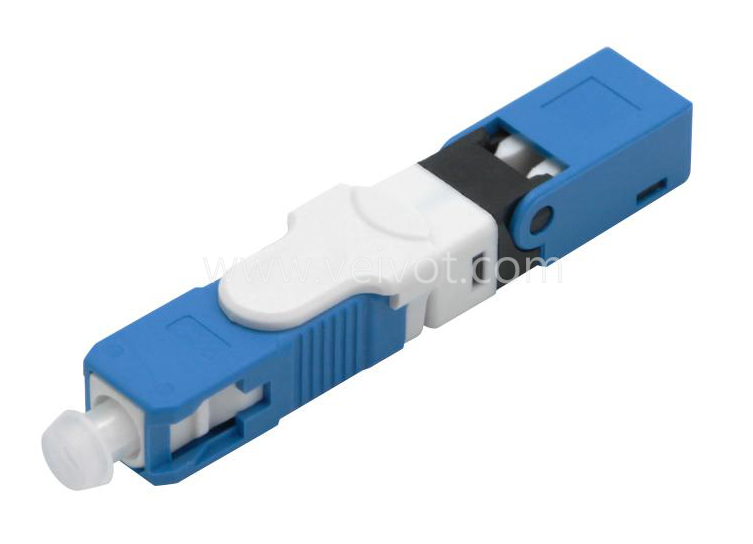

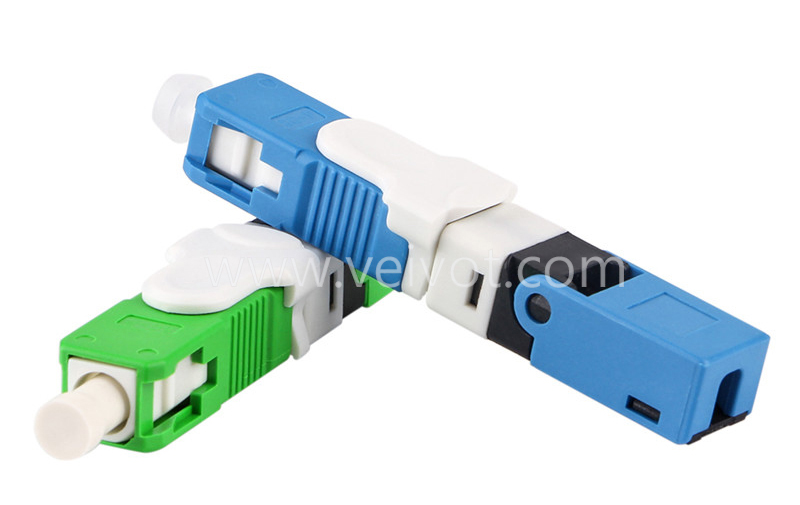

SC pre-embedded fast field assembly connector (VV-FC-SC6) is a factory pre-polished connector that does not require on-site manual polishing.
Description
Quick connectors are researched and manufactured on the most modern technological route, and fast optical connectors actively and effectively support engineers in the construction process of FTTx fiber optic cable connections at low cost. The cost is very low, the implementation time is extremely fast, the connection life is quite long, and the quality is also quite high. Therefore, fast connectors are widely used in today's fiber optic cable construction. The most common types of fiber optic quick connectors are SC connectors, including SC/UPC and SC/APC, as well as FC or LC standard quick connectors, but they are not very common.
The assembly of SC type quick connectors only requires ordinary fiber preparation tools: fiber stripping tools, wipes, and fiber cutters. No power supply required. Simply peel off the buffer, cut and clean the fiber, and then insert the fiber into the quick connector. Installation only takes a few minutes and is very easy.
Application
Used on FTTH fiber optic terminal box or cabinet.
Disconnect the optical fiber and other back accidents for maintenance.
LAN, WAN, data and video transmission.
Construction of fiber optic terminal user access and maintenance.
Fiber optic access for mobile base stations.
Optical Characteristics
Item | Specification |
Model No. | VV-FC-SCU6, VV-FC-SCA6 |
Connector type | SC/UPC, SC/APC |
Cable Scope | 2.0*3.0 mm &1.6*2.0mm Flat Optical Drop Cable |
Size | 52*9*8.1mm |
Fiber Diameter | 125μm (G652 & G657) |
Coating Diameter | 250μm |
Mode | SM SC/APC SC/UPC |
Operation Time | About 15s (exclude fiber presetting) |
Insertion Loss | ≤ 0.4 dB (1310nm & 1550nm) |
Typicle Insertion Loss | 0.2 dB |
Insertion loss change after 500 times fast connetor plug into adapter | ≤ 0.2 dB |
Return Loss | UPC ≥ 45dB, APC ≥ 55dB |
Insert time | >500 times |
Number of reuses (still allowing to meet attenuation criteria) | ≥5 times |
Success Rate | >98% |
Reusable Times | >10 times |
Tighten Strength of Naked Fiber | >5 N |
Tensile Strength | >50 N |
Temperature | -40 ~ +85 C |
Humidity | <95 RH |
On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
Mechanical Durability (500 times) | IL ≤ 0.3dB |
Drop Test (4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
Structure
Item | Specification |

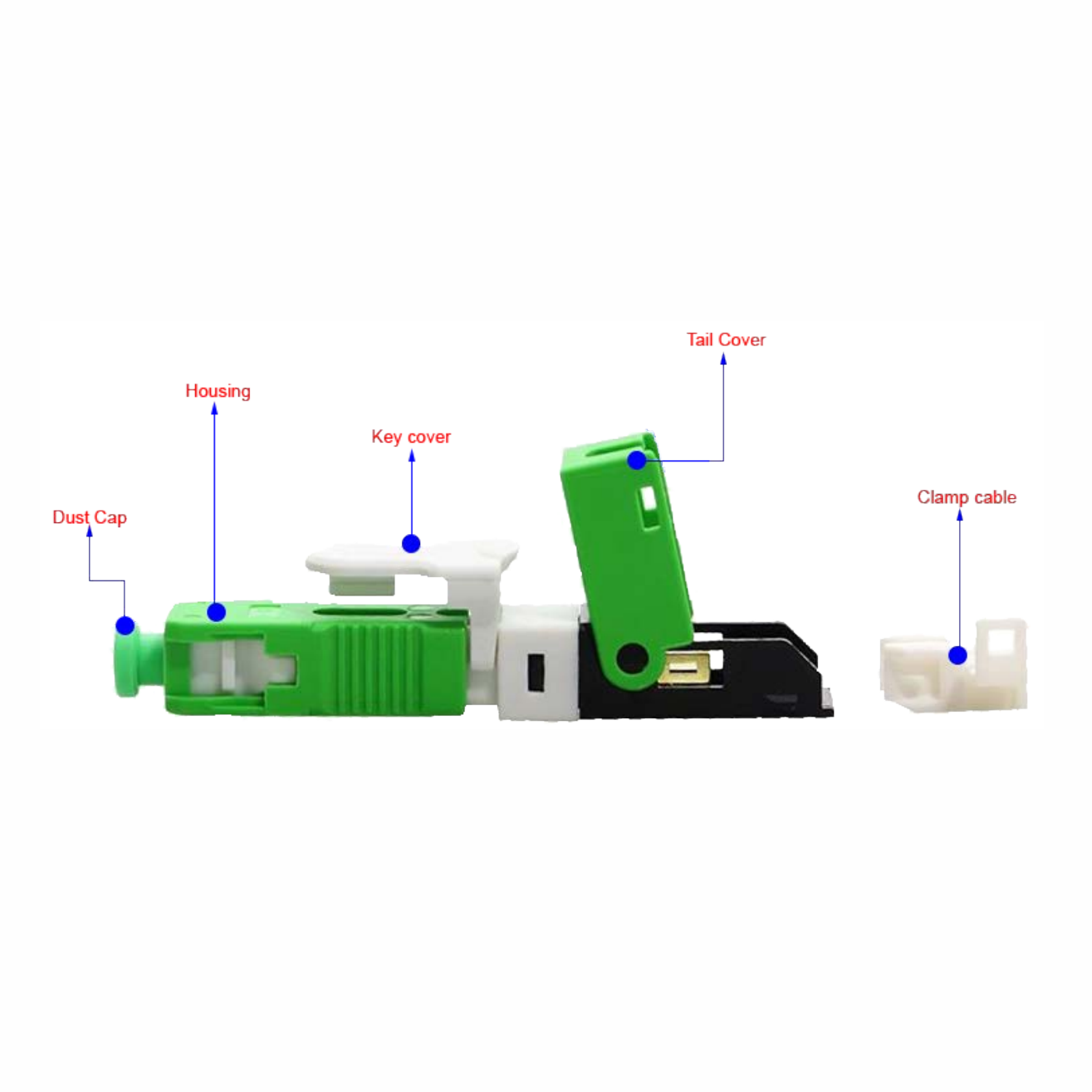

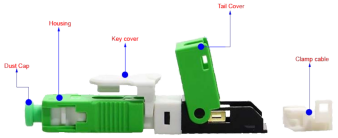

Product Structure |
|
3-point locking structure | Bare fiber lock : 0.125mm Color fiber optic lock : 0.25mm Cable lock 2x3mm |
Fiber directional hole |
|
