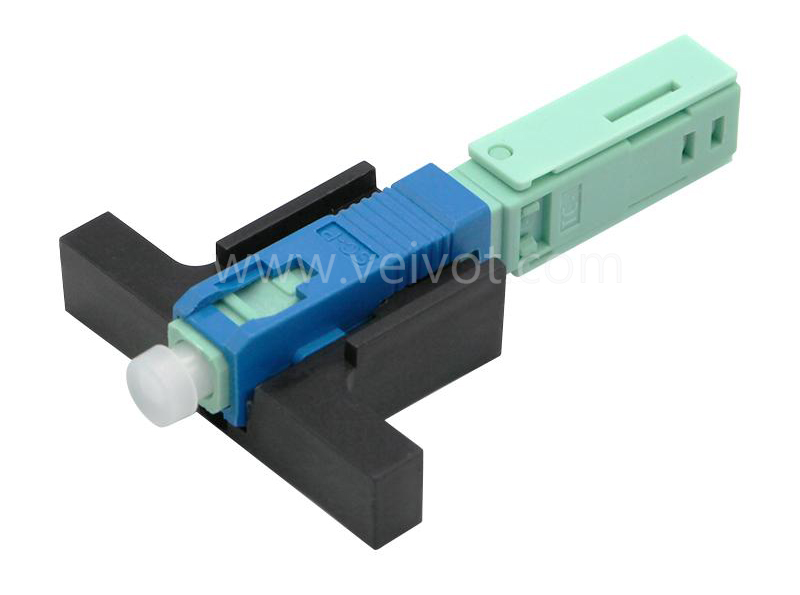

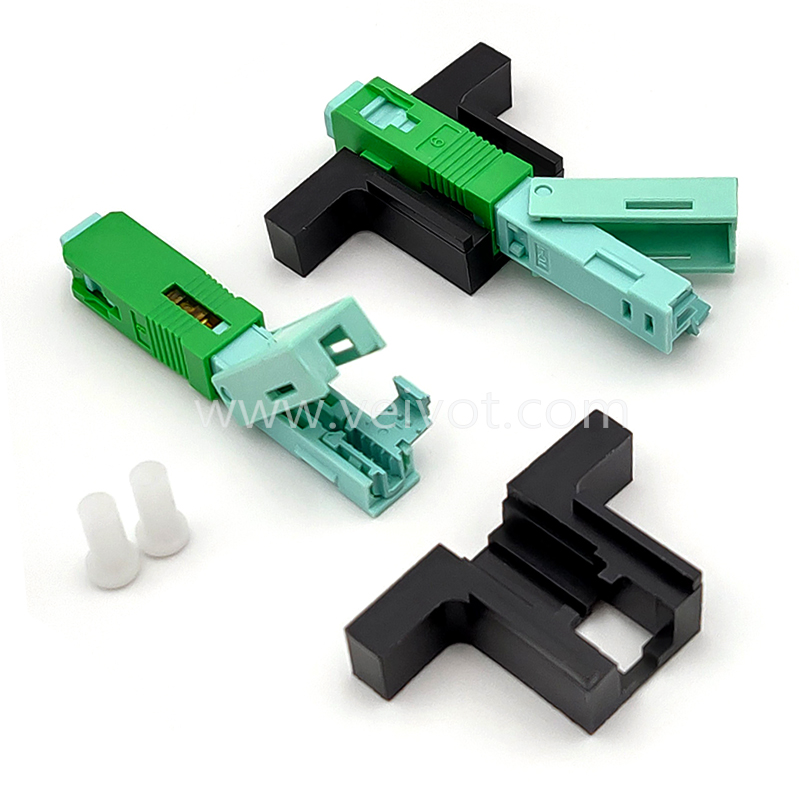

SC quick connector (VV-FC-SC7) is used for field installable fiber optic connectors, widely used in fiber to home (FTTH) access optical networks.
Description
SC quick connector is used for field installable fiber optic connectors, widely used in fiber to home (FTTH) access optical networks. They are not only suitable for single mode or multimode fibers, but can also choose 900um, 3mm, and incoming cable buffer types. The connector system has a fast installation time and low insertion loss, providing a good alternative solution for fusion welding. Installation is as simple as stripping, cleaning, cutting cams, and curling.
The assembly of SC type quick connectors only requires ordinary fiber preparation tools: fiber stripping tools, wipes, and fiber cutters. No power supply required. Simply peel off the buffer, cut and clean the fiber, and then insert the fiber into the quick connector. Installation only takes a few minutes and is very easy.
Application
Used on FTTH fiber optic terminal box or cabinet.
Disconnect the optical fiber and other back accidents for maintenance.
LAN, WAN, data and video transmission.
Construction of fiber optic terminal user access and maintenance.
Fiber optic access for mobile base stations.
Optical Characteristics
Item | Specification | |
Model No. | VV-FC-SCU7, VV-FC-SCA7 | |
Connector Type | SC/UPC, SC/APC | |
Connector Length | ≈53mm | |
Aoolicable for | Drop cable/Indoor cable | |
Fiber mode | Single mode or Multi mode | |
Fiber type | G.652D, G.657A1 | |
Fiber cable | 2.0*3.0mm falt drop optical cable | |
Fiber diameter | 0.125mm | |
Working wavelength | 1310nm, 1490nm, 1550nm | |
Ferrule | Ceramic | |
Operation time | S | 30 |
Insertion Loss | dB | ≤0.4 |
Insertion Loss Typical value | dB | 0.2 |
Return Loss | dB | UPC≥40, APC≥50 |
Tensile strength | N | ≥30 |
Insert time | Time | ≥500 |
Reusable | Time | ≥10 times |
Operating Temperature | ℃ | -40～+85 |
Humidity | <95 RH | |
On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB | |
Mechanical Durability (500 times) | IL ≤ 0.3dB | |
Drop Test (4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB | |
Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance ±0.5 um. | ||
