Description

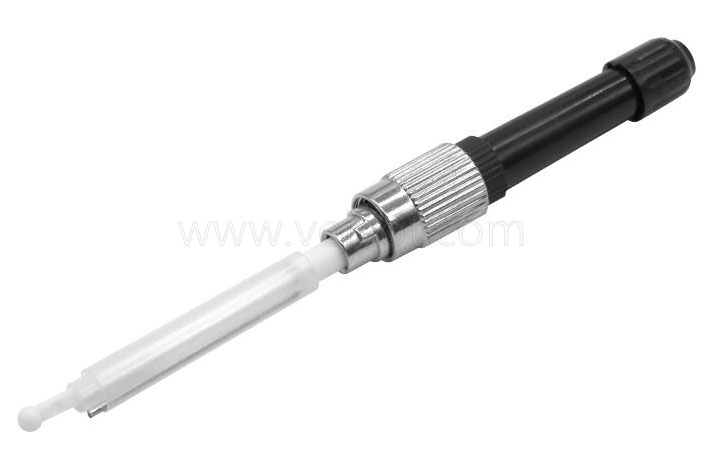

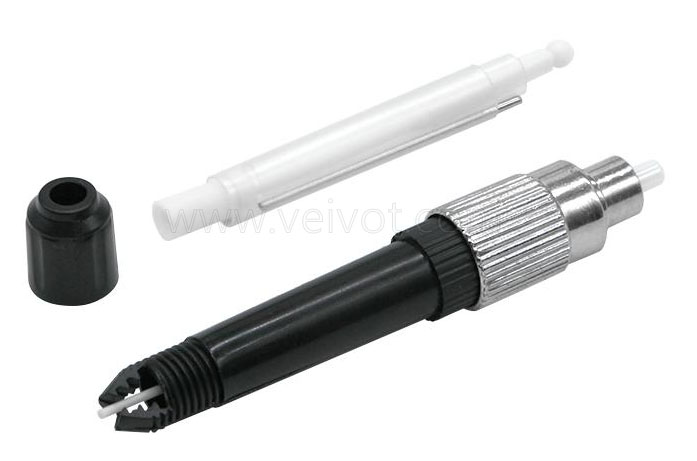

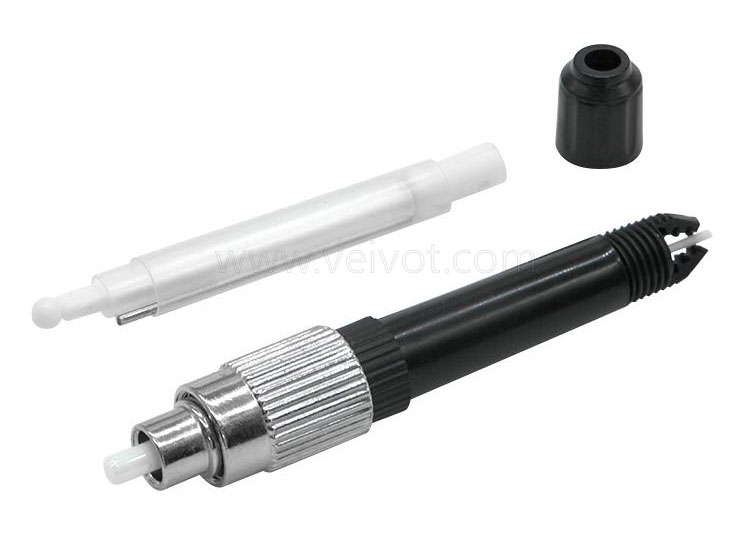

Veivot Fiber optic fusion spliced connector (SOC) is a type of fiber optic quick connector used for the splicing point inside the connector end, effectively eliminating the tail fiber during splicing. The advantage is that no additional protection is required after splicing, such as splicing trays, splicing boxes, and distribution boxes. Compared with the design of mechanical splicing connectors, it saves the maintenance and operation costs of V-slot mechanical connectors, is durable, and overturns the concept of high splicing machine costs and unsuitability for FTTH structures.
Application
Used on FTTH fiber optic terminal box or cabinet.
Disconnect the optical fiber and other back accidents for maintenance.
LAN, WAN, data and video transmission.
Construction of fiber optic terminal user access and maintenance.
Fiber optic access for mobile base stations.
Specification
Item | Specification | |
Model No. | VV-FCS-FCU1 | |
Connector type | FC/UPC | |
Aoolicable for | Drop cable/Indoor cable | |
Fiber mode | Singlemode | |
Fiber type | G.652D, G.657A1 | |
Fiber cable | 2.0*3.0mm falt drop optical cable | |
φ0.9mm/φ2.0mm/φ3.0mm round optical cable | ||
Fiber diameter | 0.125mm | |
Working wavelength | 1310nm, 1490nm, 1550nm | |
Operation time | S | About 50 (no fiber cut) |
Insertion Loss | dB | SM UPC AVG≤0.15 SM UPC MAX≤0.25 SM APC AVG≤0.20 SM APC MAX≤0.30 |
Insertion Loss Typical value | dB | 0.2 |
Return Loss | dB | UPC≥50, APC≥55 |
Average Operation time | min | ≤3 |
Installation success rate | % | ≥95 |
Tensile strength | N | ≥40 |
Reusable | Time | ≥10 times |
Operating Temperature | ℃ | -40～+70 |
Storage Temperature | ℃ | -40～+85 |
Humidity | / | ≤95% (Temperature: 30℃) |
Standard | / | Q/CT 2299-2010, IEC61754-4, YD/T 2341.1-2001, GR326 |
ROHS | / | Meet the requirement |
