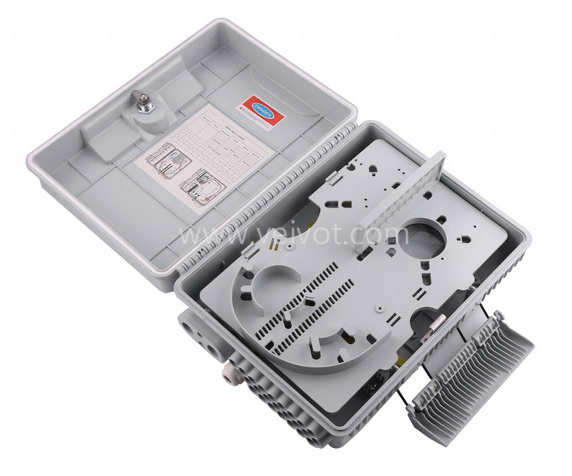

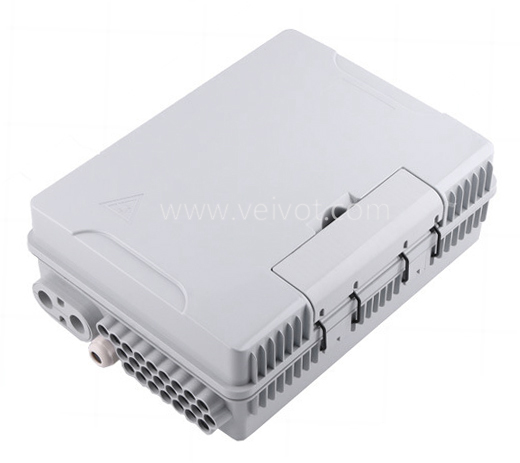

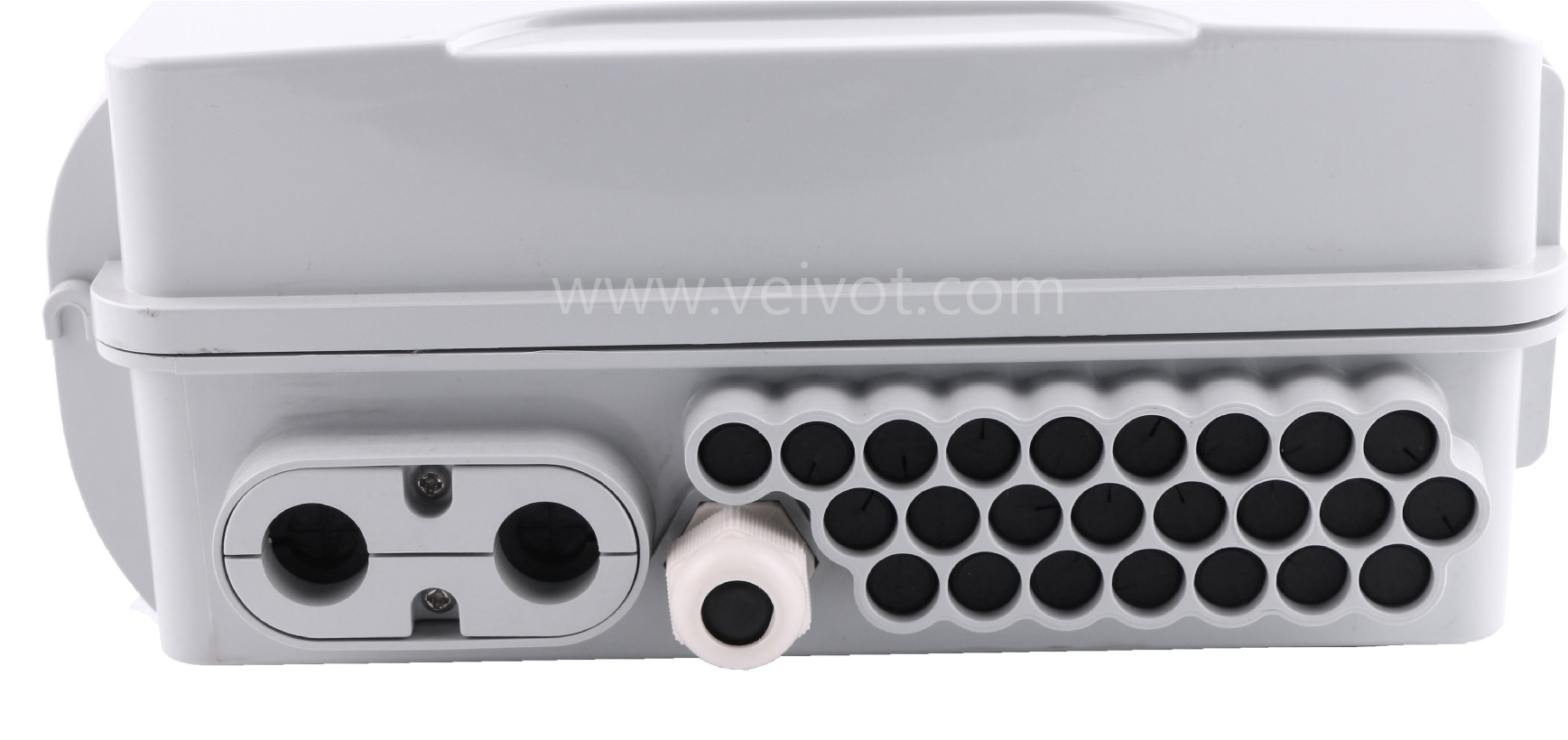

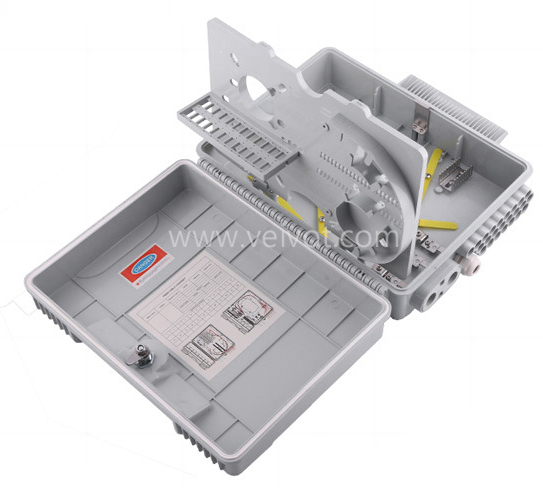

24-core optical fiber distribution box IP65 - VEIVOT (1),24-core optical fiber distribution box IP65 - VEIVOT (2),24-core optical fiber distribution box IP65 - VEIVOT (3),24-core optical fiber distribution box IP65 - VEIVOT (4)

24 Port Fiber Distribution Box (VV-FDB-24F)

The 24 port optical terminal box can be loaded 24 LC duplex or SC simplex adapters and 48LC or 24 SC pigtails, 1x16 or 2x16 Micro Type PLC Splitter.

Consult

Product details

Description

The 24 port outdoor fiber optic distribution box wall/pole mounted is used for splicing and terminating indoor SC/LC/FC fiber optic cables with pigtails. You can also use this fiber optic distribution box to connect 16 incoming cables to a 1:16 or 2:16 fiber optic PLC splitter.

Feature

Wall/Pole mounting application
Provide splice connection protection of fiber cable and pigtail
Can load LC or SC adapter
Can accommodate 1x16 or 2x16 steel tube PLC Splitter
Rainfall resistant, outdoor using

Application

Telecommunication
Data transfer
LAN/WAN
lndoor applications
FTTX

Specification

Model No.	VV-FDB-24F
Dimensions	340250110mm
Material	ABS or ABS+PC
Colour	Grey, White, Black
Installation Way	Wall Mounting or Pole Mounting
IP Protection	IP65
Inlet	2-3 Ports
Outlet	24 Ports
Pigtail/Splitter Capacity	24xSC Pigtail, 48xLC Pigtial, 1x1:16 or 2:16 mini PLC Splitter
Adapter Capacity	24xSC SX or 24xLC DX
Operating Temperature	-40~+85℃
Insertion loss for Pigtail	≤0.3dB
SM UPC Return Loss for Pigtail	≥50dB
SM APC Return Loss for Pigtail	≥60dB
