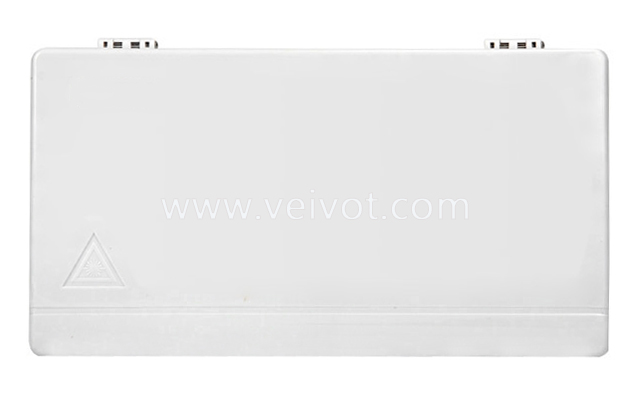

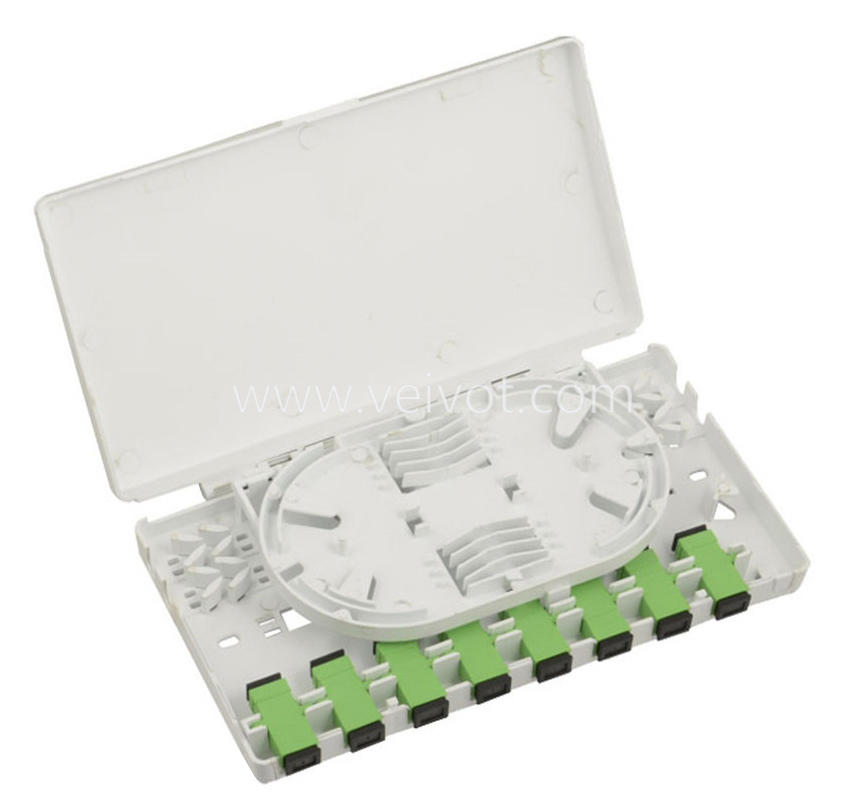

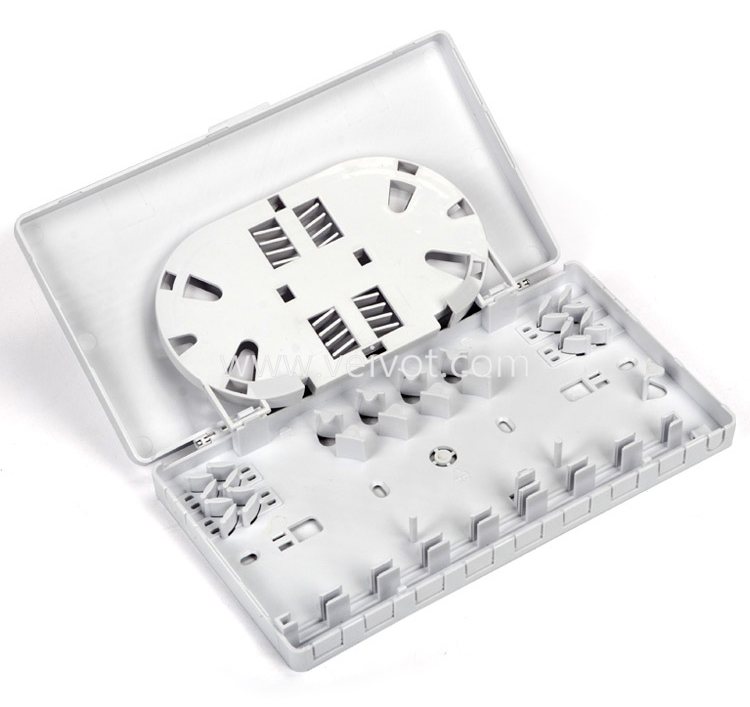

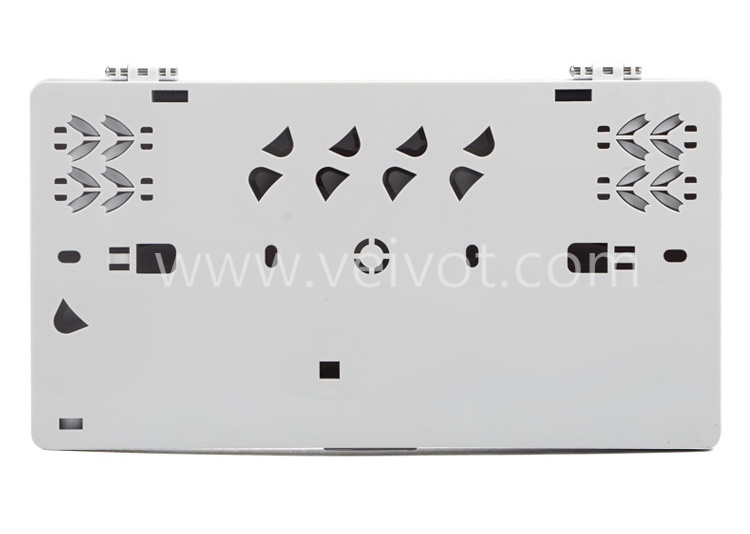

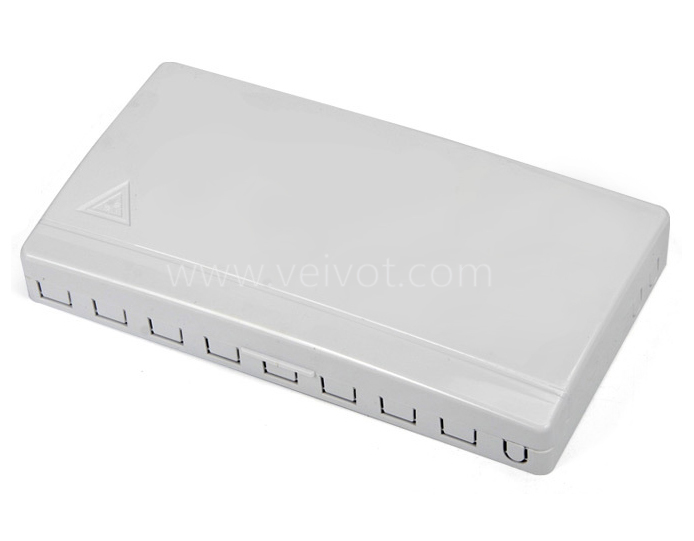

8 Port Fiber Terminal Box (VV-FTB-8A)

It is able to hold up to 8 subscribers.

Model No.: VV-FTB-8A

Consult

Product details

Description

The 8 port fiber terminal box is used for the splicing and termination between the SC or LC pigtails and indoor optical fiber cable. The terminal box is used for wall mounted or desktop applications.

Features

Small size,light weight,use conveniently
ABS material,fireproof and dustproof
Radian appearance makes it slinky
Suitable for various modules and multimedia interfaces
Embedded chart and logo position make it easy to identity
Support MM or SM fiber connection
1-8 ports for SC simplex adapter or LC duplex adapter

Application

Optical Telecommunication System, LAN, Optical fiber Communication System
Optical fiber testing machine / test equipment
CATV Networks, Fiber optical transducer
Optical fiber broadband access network, FTTH access network
Optical fiber ODF, Rack and wall mount fiber optical distribution frame

Specification

Model No.	VV-FTB-8A
Outline Dimension(LWH)	20511028mm
Material	ABS
Colour	White
Max. Core	1-8
Pigtail diameter	0.25mm or 0.9mm
Operating Temperature	-40~+85℃
Adapter Capacity	8xSC SX or 8xLC DX
Insertion loss	≤0.3dB
SM UPC Return Loss	≥50dB
SM APC Return Loss	≥60dB
Accessory Kits	8 Heat shrinkable sleeve + 4 Expansion tube + 4 Screw
Installation Type	indoor wall mount or desktop
