Description

The VEIVOT high-density and configurable fiber optic MPO/MTP patch panel is designed specifically for backbone to backbone and backbone to horizontal fiber optic cabling, and supports 10G multimode MM fiber optic networks.

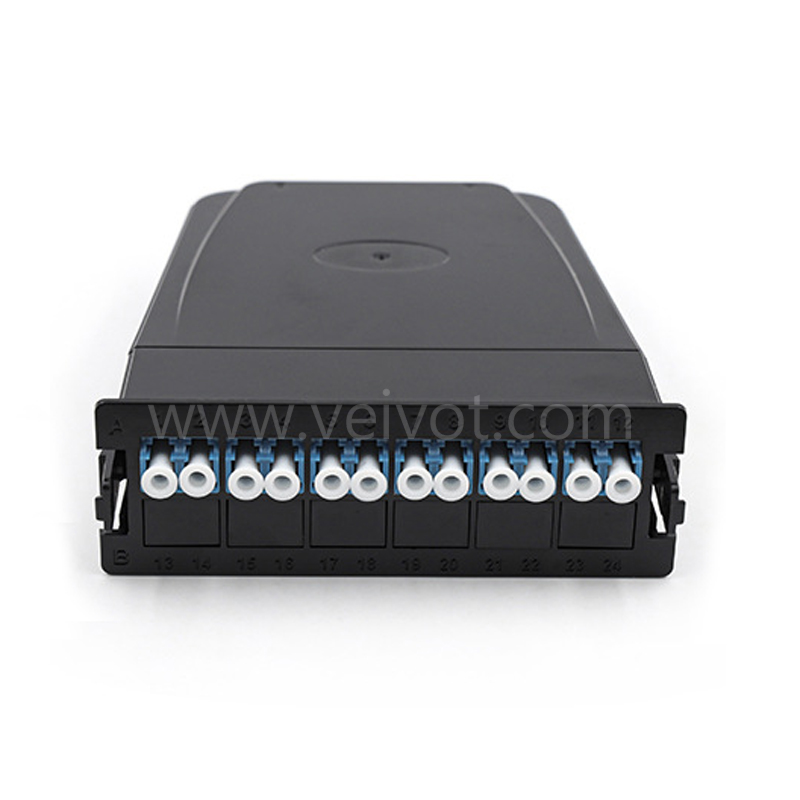

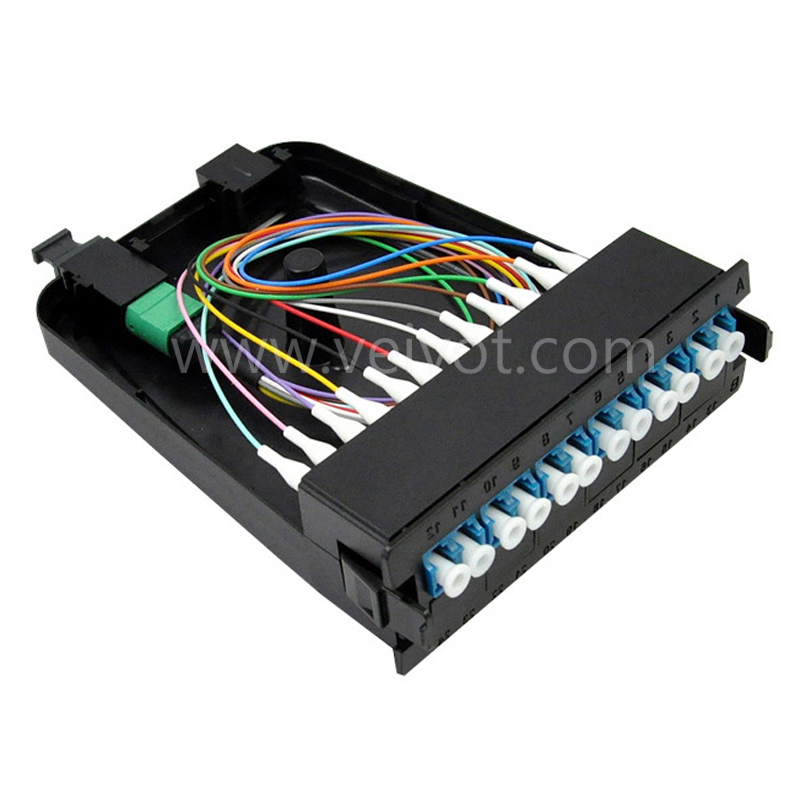

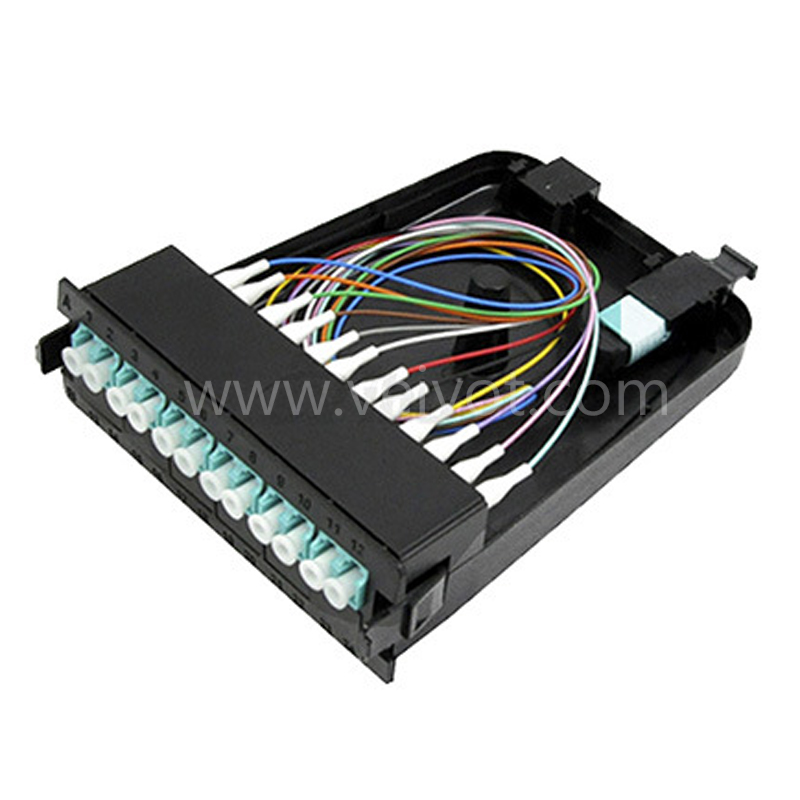

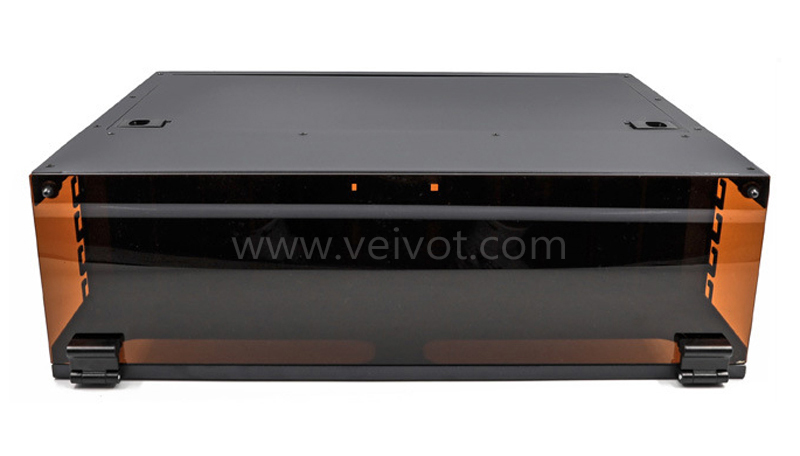

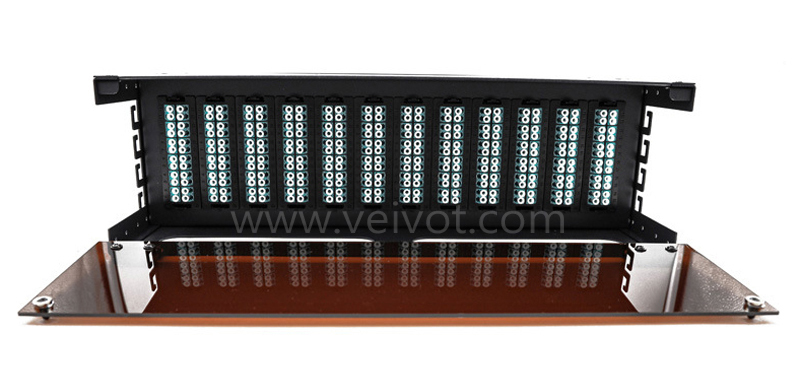

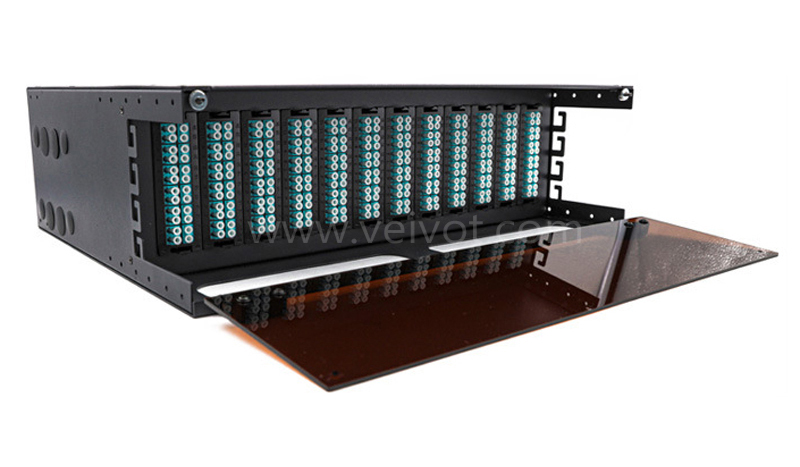

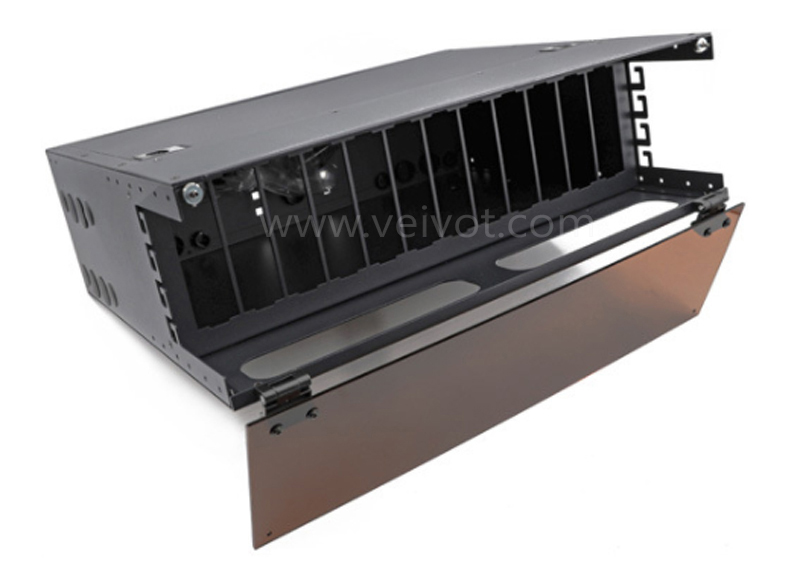

The VEIVOT MPO/MTP 3U 12-slot modular patch panel is suitable for installing racks and cabinets with a width of 19 inches, accommodate up to four plug and play modules and can support up to 96 fiber optic connections. Each module has 24 LC ports on the front and two MPO ports on the back for interconnecting from the cartridge to the cartridge. The MPO-LC fiber optic box is terminated at the factory with singlemode SM OS2 fibers for Multimode OM1/OM2/OM3/OM4/OM5 fibers. No need for splicing, polishing, on-site termination, or testing. The module is made of hard ABS plastic, which can prevent wear, corrosion, impact, and weather.

Features

• Up to 12 MPO/MTP-LC modules in 3U

• Multiple adaptor options available

• Maximum capacity 288 connections

• Modular solution

• Accepts loose tube, distribution and pre-terminated cables

• Reach / SVHC compliant

• The slidable design is easy to install and maintain.

Applications

• Suitable for high-density fiber applications

• Compared to traditional fiber optic cabling solutions, installation is faster and easier

• Used with 19 "racks and cabinets

• Perfect for use in data centers

• Fiber optic network infrastructure

• Environments with IDF/MDF space limitations

Patch Panel parameter

Cassette parameter

MPO/MTP to LC hydra cable parameter
