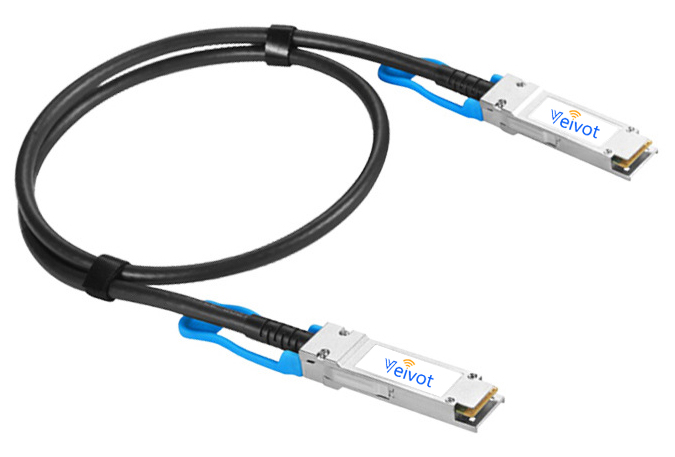

100Gbps QSFP28 to QSFP28 Passive Direct Attach Cable(DAC)
P/N: VV-Q28-PCU-XXM
Description
The VV-QP-PCU-XXM is a high performance passive cable assembly products, based on 4 x25G or 4 x28G structure, the product can well satisfy the next generation 100G switches, servers, routers and other products of application requirements.
QSFP28 cable adopts optimized design to reduce crosstalk and insertion loss, excellent signal integrity, fully conforms to the next generation 100G Ethernet and Infiniband EDR standards.
Features
4 channels full-duplex DAC
QSFP28 Small Form Factor Compliant to SFF-8432&SFF-8665
Maximum aggregate data rate: 100 Gb/s(4 x 25Gb/s)
Single +3.3V power supply operating
Temperature range 0°C to 70°C
I2C based two-wire serial interface
RoHS Compliant Part
Cabel length up to 5M at most
Applications
100GBase Ethernet
Infiniband 4x SDR, DDR, QDR
Data centers
SAS, Servers, Hubs, Switches, Routers
Ordering Information
Part No. | Product Description |
VV-Q28-PCU-XXM | 100GBase-CR4 QSFP28 to QSFP28 DAC 1~5M MMF |
XX stands for 0.5, 1, 2, 3, 4, 5 m(unit) | |
