Description

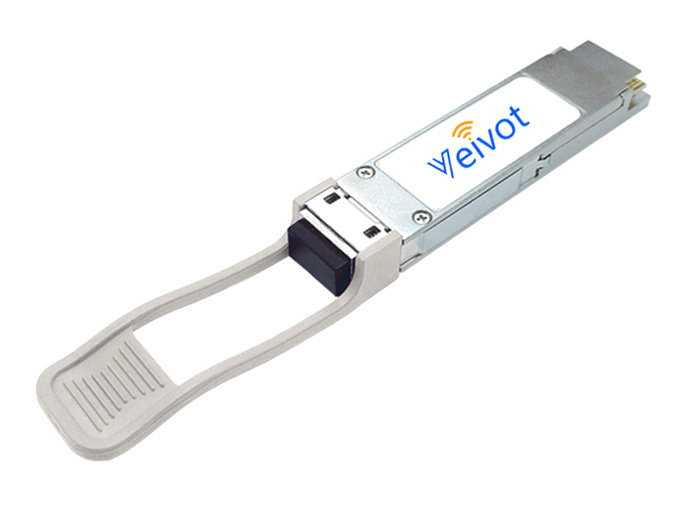

The Veivot optical transceiver module VV-QP28-ZR4 is a 4x25G single-mode fiber hot swappable optical transceiver module designed for 80 km forward error correction optical communication applications. This design complies with IEEE 802.3-2012 Article 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard 100GbASE-ZR4. This module converts four input channels (ch) of 25.78Gbps into electrical data of four optical signals and multiplexes them into a single channel for 100Gb/s optical transmission.

This product is designed based on the QSFP28 Multi Source Protocol (MSA) and features shape factors, optical/electrical connections, and digital diagnostic interfaces. Its design can meet the most demanding external operating conditions, including temperature, humidity, and EMI interference.

Features

• Up to 25.78Gbps data links per channel

• Compliant with the QSFP28 MSA Technical Specifications

• Supports 103.1Gb/s aggregate bit rate

• Capable of over 80km transmission on SMF without FEC

• Duplex LC optical connector

• Compliant with 100G Ethernet IEEE802.3ba and 100GBASE-ZR4 Standard

• Single +3.3V power supply operating

• 4x25Gb/s EML-based LAN-WDM transmitter and SOA+PIN receiver

• 4 channels 1295.56, 1300.05, 1304.58 and 1309.14 nm

• Power dissipation < 4.5W

• Temperature range 0°C to 70°C

• RoHS Compliant

• Digital Diagnostic Monitor(DDM)

Applications

• 100GBase-ZR4 Ethernet

• Switches and Routers

• Data centers

Optical Characteristics

Ordering Information
