Description

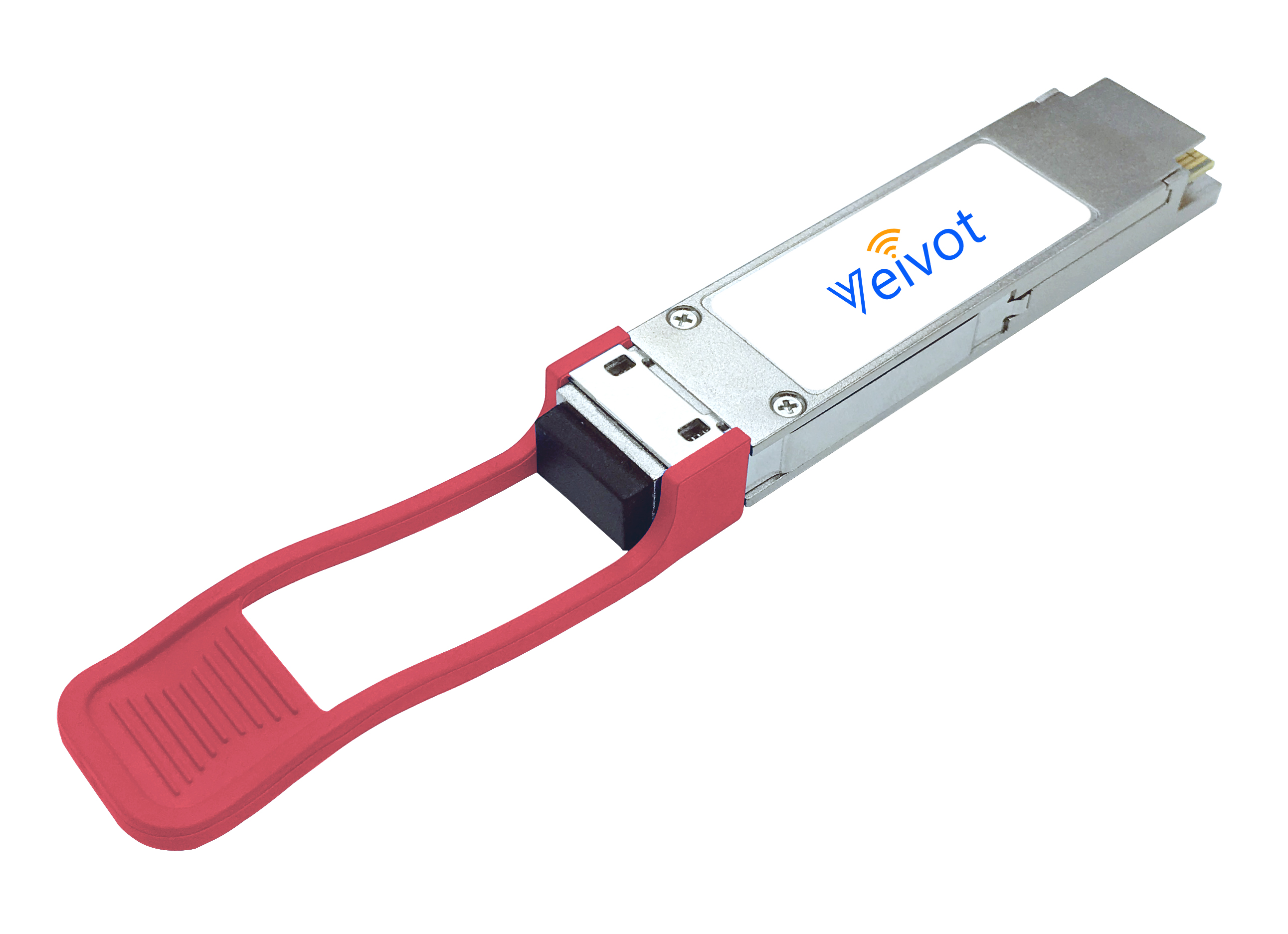

The Veivot 40G QSFP+ optical transceiver module VV-QP-ER4 is a transceiver module designed specifically for 40km optical communication applications. This design complies with IEEE P802.3ba standard 40GBASE-ER4. This module converts 10Gb/s electrical data from four input channels (ch) into four CWDM optical signals and multiplexes them into one channel for 40Gb/s optical transmission. On the receiver side, the module demultiplexes the 40Gb/s input light into four CWDM channel signals and converts them into output electrical data for four channels.

Features

• 4 channels full-duplex transceiver module

• Up to 11.2Gbps data links per channel

• Aggregate bandwidth of > 40Gbps

• Capable of over 40km transmission on SMF

• Duplex LC optical connector

• Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard

• Single +3.3V power supply operating

• QSFP MSA compliant

• Built-in digital diagnostic functions

• Temperature range 0°C to 70°C

• RoHS Compliant Part

• Digital Diagnostic Monitor(DDM)

Applications

• 40GBase-ER4 Ethernet

• Switches and Routers

• Infiniband 4x SDR, DDR, QDR

• Data centers

• Metro network

Ordering Information
