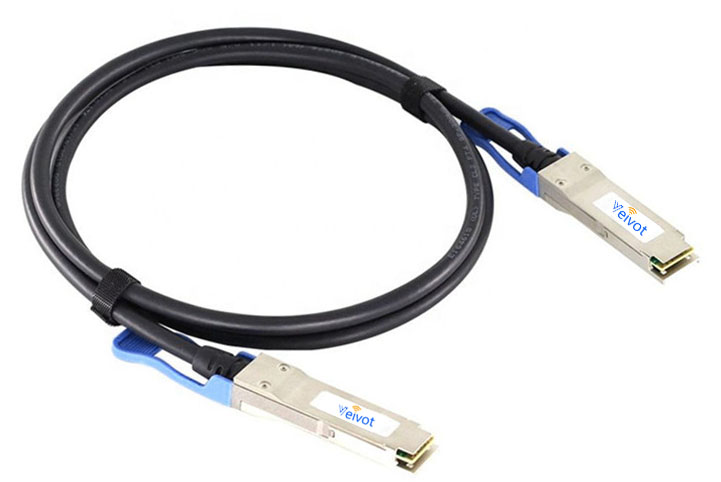

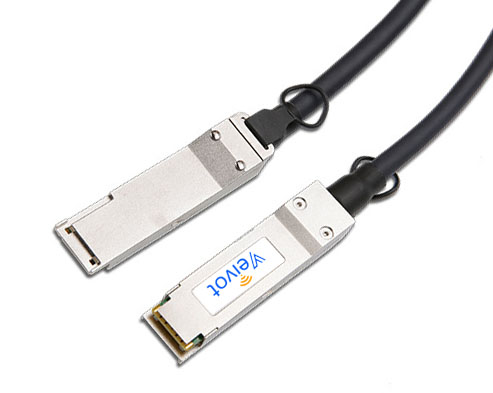

40Gbps QSFP+ to QSFP+ Passive Direct Attach Cable (DAC)
P/N: VV-QP-PCU-XXM
Description
The VV-QP-PCU-XXM is a high performance, cost effective I/O solutions for 40G LAN, HPC and SAN applications.
The QSFP+ passive copper cables are compliant with SFF-8436, QSFP+ MSA and IEEE P802.3ba 40GBASE-CR4.It is offer a low power consumption, short reach inter-connect applications. The cable each lane is capable of transmitting data at rates up to 10G b/s, providing an aggregated rate of 40Gb/s.
Features
4 channels full-duplex DAC
QSFP+ Small Form Factor Compliant to SFF-8436
Maximum aggregate data rate: 40 Gb/s(4 x 10Gb/s)
Single +3.3V power supply operating
Temperature range 0°C to 70°C
I2C based two-wire serial interface
RoHS Compliant Part
Cable length up to 5M at most
Applications
40GBase Ethernet
Infiniband 4x SDR, DDR, QDR
Data centers
SAS, Servers, Hubs, Switches, Routers
Absolute Maximum Ratings
Parameter | Symbol | Min. | Max. | Unit |
Supply Voltage | VCC | -0.5 | 4 | V |
Storage Temperature | TS | -40 | 85 | °C |
Operating Humidity | - | 5 | 85 | % |
Operating Case Temperature | TC | 0 | 70 | °C |
Recommended Operating Conditions
Parameter | Symbol | Min. | Typical | Max. | Unit |
Operating Case Temperature | TC | 0 | 70 | °C | |
Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V |
Power Dissipation | PD | 0.5 | W |
Ordering Information
Part No. | Product Description |
VV-QP-PCU-XXM | 40GBase-CR4 QSFP+ to QSFP+ DAC 1~5M MMF |
XX stands for 0.5-5m(unit) | |
