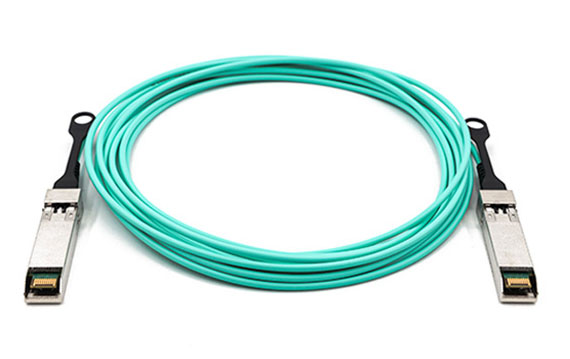

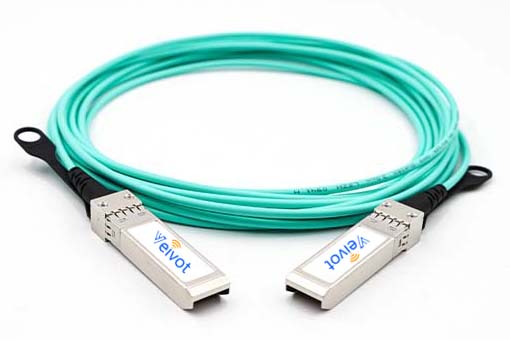

10Gbps SFP+ Active Optical Cable(AOC)
P/N: VV-SP-AOC-XXM
Description
The VV-SP-AOC-XXM is Copper SFP+ Cable assemblies are high-performance, cost effective I/O solutions for 10 GB Ethernet and 10G Fiber Channel applications.
10Gbps solution to 10G Ethernet, and datacenter. The integrated cable transmits 10Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and light weight.
Features
Support 1G/10G data links
Hot-pluggable SFP+ footprint
850nm VCSEL and PIN receiver
Compliant with SFP+ MSA and SFF-8472
Single +3.3V power supply operating
Temperature range 0°C to 70°C
RoHS Compliant
Small Bend Radius
Cabel length up to 100M OM2/OM3 MMF
Applications
1G/10G Ethernet
Switch / Router / HBA
Data Center network
Servers and storage
Optical and Electrical Characteristics
Parameter | Symbol | Min. | Typical | Max. | Unit |
Transmitter | |||||
Centre Wavelength | λc | 840 | 850 | 860 | nm |
Spectral Width (RMS) | σ | 0.5 | nm | ||
Average Output Power | Pout | -5.0 | -1.0 | dBm | |
Extinction Ratio | ER | 3.5 | dB | ||
Average Launch Power of Off Transmitter | -30 | dBm | |||
Input Differential Impedance | Zin | 90 | 100 | 110 | Ω |
Data Input Swing Differential | VIN | 200 | 700 | mV | |
Tx-Dis Disable | Vd | 2.0 | Vcc | V | |
Tx-Dis Enable | Ven | 0 | 0.8 | V | |
Receiver | |||||
Centre Wavelength | λc | 840 | 850 | 860 | nm |
Receiver Sensitivity | PIN | -13 | dBm | ||
Receiver Overload | Pmax | 0.5 | dBm | ||
LOS De-Assert | LOSD | -15.0 | dBm | ||
LOS Assert | LOSA | -30 | dBm | ||
LOS Hysteresis | 0.5 | dB | |||
Data Output Swing Differential | Vout | 300 | 800 | mV | |
Rx-Los Fault | Vlf | 2.0 | VccHOST | V | |
Rx-Los Normal | Vln | 0 | 0+0.8 | V | |
Output rise and fall time | Tr, Tf | 28 | ps | ||
Ordering Information
Part No. | Product Description |
VV-SP-AOC-XXM | 10GBase-AOC SFP+ Active Optical Cable XX(meter) |
XX stands for 0.5, 1, 2, 3, 4, 5, 6, 7...100m(unit) | |
