Description

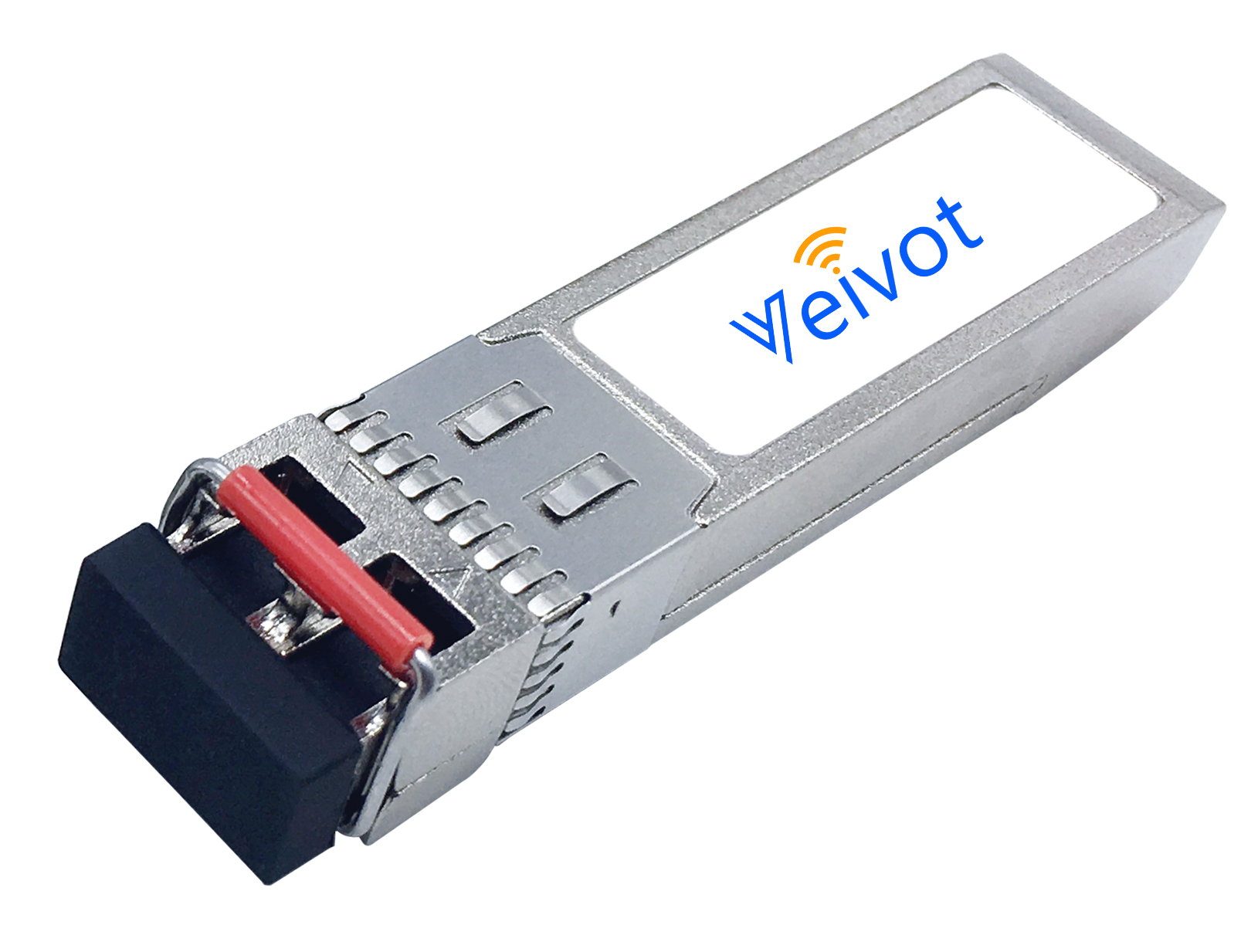

The Veivot SFP+ Optical Transceiver is a 10Gbps enhanced small form factor pluggable SFP+ transceiver compatible with 10GBASE Ethernet and 10G Fiber Channel 1200-SM-LL-L. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Features
Support 10.3Gbps bit rates
16dB(PB) with 9/125µm 40km SMF transmission
DWDM C-Band Waves EML laser and PIN photodiode
Compliant with SFP+ MSA and SFF-8472 with Duplex LC receptacle
Hot-pluggable SFP+ footprint
Single 3.3V power supply
Operating temperature: 0℃ to +70℃
RoHS Compliant
Digital Diagnostic Monitor(DDM)
Applications
10Gbps Optical systems
10G Fiber Channel
DWDM Networks
Other Optical links
Key Parameters
Parameter | Symbol | Min. | Typical | Max. | Unit |
Transmitter | |||||
Centre Wavelength | λc | X-100 | X | X+100 | nm |
Centre Wavelength Spacing | 0.8 | nm | |||
Spectral Width (-20dB) | σ | 1 | nm | ||
Average Output Power | Pout | 0 | 5 | dBm | |
Extinction Ratio | ER | 8.2 | dB | ||
Transmitter Dispersion Penalty | TDP | 3.0 | dB | ||
Relative Intensity Noise | Rin | -128 | dB/Hz | ||
Receiver | |||||
Centre Wavelength | λc | 1480 | 1580 | nm | |
Receiver Sensitivity | PIN | -16 | dBm | ||
Receiver Overload | Pmax | 3 | dBm | ||
LOS De-Assert | LOSD | -18 | dBm | ||
LOS Assert | LOSA | -27 | dBm | ||
LOS Hysteresis | 0.5 | dB | |||
Receiver Reflectance | Rrx | -12 | dB | ||
Ordering Information
Part No. | Product Description |
VV-SP-DW-40-XX | 10Gbps SFP+ 50GHz/100GHz DWDM C-Band SM 40km |
XX standards for Channels, e.g. 13=C13, 57=C57.
