Fiber Type: G652D, G657A1, G657A2, OM1, OM2, OM3, OM4, OM5
Length: 100-2000M
Description

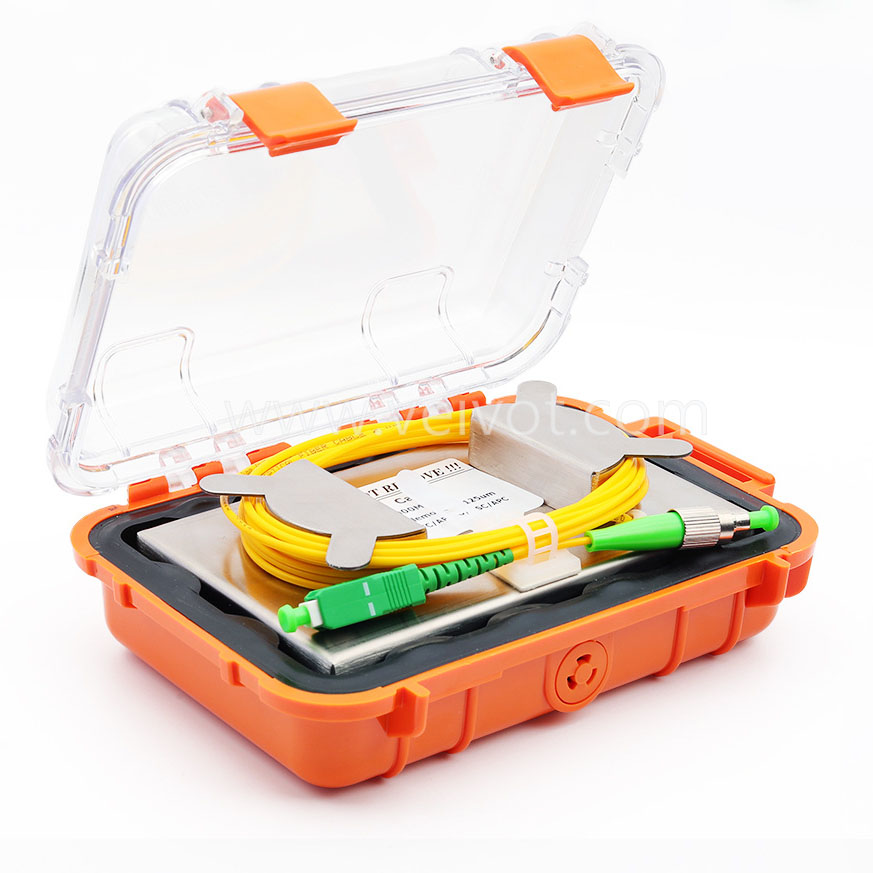

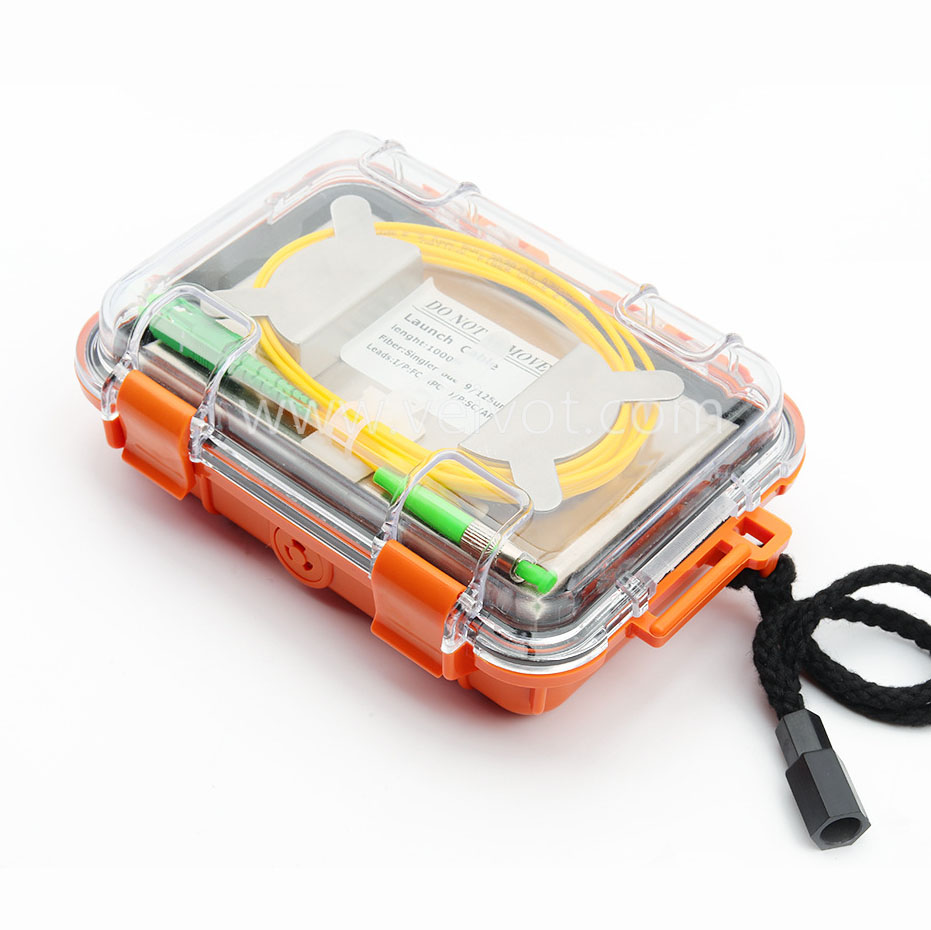

OTDR Launch cable is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in different configurations and fiber lengths.
Complied with or exceeds Standard
Fiber Type: G652D, G657A1, G657A2, OM1, OM2, OM3, OM4, OM5
Length: 100-2000M
Telcordia (formerly Bellcore) GR-326-CORE
RoHS Compliant Directive 2011/65/EU
Specification
Mechanical & Environmental Characteristics | |
Dimension | 16.5*11.5*5cm |
Weight | 0.58kg |
Packaging | Rugged, hard-shell transit case |
Storage Temperature | -40 ~ +85℃ |
Fiber & Connector Characteristics | |
Fiber Types | G652D, G657A, OM1, OM2, OM3, OM4 |
Fiber Length (m) | 100 up to 2000 (max) |
Lead Length | 2/3 Meters, 3mm buffer |
Typical Loss | <0.5dB @ 1310 for 1000 meters |
Connector Type | SC/LC/FC/ST |
Polish | PC, UPC, APC |
Return Loss* | UPC ≥50dB, APC ≥60dB, PC ≥35dB |
Repeatability (dB) | ≤0.2 (1000 times) |
Exchangeability (dB) | ≤0.2 |
