Indoor FTTH Drop Cable GJX(F)H 2x3mm 1-4C

Indoor Flat FTTH Drop Cable support 1 to 4 fiber of 250µm, two FRP (Fiber Reinforced Plastic), KFRP (Kevlar Fibers Reinforced Polymer) or Steel Wire strength members and a Low smoke zero halogen (LSZH) sheath with a nominal size of 2x3mm.

Consult

Product details

Description

Features

Fiber counts: 1 ~ 4 fibers
Fiber type: Singlemode ITU-T G.657A1 or ITU-T G.657A2
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Simple structure, light weight and high practicability;
Low smoke, zero halogen and flame retardant sheath.

Application

Adopted to outdoor distribution;
Suitable for aerial, pipeline laying method
As FTTH cable,for outdoor horizontal and vertical cabling

Optical Fiber Characteristics

Standard ITU-T G.657A

Items		Unit	Specification
			Before cabled	After cabled
Mode Field Diameter	1310nm	μm	8.6±0.4
	1550nm	μm	9.8±0.5
Cladding Diameter		μm	125.0±0.7
Cladding Non-Circularity		%	≤0.8
Core-Cladding Concentricity Error		μm	≤0.6
Coating Diameter		μm	247±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		μm	<12.0
Cable Cutoff Wavelength		nm	λcc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.35	≤0.40
	1550nm	dB/km	≤0.21	≤0.30

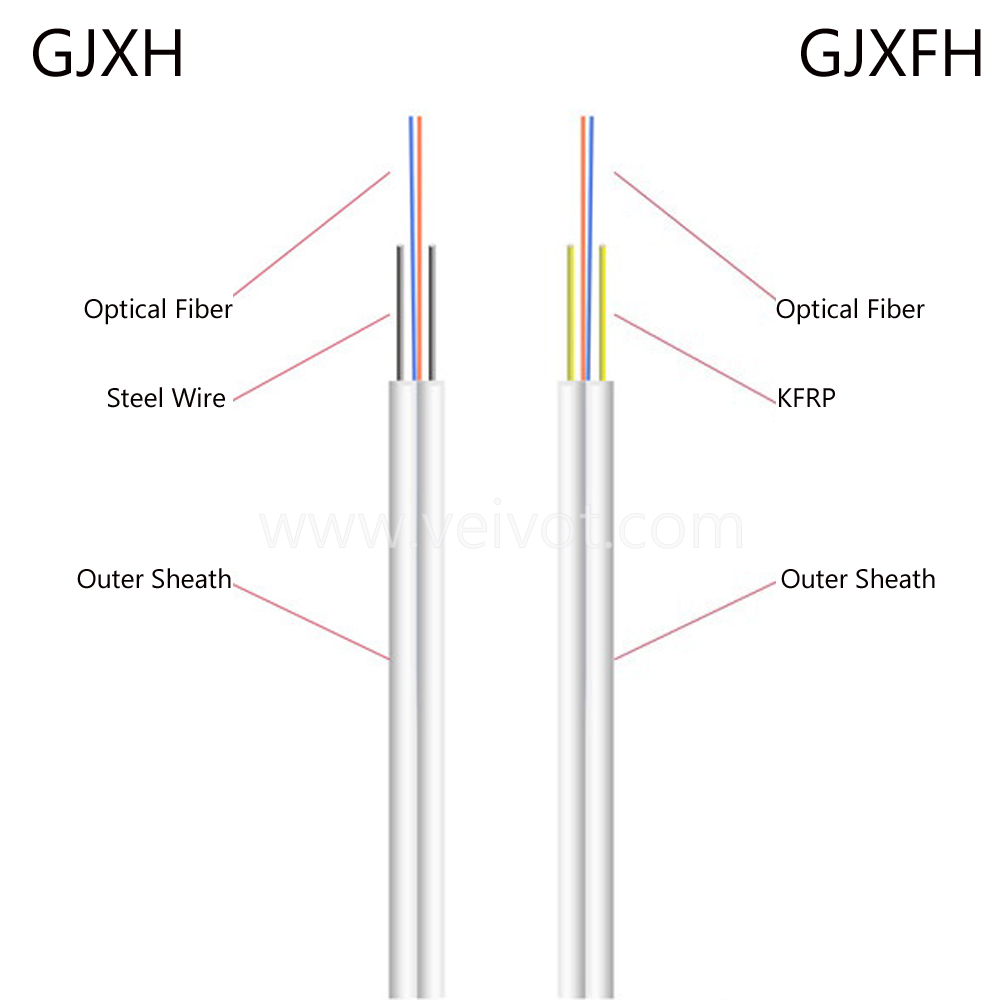

Structure parameters of optical cable

Item	Contents	Value
Strength member	Material	Steel Wire / FRP / KFRP
Strength member	Diameter	0.4 / 0.45 / 0.5mm*2
Outer sheath	Material	LSZH
Outer sheath	Color	Black / White / Grey

Mechanical & Environmental Performance

Cable type	Diameter (mm)	Weight (Kg/km)	Max.Tension (N)	Crush Resistance (N/100mm)	Min. Bending Radius (mm)		Storage temperature (℃)
			Long/Short Term	Long/Short Term	Dynamic	Static
GJXH 1-4F	2(±0.1)*3(±0.1)	10	40/80	500/1000	20D	10D	-20~+70℃
GJXFH 1-4F		9
