Description

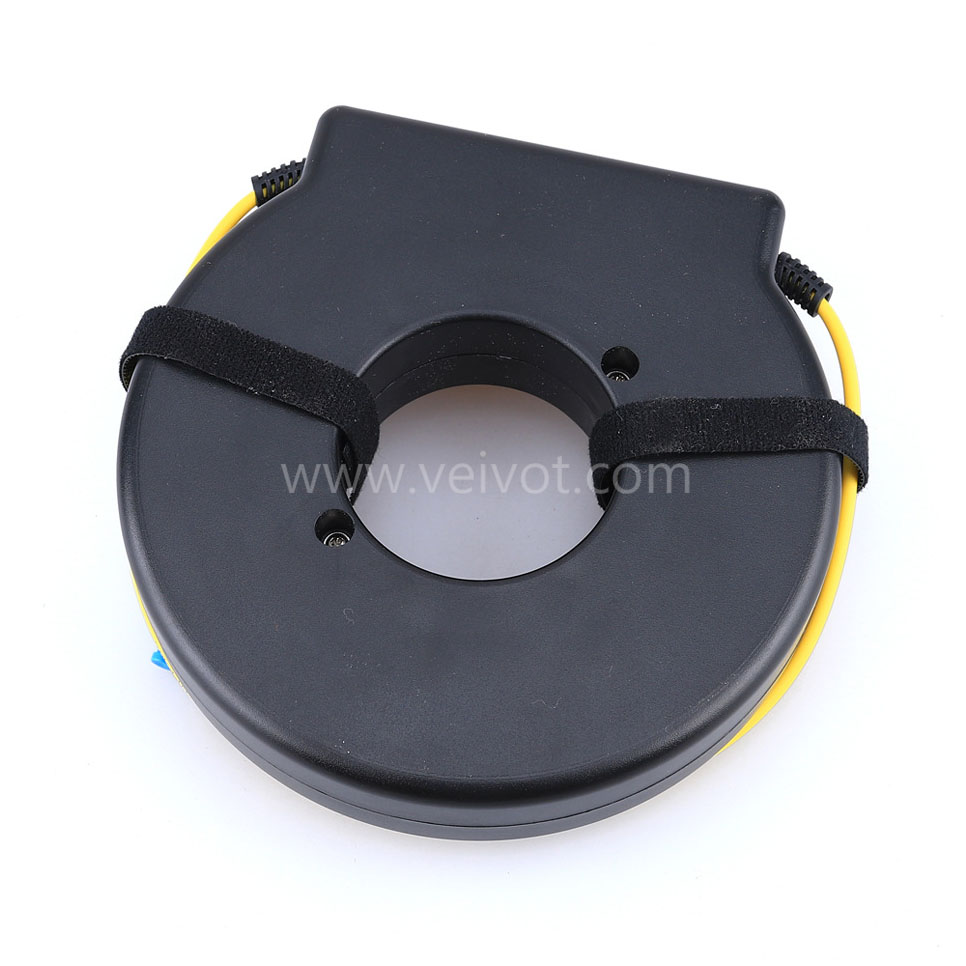

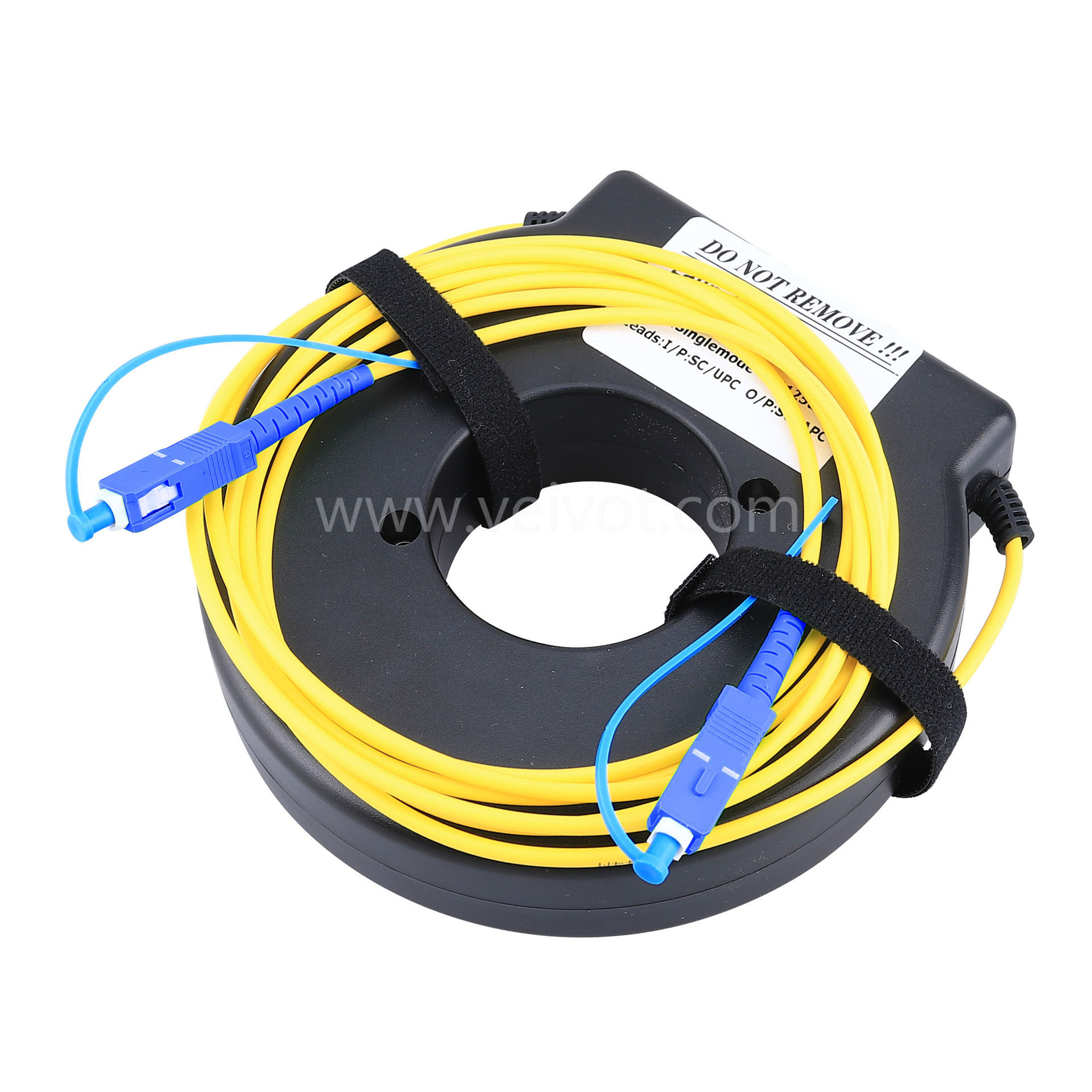

OTDR Launch cable is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in different configurations and fiber lengths.

Complied with or exceeds Standard

• Fiber Type: G652D, G657A1, G657A2, OM1, OM2, OM3, OM4, OM5

• Length: 100-1000M

• Telcordia (formerly Bellcore) GR-326-CORE

• RoHS Compliant Directive 2011/65/EU

Applications

• Use as OTDR launch/receive cable

• Test link loss with an OTDR

• Measure insertion loss and reflectance of near/far end connector

• Pulse suppressor for the first reflection at the beginning of a fiber

Features

• Standard boxes along with custom configurations for OTDR applications

• Compact and rugged packaging

• Portable for field use

• Prevents fiber damage and ensures accurate results

• Pulse suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration

• Compound latch for positive seal and easy opening with locking feature

• Water and dust prove allowing the unit to be taken into almost any environment

• Case can house up to 1,000 meters of fiber

• Auto Purge Valve for changes in altitude and temperature




Specification

Why you need OTDR launcha cable?
