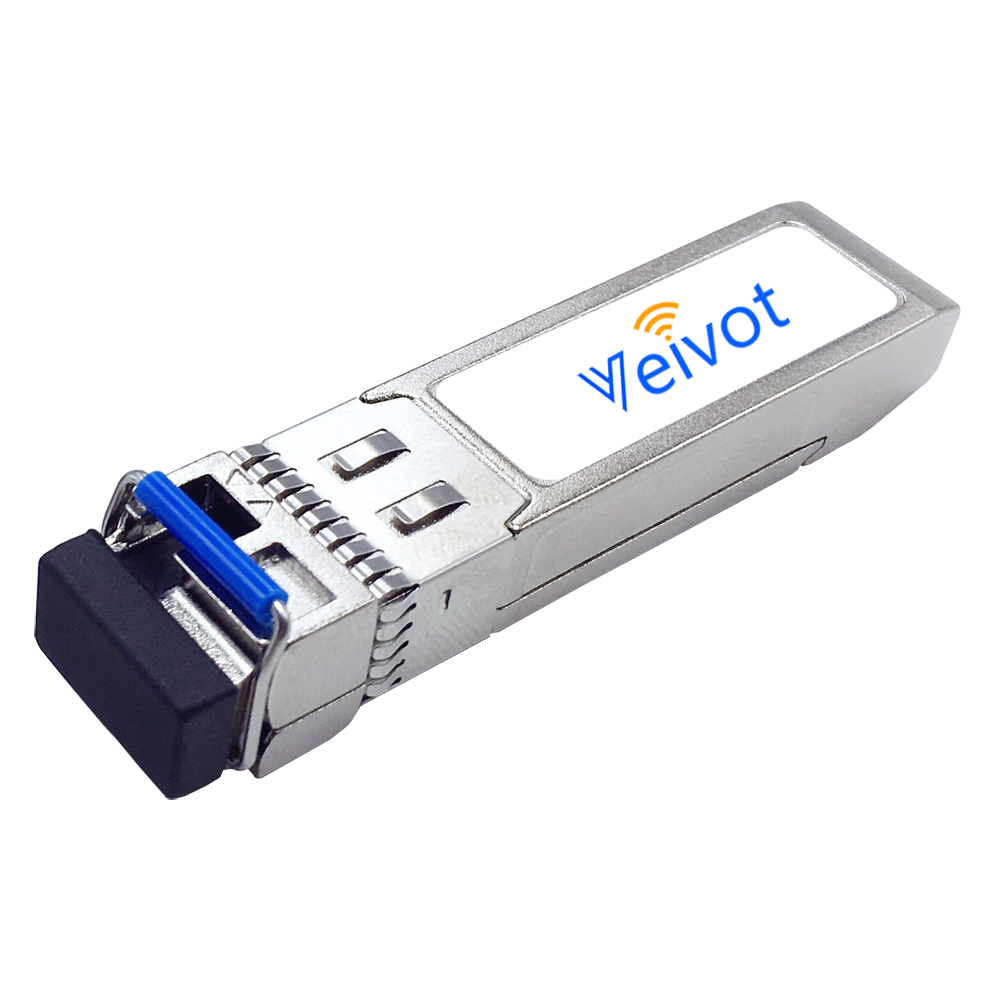

10GBASE SFP+ BIDI(1 core) WDM TX1270nm/RX1330nm 40KM Simplex LC DDM Optical Transceiver Module (SFP-10G-BX40U)
P/N: VV-SP-BX40U
Product Description
Veivot Technology 10G BIDI TX1270nm/RX1330nm SMF 40KM Simplex LC SFP+ Optical Transceiver is a 10Gbps enhanced small form factor pluggable SFP+ transceiver compatible with 10GBASE Ethernet and 10G Fiber Channel 1200-SM-LL-L. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
The commercial grade 0℃ to 70℃ is standard temperature. Industrial grade -40 to +85℃ temperature can be also made.
Veivot Technology 10G SFP+ Optical Transceivers are compatible with Cisco, Nokia, Ericsson,Huawei, Arista, AdTran, Ciena, Juniper, ZTE, H3C, Aruba, Mellanox, Radisys, Dell, Intel, ADVA, Brocade, Calix, Samsung, Mikrotik, Hisense, Ubiquiti, DASAN, ZHONE, Datto, Sophos, D-Link, TP-Link, Linksys, C-Data, V-solution, Hikivision , etc.
Product Features
Support 10.3Gbps bit rates
40km with 9/125µm SMF transmission
1270nm DFB laser and PIN photodiode, Up to 60km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with Simplex LC receptacle
Hot-pluggable SFP+ footprint
Single 3.3V power supply
Operating temperature: 0℃ to 70℃
RoHS Compliant
Digital Diagnostic Monitor compatible
Applications
10Gbps Optical systems
10GBASE-ER/EW 10G Ethernet
LTE systems
Other Optical links
Key Parameters
Parameter | Symbol | Min. | Typical | Max. | Unit |
Transmitter | |||||
Centre Wavelength | λc | 1260 | 1270 | 1280 | nm |
Spectral Width (-20dB) | σ | 1 | nm | ||
Average Output Power | Pout | -1 | 5 | dBm | |
Extinction Ratio | ER | 3.5 | dB | ||
Data Input Swing Differential | VIN | 180 | 850 | mV | |
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω |
Receiver | |||||
Centre Wavelength | λc | 1320 | 1330 | 1340 | nm |
Receiver Sensitivity | PIN | -16 | dBm | ||
Receiver Overload | Pmax | 3 | dBm | ||
LOS De-Assert | LOSD | -19 | dBm | ||
LOS Assert | LOSA | -24 | dBm | ||
LOS Hysteresis | 0.5 | dB | |||
Data Output Swing Differential | Vout | 300 | 900 | mV | |
LOS | High | 2.0 | Vcc | V | |
Low | 0.8 | V | |||
Ordering Information
Part No. | Product Description |
VV-SP-BX40U | 10GBASE SFP+ BIDI TX1270nm/RX1330nm 40KM Simplex LC DDM |
