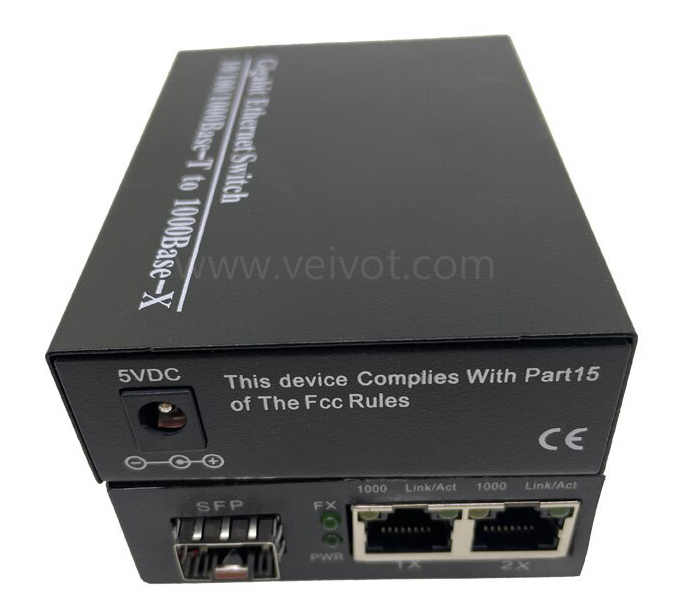

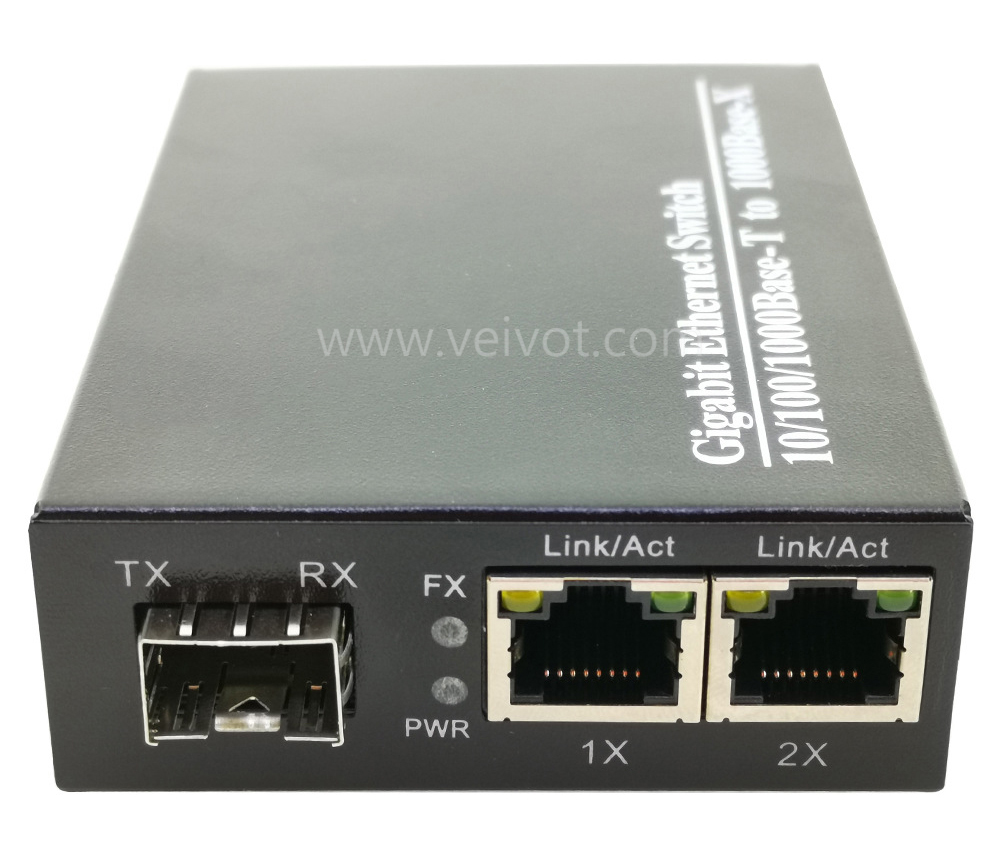

2-Port 10/100/1000Mbps-TX RJ45 to 1-Port 1GBASE-FX SFP Gigabit Ethernet Media Converter
Model No.: VV-MC1G-1SF2E
Description
The Gigabit Media Converter aims to convert 2x 10/100/1000BASE-T copper to 1x 1000BASE-X optical fiber. The VEIVOT Gigabit SFP Slot Media Converter (VV-MC1G-1SF2E) features 1 open Gigabit SFP slot, allowing you to choose the MSA compliant SFP Optical Transceiver Module that best meet fiber connection requirements. The VEIVOT 2-Port RJ45 1-Port SFP Gigabit Media Converter (VV-MC1G-1SF2E) allows you to choose from a variety of SFP optical transceiver modules that are suitable for your single mode or multimode cabling system and support transmission distances of up to 160km (99.4 miles), depending on the different SFP modules, Including multimode SFP, singlemode SFP, CWDM SFP, BiDi SFP, suitable for all fiber optic cabling systems. The Gigabit SFP media converters provide a flexible and cost-effective way to extend the distance of existing copper networks, the lifespan of non fiber optic devices, or the distance between two devices, allowing you to maximize the utilization and performance of traditional devices. Ethernet signals allow three types of network segments to be easily, efficiently, and cheaply connected.
This product provides an external power supply by default, which can be used as a standalone unit or inserted into the VEIVOT low-cost 14 slot media converter rack chassis (VV-MC14). It allows all the fiber media converters to be powered by a single internal power supply.
Features
2-port 10/100/1000Mbps-TX RJ45
1-port 1GBASE-FX SFP
Ethernet port speed and half/full duplex automatic protocol Auto-Negotiation
Support Auto MDI/MDI-X
SupporT Half/ Full duplex mode
Compatible with virtually any MSA-compliant transceiver
LED indicator monitoring network port status
RoHS compliant
Application
Intelligent Traffic Monitoring System (ITS)
High speed monitoring and remote communication system
Large enterprises, network security monitoring systems, multifunctional systems
Remote multimedia teaching, campus monitoring, remote broadcasting and television transmission system
Specification
Model Number | VV-MC1G-1SF2E |
Ethernet protocol | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX IEEE 802.3z 1000BASE-LX |
Ethernet port | 2-port 100/100/1000Mbps RJ45 |
Maximum Ethernet Port Transmission Distance | 100BASE-T: Cat5 100m 1000BASE-T: Cat5e/Cat6 100m |
Ethernet Cable Type | UTP Twisted Cable |
Fiber port | 1-port 1G SFP |
Fiber Type | Singlemode (9/125) / Multimode (50/125 and 62.5/125) Single Fiber / Dual Fiber |
Wavelength | 850nm / 1310nm / 1490nm / 1550nm |
Fiber Connector Type | SC / LC |
Maximum Fiber Port Transmission Distance | 160km (depends on the SFP module) |
Maximum Data Transfer Rate | 1Gbps |
Operation Mode | Full / Half duplex Auto-Negotiation |
Store and forward | Support |
Adaptive state | Support 10M/100M/1000M photoelectric adaptive |
Power Consumption | 3.5W |
Application method | Desktop or rack mount |
Usage environment | Operating temperature: 00℃～+50℃ Storage temperature: -40℃+70℃ Operating Humidity: 10% to 95% (non-condensing) Storage humidity: 5%～90% (non-condensing) |
Power Supply | DC: 5V 2A AC: 100-240V 50-60Hz |
Dimension | 94*70*26mm |
Weight | 0.5kg |
RoHS Compliant | Yes |
Workshop
Application
Ordering Information
Part No. | Product Description |
VV-MC1G-1SF2E | 2-Port 10/100/1000Mbps-TX (RJ45) to 1-Port 1GBase-FX (SFP) standalone media converter |
